Led 16 Channel DMX Decoder Constant Voltage DC12V-24V 3A*16CH RJ45/XLR Port

Categories LED DMX Decoder
Brand Name: vyeofar
Model Number: LT-916
Certification: CE/Rohs
Place of Origin: China
MOQ: 10
Price: negotiable
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000/month
Packaging Details: White box
Material: ABS
Color: White
Feature: 16 Channel DMX decoder
output: 3A*16CH DMX CV decoder
Voltage: DC 12-24V
Power: 1152W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

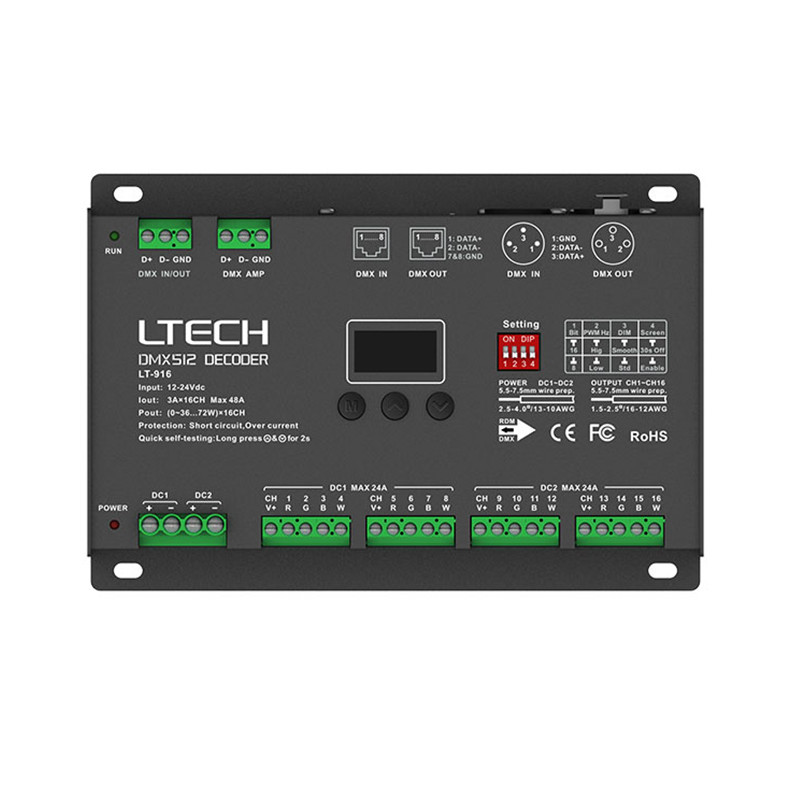

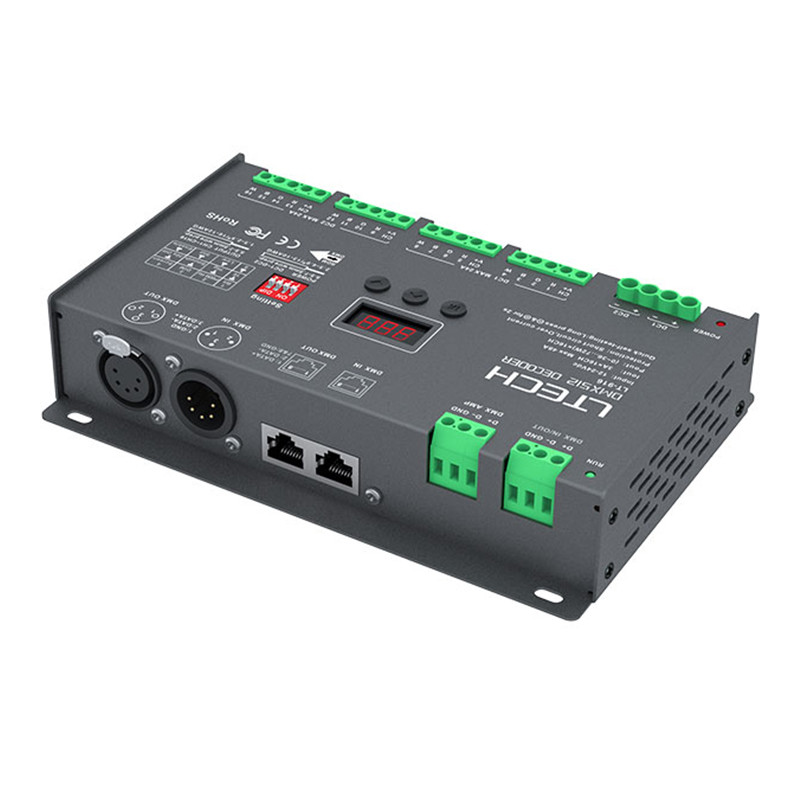

Led 16 Channel DMX Decoder Constant Voltage DC12V-24V 3A*16CH RJ45/XLR Port

Led 16 Channel DMX Decoder Constant Voltage DC12V-24V 3A*16CH RJ45/XLR Port​


Product Introduction:
1. Designed for Hi-power multiple channels application, 16 channels output, and up to 1152W output power.

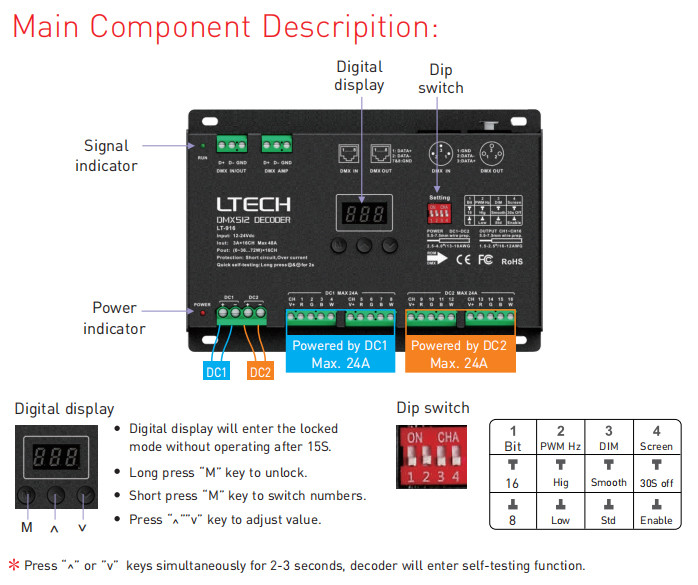

2. Easy operation with LED screen and the touch buttons.

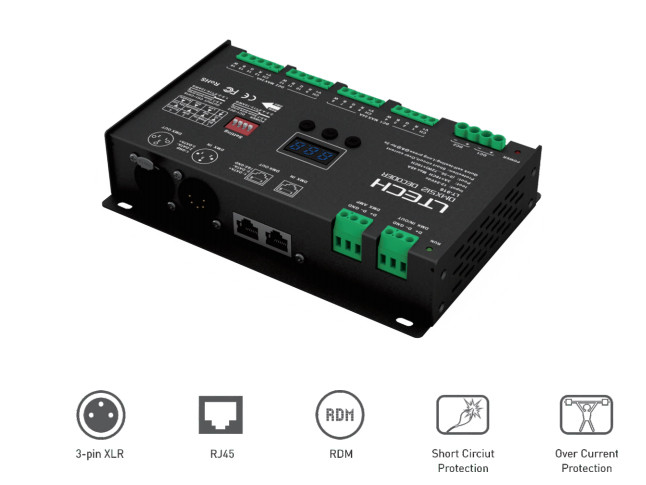

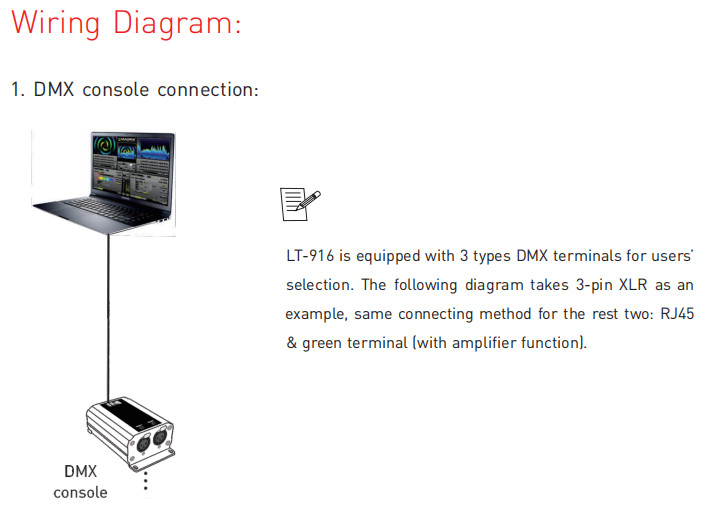

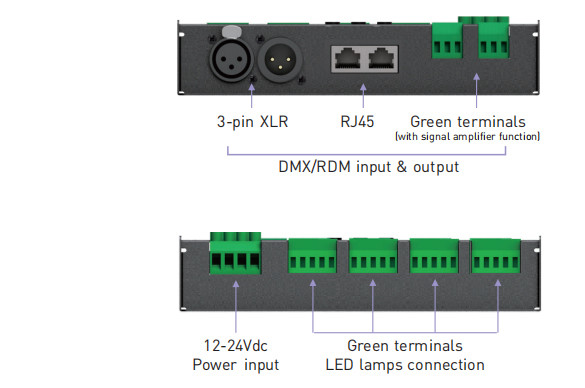

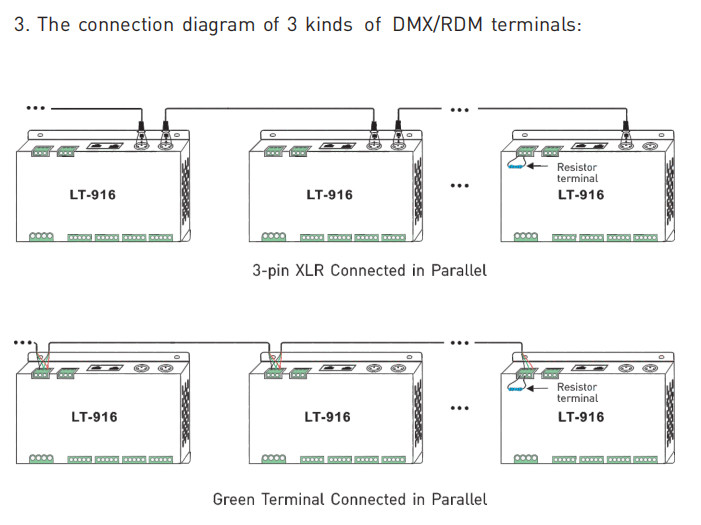

3. Support 4 kinds of DMX ports: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With short circuit protection and over current protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

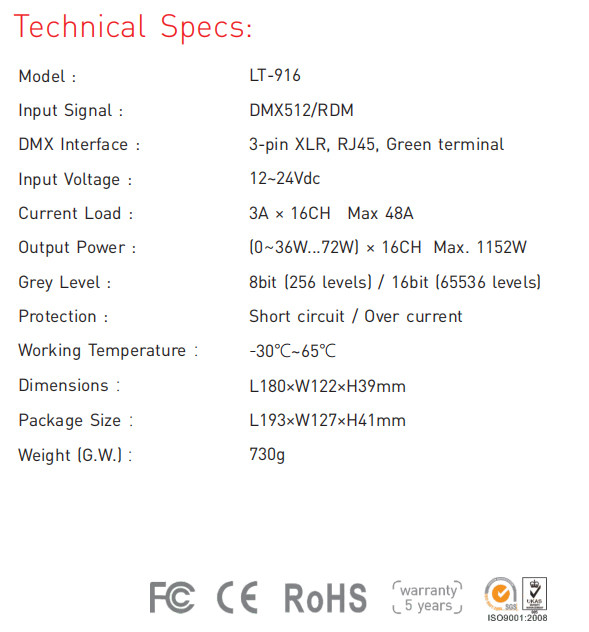

LT-916
Input signalDMX512/RDM
Input voltageDC12V-DC24V
Max load current3A x 16CH Max 48A
Max output power(0~36W...72W) x 16CH Max. 1152W
DMX512 socket5-pin XLR, RJ45, Green terminal
Control modeDimming/CT/RGB/RGBW
DIM Curve0.1-9.9
Grayscale level8bit(256 levels)/16bit(65536 levels)
Photoelectric IsolationYes
Working temperature-30-65C

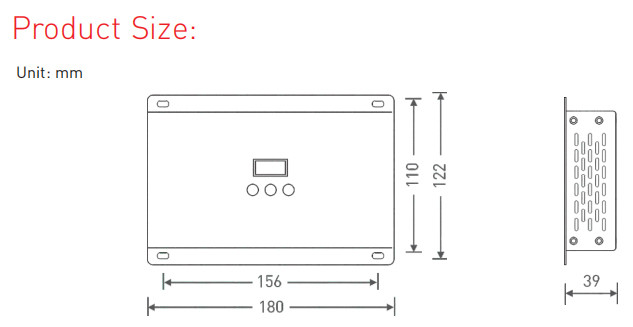

DimensionL180xW122xH39mm
Package SizeL193xW127xH41mm
Weight (G.W)730g
