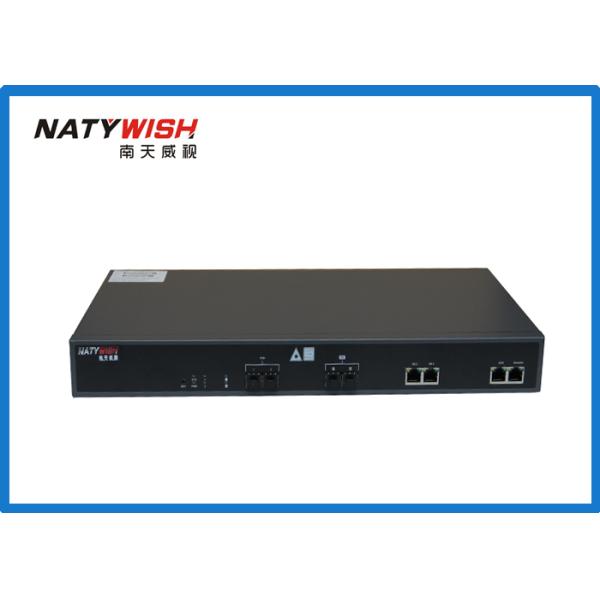

High Performance EPON SFP Optical Line Terminator 20km Transmission Distance

Splitting ratio :up to 1:64,

Backboard bandwidth 32G.

Uplink and downlink symmetric, transmission rate : 1Gbps,

PON port average optical power :+2dbm ~ +7dbm,

PON port Rx Sensitivity :no less than -30dBm,

Security: ONU authentication mechanism,

Network coverage radius: 20km.

IEEE802.3ah,

IEEE 802.1D, Spanning Tree,

IEEE 802.1Q, VLAN,

IEEE 802.1w, RSTP,

IEEE 802.3ad physical link static / dynamic aggregation(LACP),

Ethernet – II, Ethernet-SNAP,

IEEE 802.3ad VLAN Stacking( Q in Q).

Back pressure flow control (half duplex),

IEEE 802.3x flow control (full duplex),

IEEE p802.1p, CoS,

WRR, SP and FIFO queue scheduling algorithm,

Support 802.1P/DSCP priority Mark/Remark,

Be base on every ONU uplink and downlink rate-limiting function,

support DBA and SLA function.

Be base on port VLAN GVRP,

IEEE802.1Q VLAN relay QinQ,and support flexible QinQ.

IGMP v1/v2/v3,

IGMP Snooping,

Multicast VLAN, controlled multicast function.

Single direction link detection protocol,prevent survival tree loop.

Expansion slot, EPON optical module hot plug.

EAPS fast ring road protection function.

EPON optical road protection.

Limits the maximum number of users per port .

Port isolation.

Message storm control.

ACL access control function based on data stream.

PON port transmission data encryption

Configuration management

CLI, Web, SNMP, TELNET, cluster and other management methods.

RMON v1, 1,2,3,9 group SSHv1/v2,

Software upgrades and bootrom upgrades can be made by TFTP and FTP,

Local or server records system logs.

Chinese and English command order .

Ping, traceroute and other network-testing tools to debug and output.

Input voltage: AC100～240V, input frequency 47～63Hz ,

Support dual power supply input .

Input current : 1A/230V

Power : maximum 48W

Part number

Package list

NTW-E18002C

· EPON OLT

· Power cable

· Installation Accessories

· User’s Manual

· Warranty Card

· Qualification Certificate
