Custom Cut To Length Machine Steel Coil Slitting Line For Construction

Cut To Length Machines , Steel Coil Slitting Line For Construction

More information feel free to contact Rebecca

WhatsApp/Wechat : +86 15720370230

Our Cut To Length Machines , Steel Coil Slitting Line For Construction can work 0.3mm up to 3mm thickness . The strips can be used in small forming machines such as gutter and rige cap system .

Also used in light gauge steel villa and welding pipe industires .

Cut To Length Machines , Steel Coil Slitting Line For Construction Advantage

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.0.3-3mm 3mm galvanized steel coil slitting and recoiling line

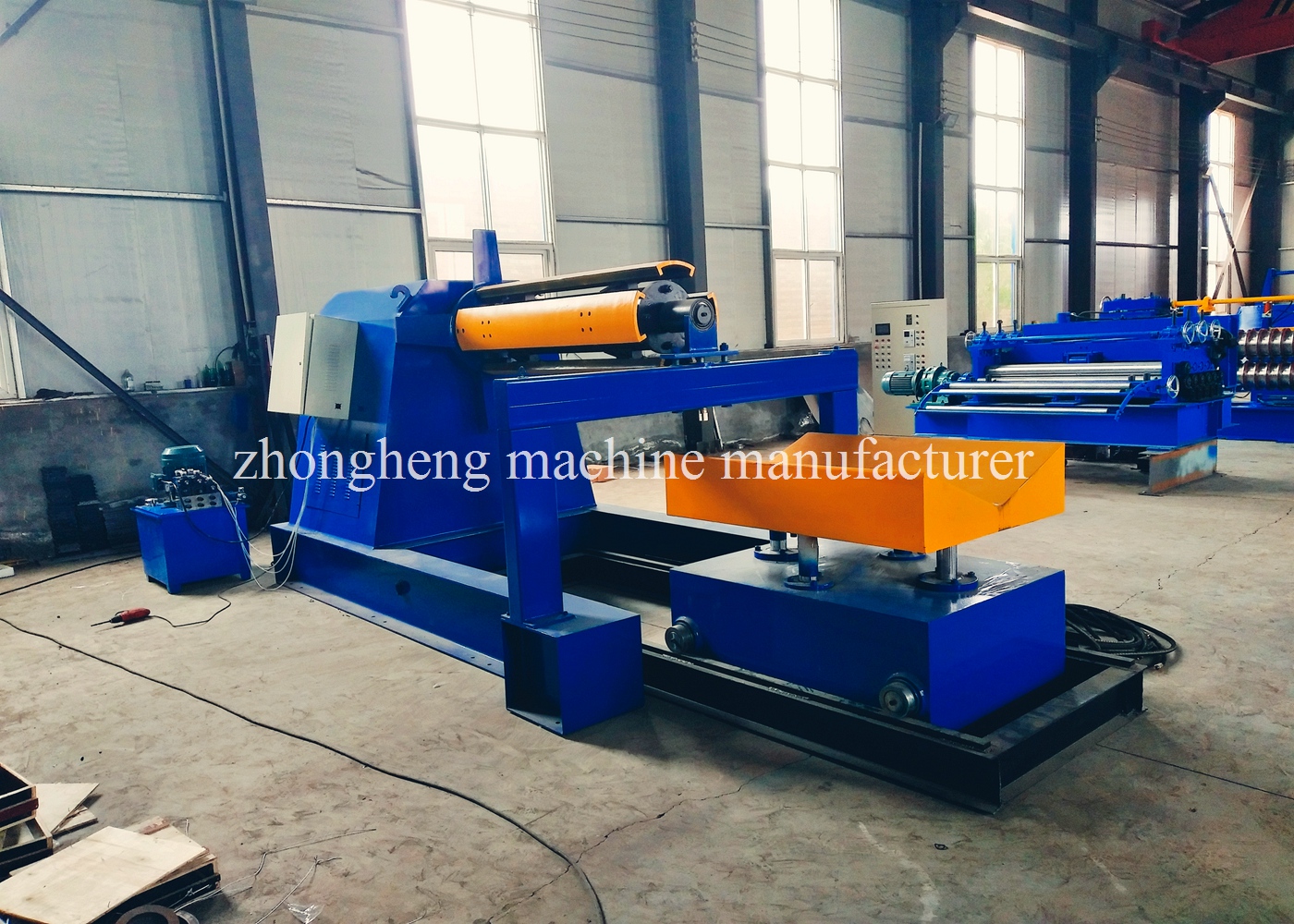

15T Hydraulic Uncoiler Function: Supporting coil and fix it , start motor to lead plate into leveling machine Motor AC 7.5 KW Mandrel diameter:φ508mm Manipulator: Hydraulic pressure drive. Braking: Pneumatic brake Capacity:15T
	Levelling and cutting device Leveling machine has 5 roller up and 6 rollers down Motor AC 7.5KW Crop shear: Drive by oil hydraulic cylinder, cut off the crude steel plat head for following processing.
Main Slitting Machine Adopts Japanese Circle cutter, can shear different Size strips . Main axis material 40CR, diameter Φ240mm Blade material: Cr12Mov Motor :18-22 KW Strips size adjustable
	separated steel strip, which form a certain tension before send to the recoiler, to complete winding operation
collect the steel strip after slitting closely Motor: 22KW

Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.	After-Sales Service * Training how to instal the machine, training how to operate the machine. * Engineers available to service machinery overseas.

Packing & Delivery

Size: 15000 (L) * 1850 (W) * 1510 (H) Weight: 20T 1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' container to shipping.
