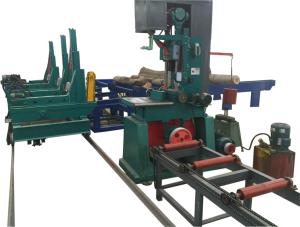

1200mm Wood Vertical Band Sawmill MJ3212 MJ3212B Wood Cutting Bandsaw

Categories	Vertical Band Sawmill
Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ3212B-Z5000,MJ3212B-Z3000,MJ3210-Z5000,MJ3310-Z3000
MOQ:	1 SET
Price:	US $3,000 - 50,000 / Set
Packaging Details:	container loading
Delivery Time:	within 25 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year
Name:	Vertical band saw cutting machine
Usage:	wood logs or planks cutting
Max. sawing log diameter:	1200mm
Max. sawing log length:	6meters
Carriage moving forward/back:	frequency
Carriage moving right/left:	automatic
Log rotation:	Hydraulic chain roation
Capacity:	100-150m3/day

Contact Now

Add to Cart

Company Info.

Weifang Jiuyi Information technology co., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Vertical band saw cutting machine price wood cutting sawmill machine for log diameter upto 1200mm

MJ3212 &MJ3212B Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.
In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

1.MJ3212 CNC vertical band sawmill with automatic log carriage

Technical data	MJ3212-ZD3000	MJ3212-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1200mm	1200mm
Maximum sawing log length	4meters	6meters
Main motor	37KW	37KW
Saw blade LWT	8600x150x1.25mm	8600x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	7500kgs	8000kgs

2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage

Technical data	MJ3212B-ZD3000	MJ3212B-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1500mm	1500mm
Maximum sawing log length	4meters	6meters
Main motor	45KW	45KW
Saw blade LWT	9200x150x1.25mm	9200x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	11000kgs	12000kgs

Platform Woodwork Band Saw

Technical parameters	MJ328		MJ329	MJ3210	MJ3310	MJ3212
Diameter of saw wheel		800mm	900mm	1000mm	1070mm	1250mm
Width of saw wheel		110mm	120mm	120mm	120mm	140mm
Rotational speed of saw wheel		750r·p·m	750r·p·m	750r·p·m	750r·p·m	750r·p·m
saw wheel, saw clip elevation		Manual	Manual	Automatic	Automatic	Automatic
Length of blade		5700mm	6400mm	6800mm	7400mm	8600mm
Max. diameter of log sawed		650mm	750mm	900mm	1000mm	1200mm
Main motor power		11kw	15kw	22kw	30kw	37kw
weight		1000kg	1300kg	1600kg	1800kg	3200kg
1,include Main motor power 2,include band saw blade 1 Article 3,include Iron-made safe protective casing 4,include Manual lubrication system 5,include Foundry work platform
