Portable Field Hospital: White Light Gauge Steel Truss Shelter For Emergency Response

Portable Field Hospital: White Light Gauge Steel Truss Shelter For Emergency Response

As crises and disasters continue to occur around the world, humanitarian aid organizations need fast and effective solutions for providing medical assistance. DEEPBLUE SMARTHOUSE has developed a Foldable house solution that is quickly assembled and can be used for emergencies, temporary housing, rental properties, and more.

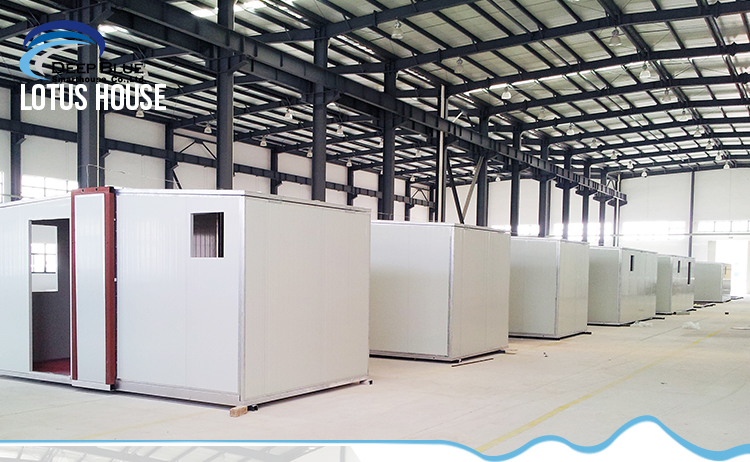

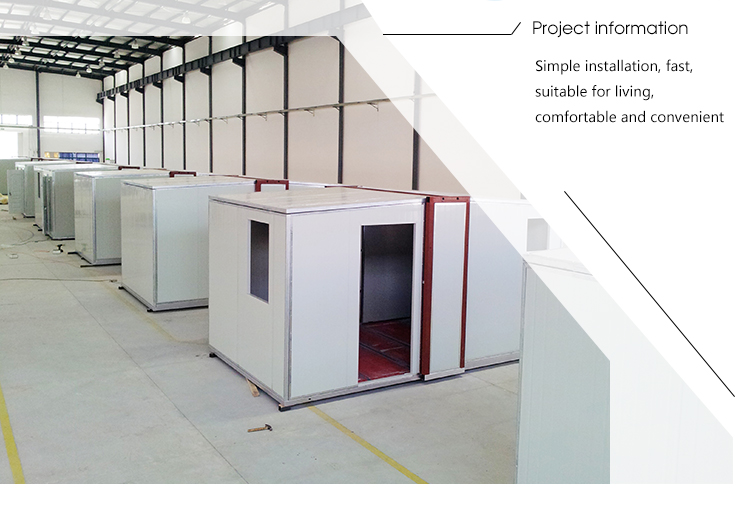

Lotus House is designed and manufactured using light steel frame house technology, making it easy to transport and install in a variety of settings. Its unique shape allows it to unfold and close like a lotus flower, providing a spacious living environment when deployed.

The rapid deployment capabilities of Lotus House make it an ideal emergency shelter solution for disaster relief efforts. It can be transported by various modes of transportation, making it versatile and convenient to use in different locations.

In addition to emergency situations, Lotus House is also suitable for other applications such as granny flats and rental properties. Its efficient design and construction make it an affordable and sustainable option for those looking for a quick and versatile housing solution.

DEEPBLUE SMARTHOUSE's commitment to innovation and quality is evident in the design and manufacture.

Quick Detail:

Description:

Roof structure: light gauge steel truss system

Main structure: light gauge steel framing system

Cladding: PU insulation steel sandwich panel

interior lining: fiber cement board

Insulation: high performance glass wool

Flooring: wooden or bamboo flooring

Ceiling: PVC ceiling panel.

Lighting: C.E , AS/NZS , UL standard light or others

Exterior Door: Aluminium sliding doors

Keyword: keyword

Applications:

Hotel, House, Office, Shop etc.

Specifications

15mins quickly portable emergency shelter :

The shelters can be used attached or detached from the trucks, which means only one truck is required to use several shelters at the same time.

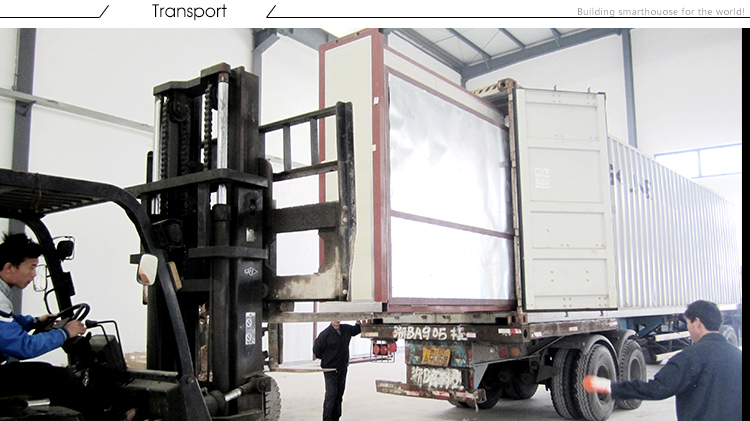

They’re made to be moved easily and quickly, and can be transported by ship, train, truck, air transport or helicopter.

DeepBlue Lotus house is a modular, multipurpose housing solution that will serve your needs and requirements in the best possible manner.

The working system

Dimension and Weight

• External Dimension (L*W*H):5790*4890*2520
• Internal Dimension(L*W*H): 5690*4790*2415
• Weight:2000kg per unit

Steel Framework

Material: Main frames are made from channel steel and RHS cube. Whole frames are well welded in the factory.

Surface working: all frames are painted Anti-rust paint.

Floor

Composition:

• External wainscot: 0.3mm steel sheet.
• insulation filling: EPS in a thickness of 30mm among steel transverse supports
• steam blockade: PE foil in a thickness of 80μm
• waterproof ply wood panel in a thickness of 15mm for dry area
• PVC floor covering in a thickness of 1.5mm.

Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/mk

Roof

Composition:

• Roofing is made of 0.35mm color steel sheet
• Roofing panel: 50mm EPS sandwich panel

Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k

Façade wall

Wall panels are made of 50mm with 10kg density EPS foam sandwich panel. All panels are fixed in factory and hinged with roofing panel. The thickness of steel for panel is 0.35mm outside and 0.35mm for inside.

Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K

Door

External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. Doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework

Windows

Windows are made of aluminum, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm.

Electricals Installation

Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V~, mounted on the top frame in upper corners of shorter side wall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame

Fittings:

• electric distribution box – 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
• single fluorescent lights 1x40W – 4 each
• flush-mounted sockets 220 V– 6each
• flush-mounted switches 220 V – 2each
