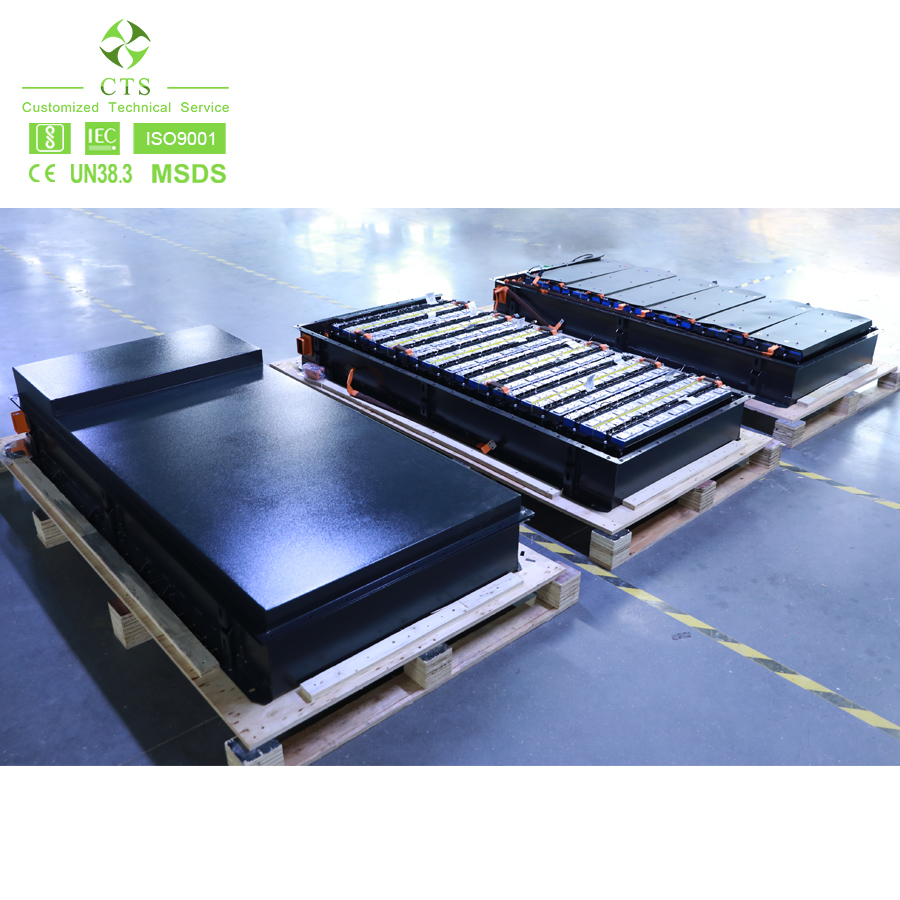

Name: 345V 600V 60kWh 120kWh High Voltage EV Battery Pack LiFePO4 NMC Lithium Ion for Electric Bus Truck Marine
Brand: Hunan CTS
Price: 6689 USD

Home > Solar Energy Products >

345V 600V 60kWh 120kWh High Voltage EV Battery Pack | LiFePO4 / NMC Lithium Ion for Electric Bus, Truck, Marine

Categories	OEM Battery Pack
Brand Name:	Hunan CTS
Model Number:	CTS-345210-1
Certification:	CE IEC R100 MSDS UN38.3
Place of Origin:	Hunan, China
MOQ:	2
Price:	6689~12660USD/pc
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 sets per month
Delivery Time:	~45 working days
Packaging Details:	Wooden box
Battery type:	LFP/NMC Lithium Battery
Battery voltage:	345V 600V (customizable)
Battry capacity:	60kWh 120kWh 150kWh (customizable)
BMS:	Advance EV BMS
Charge time:	1-2h(Faster can be custom)
Discharge:	3C~6C
Case:	Metal sheet case
Waterproof:	IP67
Thermal Management:	Liquid cooling and heating
Application:	EV car, Tractors, Trucks, Boats,bus, and other pure or hybrid vehicles
MOQ:	2

Contact Now

Add to Cart

Company Info.

Hunan CTS Technology Co,.ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

345V 600V 60kWh 120kWh High Voltage EV Battery Pack | LiFePO4 / NMC Lithium Ion for Electric Bus, Truck, Marine

345V 600V 60kWh 120kWh High Voltage EV Battery Pack | LiFePO4 / NMC Lithium Ion for Electric Bus, Truck, Marine

Parameters of 345v 210Ah Lifepo4 battery pack
No.	Items	Technical requirement	Note
1	Battery Type	Lifepo4	108S2P
2	Capacity(Ah)	210	@25℃
3	Volatge	345
4	Power(kWh)	72.45
5	Weight(kg)	603
6	Working Voltage range(DC V)	270-394.2
7	Continuous discharge current(A)	200	@EOL,@25℃
8	Peak discharge current(A)	600	For 30 seconds
9	Standard charge current(A)	100
10	Max charge current(A)	200
11	Dimension (L/W/H, mm)	1835880300mm
12	Model number	H-CA-321110-1

Core technologies

>>> Lightweight and scalability <<<

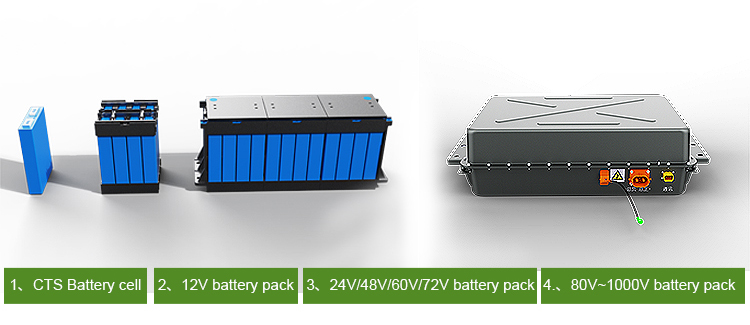

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density. CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

>>> BMS and Active Balance <<<

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

>>> Thermal Management and Simulation Design <<<

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

>>> Test and Verification <<<

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

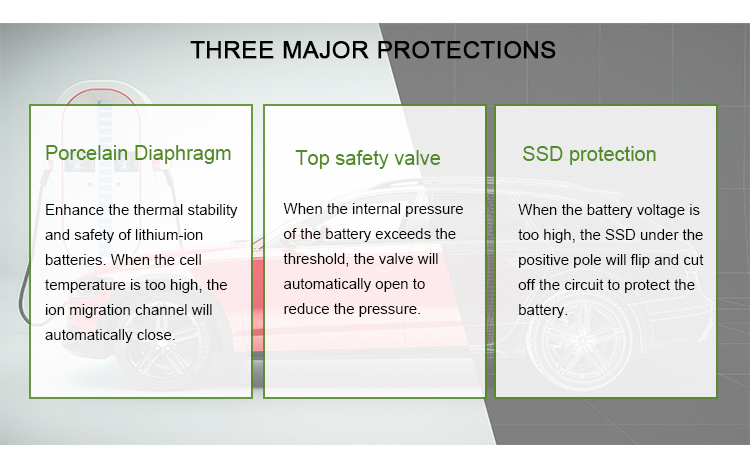

Product Safety

Application field

System Stability, high and low temperature resistance, long life, high cost performance,

high safty, ultra-wide application range.

Company Profile

*10+ years to sharpen a sword.
*We do only one thing, professional customization.
*30 + R&D team
*150 front-line production employees
*10 production lines
*20,000 square meter plant
*Capacity up to 800mwh

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.

Product testing and shipping

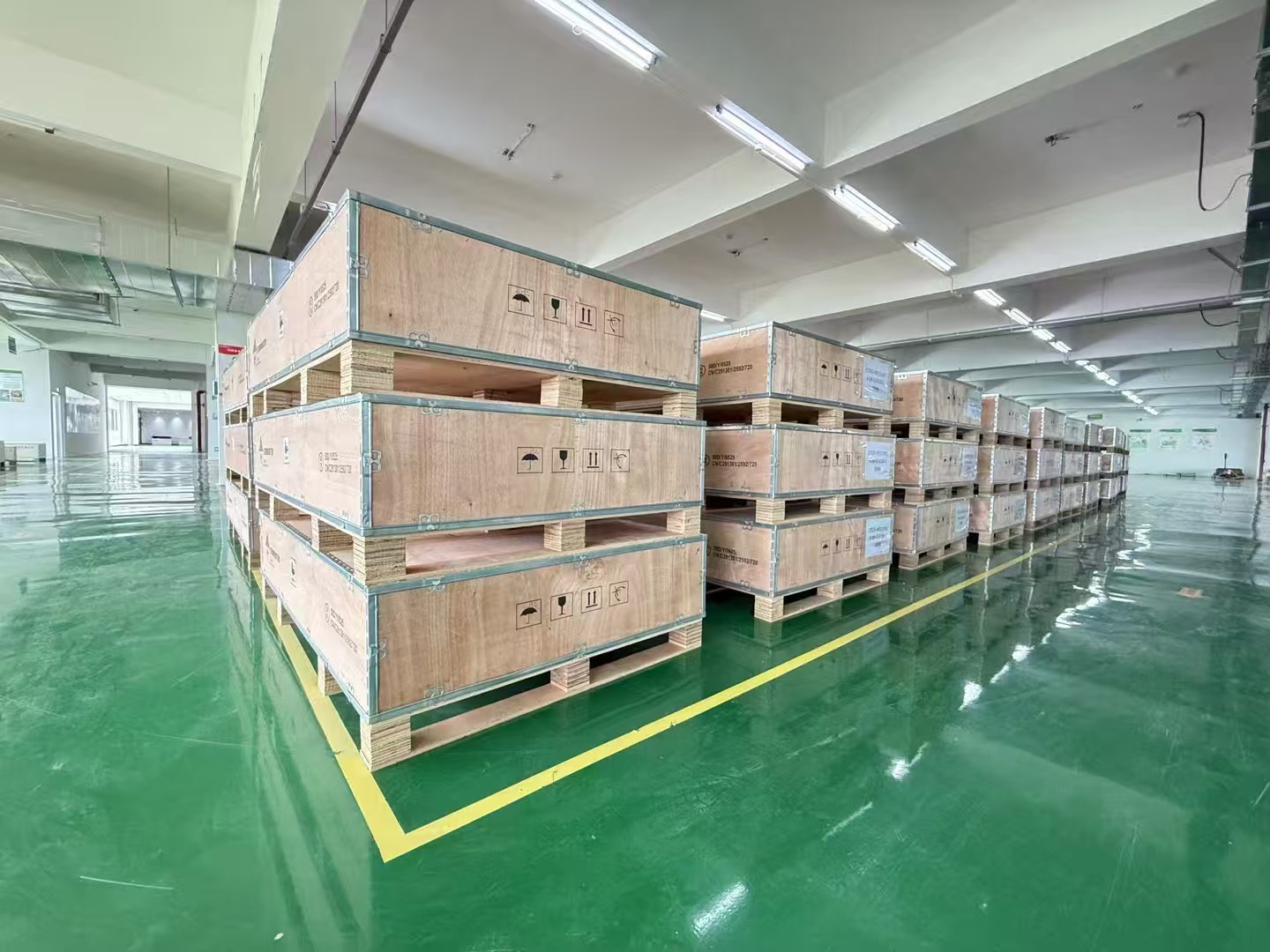

1. Customized plywood case and foam packaging, safe for different shipment

2. 100% full testing before shipment to ensure quality

3. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation

4. Customs on-site inspection to ensure the safety of the battery
