Dongfeng Mini Industrial Road Sweeper Cleaning Equipment Road
Sweeper Vacuum Road MachineRoad sweeper truck is a new type of high efficient cleaning
equipment which integrates road cleaning, garbage collection and
transportation. it is widely used in city streets, road, station,

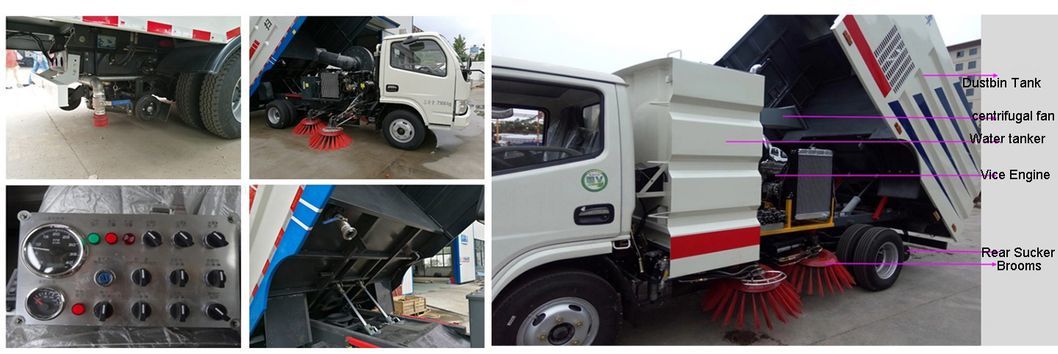

square etc. Road sweeper truck are mainly composed of chassis, box
(garbage box and water tank), sweep system, auxiliary engine, fan
system, cleaning system, suction system, dust system, hydraulic
system and electrical control system. The garbage boxes and water
tank produced by our company are made of stainless steel,the inside
of the garbage box has filter nets, which can effectively prevent
the leaves,plastic bags or other light objects to clog the tuyere.
Water tank inside is anticorrosion, antirust and antitoxic. Road
sweeper truck is equipped with 4 brushes, both sides of the brushes
can be working together, or unilateral work independently. The
operating system of road sweeping truck, rear dust absorption plate
absorb the rubbish on the ground. The height can be adjust
according to requirement.Road sweeper truck have an auxiliary
engine which can offer power for fan and hydraulic oil pump. Fan
supply suction power for the suction system, hydraulic oil pump
complete the lift of van box and switching of rear door. The nozzle
is installed at cleaning brushes and the rear and front of the
truck to drop dust by spraying water. The control box is in the
cab, all kinds of system electrical centralized to control, and
easy to operate.
1. Imported high quality hydraulic motor.
2.Stainless steel garbage box with anticorrosion.
3.The cleaning brushes can avoid automatically and adjust the
speed.
4. Both sides of the brushes can be working together, or unilateral
work independently.
Technical date
| 4X2 Dongfeng 5CBM Sweeper truck |
| Truck model | BJ1069VEJD6-AS |
| Total mass | 6495 | Cabin seat | 2 |
| Rated mass | 2045 | Vehicle size | 5780×2010×2450 |
| Curb weight | 4320 | Suction volume | 3.5m3 |
| A/D angle | 22/28 | F/R hang | 1085/1335 |
| Axles | 2 | Wheel base | 3360 |
| Axles loading | 2335/4160 | Max speed | 95 |
| Chassis information |
| Chassis model | BJ1069VEJD6-AS |
| Tyre | 6 | Tyre specification | 6.00-15 |
| Leaf spring quantity | 7/4+5 | Front track | 1530,1730 |
| Fuel type | Diesel | Rear track | 1425,1485,1590 |
| Engine model | BJ493ZLQ3
95HP | Displacement/power | 2771ml/68kw |
| Special equipment | Auxiliary engine models | JX493G |
| Auxiliary engine power | 57 KW 77.5Horsepower |
| Cleaning width | ≥3-3.3 m |
| Water tanker volume | 1 m3 |
| Garbage box volume | 4 m3 |
| Working speed | 3~15 km/h |
| Max working capacity | 50000 m2/h |
| Maximum grain size and quality | 100 mm±1.5kg |
| Cleaning rate | ≥96% |
| Auxiliary engine models | JX493G |
Chassis brand :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU
,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
Truck picture:
Application:

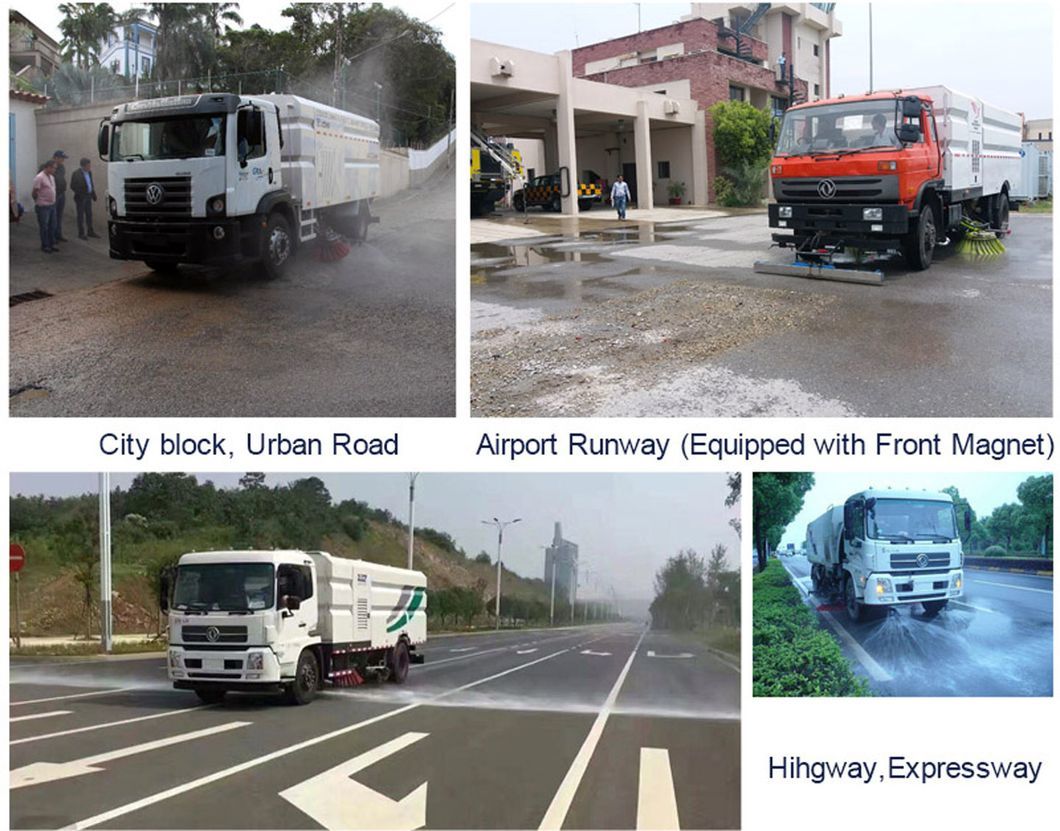

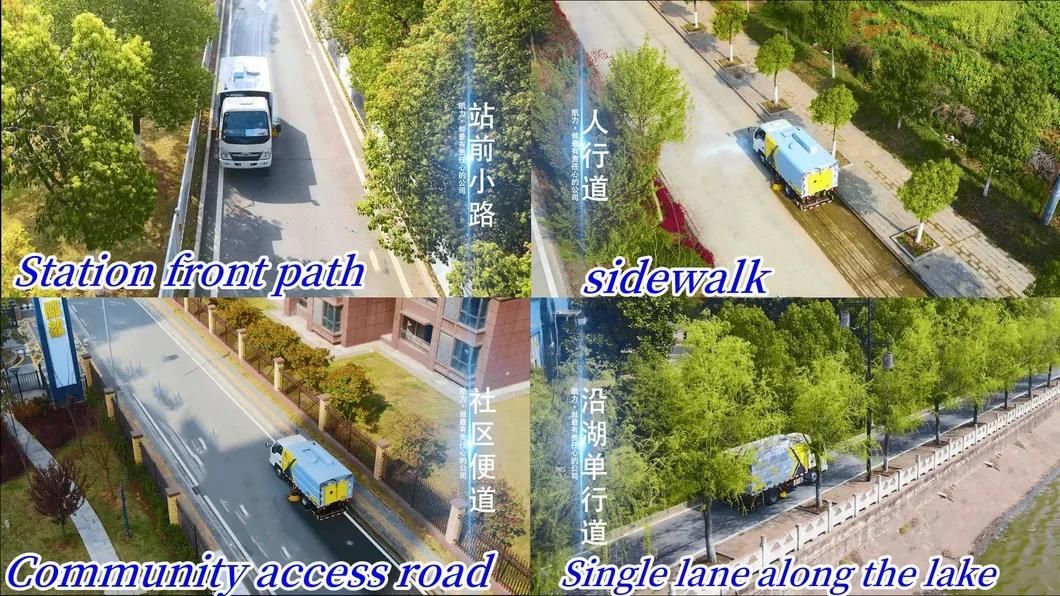

The Vacuum Sweeper Truck is mainly used for road dust cleaning and
suction. It is widely used in seaports, coal mining places, urban
roads, highways, airports, docks, Bridges, squares, residential
areas etc to make the places.
A Road Suction Truck can largely save labor cost and working time.
To use the Sweeper Truck one hour can match a person sweeping the
road all day!
Details :

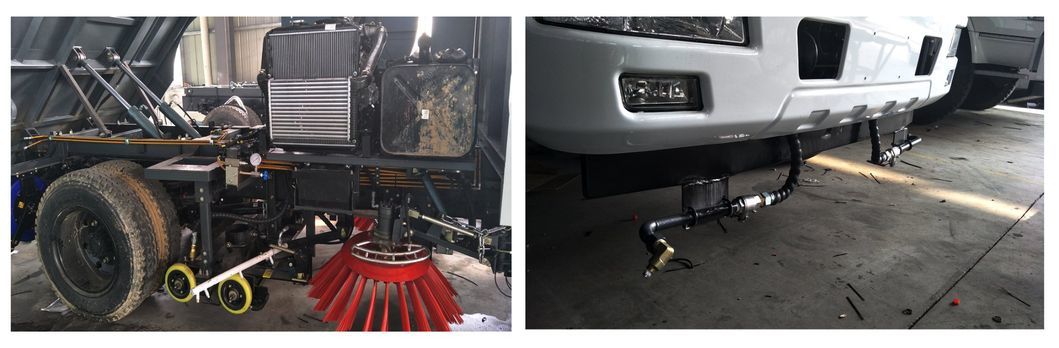

1. With auxiliary engine. It is with JMC 64KW vice engine and
supply enough power for the suction devices. The vice engine is
connected to the fan adopts automatic centrifugal clutch, can
guarantee the vice engine no-load start.
2. Vacuum device and suction nozzle arrangement adopts "wide of
suction nozzle by the main suction + left and right side suction
nozzle structure arrangement. The suction cup device has the
function of avoiding and resetting automatically when encountering
obstacles.This function can effectively solve the problem of easily
damaged dust collector. Full floating suction nozzle, with the
characteristics of large vacuum width, high vacuum efficiency, and
conducive to the adjustment and maintenance of suction nozzle.
3. The liner of dustbin adopts double structure, the inner layer is
all stainless steel;The high efficiency filtration of 4 sets of
polymer filter cylinders can effectively reduce the secondary
pollution caused by dust.
4. The front part of the truck is equipped with an automatic
emergency system of hand pump.The tail is equipped with an optional
water spray dust removal device;Open and close the garbage box door
and garbage dump can be operated in the driving room, which is
safe, convenient and reliable.
5. The filter cylinder of the vacuum truck can effectively separate
the dust absorbed by the vacuum truck so as to avoid secondary dust
pollution. There are two cleaning methods for the filter cylinder
of the vacuum truck, one is equipped with automatic pulsed dust
cleaning, and the other is disassembled and cleaning. Both are easy
to operate.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an
important branch of CLW group with registered capital 100,000,000
RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions
US Dollars).
