Categories | LED Truck |
---|---|
Place of Origin: | China |
Brand Name: | ISUZU |
Certification: | ISO9001, ISO14001, OHSAS18001, CCC |
Model Number: | CLW |
MOQ: | 1 |
Price: | 15000-35000 per unit |
Packaging Details: | Nude |
Delivery Time: | 65 working days after deposit |
Payment Terms: | 50% Deposit,Balance should be paid before ship out |
Supply Ability: | 500PCS/Week |
Product Name: | Mobile LED Advertising Truck |
Model NO.: | ISUZU |
Application: | Outdoor Activity |
Displacement: | 3.0L |
Intergrant: | Large Screen System |
Passenger Number: | 2 |
Fuel Type: | Diesel Oil |
LED Tube Core Type: | III |
Self-powered: | Self-powered |
LED Screen Type: | PH31.25 |
Power Supply Mode: | Own Generator-powered |
Brand: | I Suzu |
Wheel Number: | 2 |
Usage: | Outdoor Display |
Screen Type: | P3 P4 P5 P6 Full Color Display Screen |
Engine Model: | 4jb1cn |
Chassis Series: | I Suzu Glf |
Emission Standard: | Euro 4 or Euro 5 |
Steering Wheel: | 4*2 |
Tyre Quantity: | 6 |
Logo: | as Customer′s Request |
Floor: | Aluminum Patterned Floor |
Screen Featur: | Water Proof |
Truck Color: | Any Color |
Transport Package: | Naked or Waxed Before Shipment |
Specification: | 7300*2400*3500 mm |
Trademark: | i suzu |
Origin: | China |
HS Code: | 8601102000 |
Customization: | Available |
Warranty: | 12 Month |
Type: | LED Advertising Truck |
Shipping Cost: | Contact the supplier about freight and estimated delivery time. |
: | Support payments in USD |
Secure payments: | Every payment you make on Made-in-China.com is protected by the platform. |
Refund policy: | Claim a refund if your order doesn't ship, is missing, or arrives with product issues. |
Manufacture: | Chengli Special Automobile Co.,Ltd |
Company Info. |
Chengli Special Automobile Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |

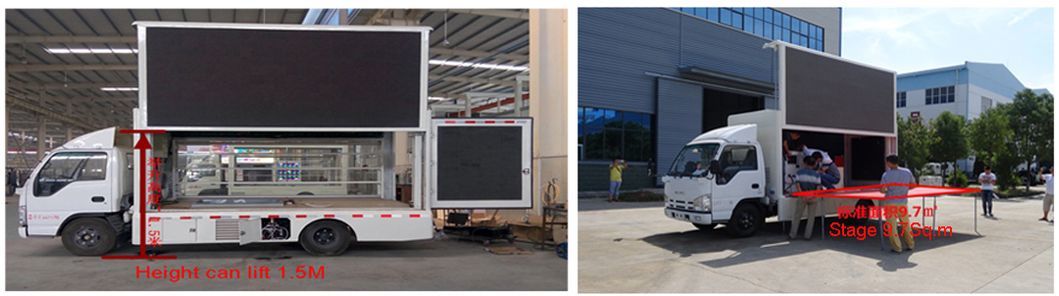

ISUZU Full Color Outdoor LED Display Advertising Van Mobile Cinema Billboard Truck
Chassis Specification | |||
Item No. | Parameters | ||
Drive model | 4x2, 6 Wheels | ||
Overall Dimension | 5995×2040×2990(mm) | ||
Chassis Brand | ISUZU | ||
Cabin | Single, Left Hand Driving, with ABS | ||
Engine | Model | 4JB1CN, 4 Cylinders | |
Power | 72KW/98HP | ||
Emission standard | EUROIV | ||
Displacement | 2771(ml) | ||
Fuel type | Diesel | ||
Gearbox | 5 Forward & 1 Reverse Gear | ||
Brake System | Pneumatic | ||
Steering Gear | Power Assistant | ||
Wheel Base | 3360(mm) | ||
Front/Rear Axle Loading | 2000/4800(Kg) | ||
Approach/Departure Angle | 24/16(°) | ||
Tire | 7.00-16 | ||
Max Driving Speed | 100(km/h) | ||
Upper Structure | |||
LED Screen | Right LED Screen | 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen | |
Left LED Screen | 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen | ||
Rear LED Screen | 1280mm(L)×1440mm(H)=1.84m2 P6 full-color Screen | ||
P6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long life | |||
Multi-media system | 1.1 unit computer 2.Sound system including 4 units waterproof loudspeaker 1 unit power amplifiers | ||
Generator Set | 1.OUMA brand, Silent diesel generator 2.220V domestic power supply | ||
Security system | Overheat protection | ||
Remarks | 1.Circulating ventilation and cooling systems 2.Aluminum patterned floor 3.Internal and external electrical distribution box | ||
Optional Items | 1.Mobile stage | ||
2.Scrolling light box |
![]() |
