Categories | Crate conveyor chains |
---|---|
Brand Name: | Zhiyue |
Model Number: | NH78 |
Certification: | ISO9001 |
Place of Origin: | China |
MOQ: | 100mtrs |
Price: | 0-30usd |
Payment Terms: | T/T LC DP WESTERNUNION MONERYGRAM |
Supply Ability: | 10000mtrs/M |
Delivery Time: | 5-30days |
Packaging Details: | 10ft/box |
Material: | POM |
Color: | white |
pin materials: | stainless steel |
pitch: | 66.3mm |
width: | 74.9mm |
Structure: | CASE CHAINS |
Pin Material: | Steel |
Load Capacity: | Heavy duty |
Chain Strength: | 10,000 lbs |
Applications: | for chain or belts conveyors |
Standard Or Nonstandard: | Standard |
Function: | Conveyor Chain |
Lubrication: | Self-lubricating |
Pin Diameter: | 0.25 inch |
Standard: | ANSI/ASME B29.1M |
Production Method: | machined and injected |
Chain Type: | Double pitch |
Chain Speed: | 10-20 feet per minute |
Company Info. |
CHINA ZHIYUE MACHINERY CO.,LTD |
View Contact Details |
Product List |

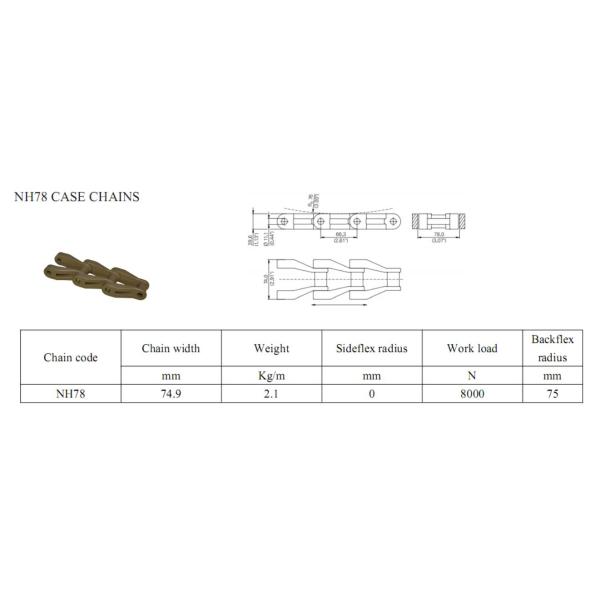

The NH78 chain is a typical straight running crate conveyor chain. The NH78 chain is designed to run in both directions. The NH78 chain is very suitable, where wearability and chain strength demands are very high. APPLICATIONS: Water Treatment Rectangular Clarifiers Lumber Sorting Tables Pallet Conveying Plywood and Gypsum Board Ice Packaging |
![]() |
APPLICATIONS: |
![]() |
![]() |
