| Categories | Extra Heavy Duty Casters |
|---|---|
| Brand Name: | EDL |
| Model Number: | 9510-26 |
| Certification: | ISO9001, ISO14001, RoHS |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs/day |
| Delivery Time: | 3-15days |
| Packaging Details: | Carton |
| Wheel Diameter: | 10inch(250mm) |
| Dynamic Load: | 5000kg |
| Tread Material: | MC |
| Mounting Height: | 360mm |
| Frame Material: | Hot-Rolled Plate |
| Surface Treatment: | Zinc Coating |
| Plate Thickness: | 20mm |
| Bracket Thickness: | 16mm |
| Bracket Width: | 2-91mm |
| Wheel width: | 80mm |
| Bearing: | Double ball bearings |
| Tread Color: | White |
| Applicable Temperature: | -30℃～80℃ |
| Tread Hardness: | 95A |
| Company Info. |
| Guangzhou EDL Casters Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

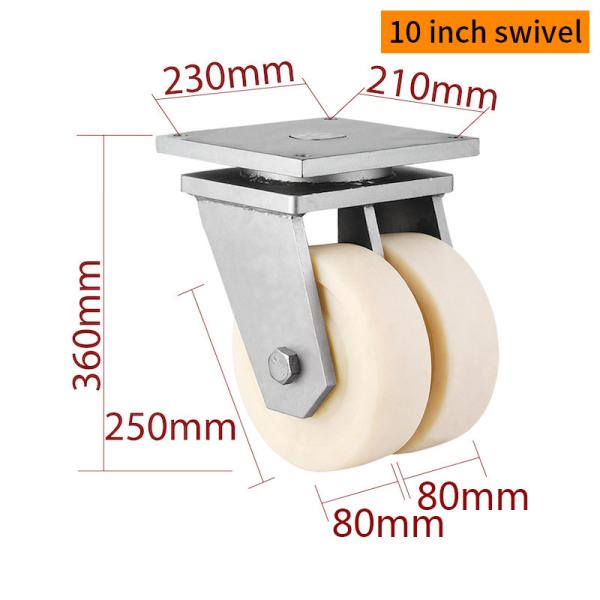

EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster Plate Rigid Swivel Type 9510-26
The EDL 10 Inch 5000kg Ultra Heavy Duty Dual Wheel MC Nylon Caster (9510-26) is built for the toughest industrial applications. Each caster supports up to 5000kg, making it ideal for extremely heavy machinery, mold trolleys, and oversized transport platforms.The dual-wheel design uses MC Nylon, a high-performance engineering plastic known for exceptional wear resistance, low rolling resistance, and long-term durability under high loads. This ensures smooth operation even in high-frequency or high-impact environments.A 20mm thick top mounting plate and 16mm thick steel bracket provide outstanding structural strength and impact resistance. Available in rigid and swivel types, this caster adapts to different movement control requirements.Perfect for aerospace platforms, automated production lines, steel processing, and industrial logistics, the 9510-26 delivers unmatched performance where strength and reliability are critical. Backed by EDL’s engineering excellence, it is a professional solution for extreme-duty mobility challenges.
Wheel Item No. | Size | Wheel Diameter | Wheel Width | Bracket Width | Load Capacity | Core | Tread | Bearing | Applicable Temperature | Hardness |
| 9510-26 | 10" | 250mm | 80mm | 2-91mm | 5000Kg | / | MC | Double ball bearing 6206 | -20℃～120℃ | 67D |
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.
Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from
Yiwu. Welcome to visit.
Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.
Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product
it's 50%) of deposit upon signing the PI and the rest will be
cleared by T/T before delivery.
Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
|
