| Categories | Industrial Connectors |
|---|---|
| Brand Name: | UPE |
| Model Number: | Self-locking connectors |
| Certification: | CE, RoHS, REACH |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | $2-$4 |
| Payment Terms: | T/T |
| Supply Ability: | 10KPCS/Month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | Standard PE Bag |
| Name: | Self-locking connectors |
| Material: | PPS,Chrome Plated Brass |
| Pin: | 2-32 contacts |
| Operation Temperature: | -55~200°C |
| Salt Spray Corrosion Test: | 96 Hr |
| Operation Voltage: | 110v-550v |
| Insulation Material: | PPS |
| Out Shell Material: | Chrome Plated Brass |
| Contact Type: | Solder Male |
| Endurance: | 5000 cycles |
| Company Info. |
| Union Precision Electronic LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

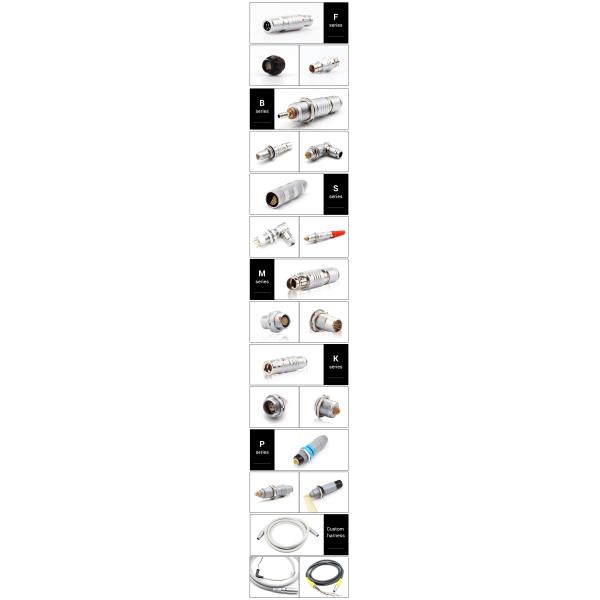

Circular ip65 3 4 8 7/16" pin agility receptacle rings standard type female with plug waterproof connector.
model | Needle configuration | Shell material | insulator Material | needle core | wire clamp | variable parameter | |
B series | 12 | 45 | 50 | 50 | 50 | 52 | 54 |
K series | 34 | 45 | 50 | 50 | 50 | 53 | 54 |
S series | 58 | 91 | 99 | 99 | 99 | 102 | 107 |
E series | 76 | 91 | 99 | 99 | 99 | 105 | 107 |
L series | 86 | 92 | 99 | 99 | 99 | 106 | 107 |
G series | 111 | 112 | 112 | 110 | 113 | 112 | 113 |
C series | 117 | 120 | 120 | 116 | 120 | 121 | 121 |
1D series | 125 | 127 | 127 | 124 | 127 | 127 | 128 |
Basic Product Information
Gender | Male/Female |
Coding | G KEY |
Locking Type | Quick lock,Self Locking,Quick Release |
Mounting Type | Cables Assembly,Panel mounted |
Part No. | Self locking connector |
Ambient Temperature | -55℃~200℃ | Mating Endurance | >5000 cycles |
Insulator | PEEK | Connector Contacts | Brass with Gold Plated |
Coupling Nut/Screw | Brass with Nickel Plated | Housing | Brass with Cr Plated |
Seal/o-ring | ///// | Insulation resistance | ≥100MΩ |
IP Rating | IP50-IP68 in locked condition | Shielding efficiency | at 10MHz>95dB / at 1GHz>80dB |
Salt spray Corrosiom test | >144h | Certificate | UL/CE/ROHS/REACH/IP50 |
Characteristics | Parameter |
Locking Type | Push pull self-latching type |
Operation Temperature | -55~200°C |
Max Humidity | up to 95% @ 60°C / 140°F |
Shielding Efficiency | 75dB (10MHz) 40dB (1GHz) |
Resistance To Vibration | 15g (10Hz~2000Hz) |
Salt Spray Corrosion Test | 96 Hr |
Shock Resistance | 100g,6ms |
Endurance | 5000 cycles |
Protection Index(mated) | IP50-IP68 |
Pin Qty | 2-32 contacts |
Operation Voltage | 110v-550v |
Compatibility | Option |
Suitable Cable OD | 3.0~5.0 mm |
Insulation Material | PPS |
Out Shell Material | Chrome Plated Brass |
Contact Type | Solder Male |
| Quantity (pieces) | 1 - 100 | 101 - 1000 | 1001 - 5000 | > 5000 |
| Lead time (days) | 7 | 15 | 25 | To be negotiated |
