| Categories | C9300 Switch |
|---|---|
| Brand Name: | Cisco 9300 series switch |
| Model Number: | C9300X-12Y-A |
| Place of Origin: | Beijing |
| MOQ: | 2 pieces |
| Price: | $4400-$4,575.00/pieces 2-199 pieces |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 80 Piece/Pieces per Day |
| Delivery Time: | 2-5 work days |
| Packaging Details: | Brand new original unopened, Carton box |
| Private Mold: | NO |
| Products Status: | Stock |
| Ports: | 12 |
| Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, POE, QoS, SNMP, stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 208Gbps |
| Product Name: | Industrial Ethernet Switch |
| Condition: | NIB Original |
| Model: | C9300X-12Y-A |
| Warranty: | 1 Year |
| PoE Ports: | 12 Ports Support PoE |
| Lead time: | 3~7 Days |
| Shipping: | DHL UPS FEDEX |
| Company Info. |
| Beijing Lianmai Tongchuang Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Cisco Original new 9300 series 12 ports 25G 10G 1G SFP28 switch C9300X-12Y-A
Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and
as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the
workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
C9300X-12Y-A Specification | |
| Product Code | C9300X-12Y-A |
| Description | 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials |
| General | |
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 12 x 1/10/25 Gigabit SFP28 |
| Performance | Switching capacity: 1000 Gbps ¦ Switching capacity with stacking: 2000 Gbps ¦ Forwarding rate: 744.04 Mpps ¦ Forwarding rate with stacking: 1488 Mpps |
| Capacity | IPv4 routing table entries: 39000 ¦ Flexible NetFlow entries: 64000 ¦ Direct IPv4 routes: 24000 ¦ Indirect IPv4 routes: 15000 ¦ IPv6 routing table entries: 19500 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Multicast routing flow table: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 5000 ¦ PVST instances: 300 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Routed ports: 448 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), StackWise-480 technology, StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, StackWise-1T technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/10/25GBase-X SFP28 |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 16.1 in |
| Height | 1.7 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Benefits
●Improves quality of experience by lowering jitter and latency for time-synchronized delivery of high-quality AV.
●Provides scalability of applications across networked deployments, including expansive and complex AV infrastructure.
●Lowers Total Cost of Ownership (TCO) with reduced cabling (lowers
CapEx) and no license fees
(lowers OpEx).
Power supplies

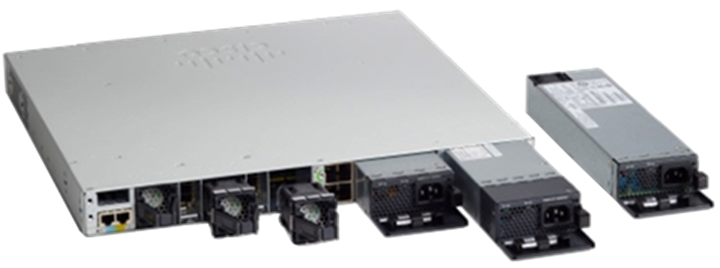

Cisco Catalyst 9300 Series switches support dual redundant power supplies. The switches ship with one power
supply by default, and the second power supply can be purchased when the switch is ordered or at a later time.
If only one power supply is installed, it should always be in power supply bay #1. The switches also ship with three
field-replaceable fans. Power Supplies are common across the Catalyst 9300 Series.
| *Packing Details 1. All items are sealed in original box 2. We will also pack them with another carton box before shipping 3. Professional packing will make sure the goods arriving safely |
| *FAQ Q: Is the product brand new? A: All our products are new original. Q: When can I get my purchase? A: We work with DHL, UPS,Fedex, Middle East Express and many others delivery companies. The goods usually arrive at the designated address within 3-5 days. Q: How long is the lead time? A: We will deliver the goods within 1-2 days after receiving the payment. If it is in stock, we will arrange it immediately. Q: How long is the warranty? A: One year. |
|
