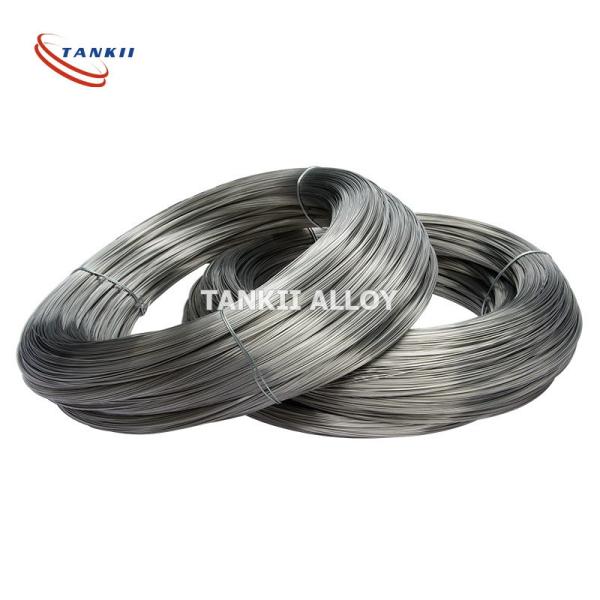

Fecral Alloy 0cr21al6nb 0cr27al7mo2 0cr25al5 Furnace Electric Heating Element

Cheap Price Fecral Alloy 0cr21al6nb 0cr27al7mo2 0cr25al5 Furnace Electric Heating Element

Model NO.

0cr21al6nb

Material

Fe-Cr-Al Wire

Form

Heating Wire

Shape

Wire/Rod

Density

7.1 g/cm3

Thermal Conductivity

46.1 Kj/M.H

Resistivity

1.45+/-5% Ohm/M

Melting Point

1500c

Surface

Bright, Acid White, Oxidation

Hardness

200-260hv

Elongation

Min12

Working Tem

1250c

Transport Package

Carton or Wooden Box

Specification

0.025-10mm

Trademark

TANKII

Origin

China

HS Code

7223000000

Production Capacity

500tons/Month

Packaging & Delivery

Package Size

12.00cm * 12.00cm * 12.00cm

Package Gross Weight

1.000kg

FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,goodanti-oxidation and anti-corrosion under high temperature.

It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive,
and other industries producing heating elements and resistance elements.

Product Description

Alloy Nomenclature Performance		1Cr13AL4	0Cr25Al5	0Cr21AL6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
Main Chemical composition	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(ºC)		950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ/m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m.h.ºC)		52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of lines expansion(α*10-6/ºC)		15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)		1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		>16	>12	>12	>12	>12	>12	>10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
continuous service time(Hours/ ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over forty years in this field. During forty years, hundreds of management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.

We are willing to establish strong and long-time partnership with our customers

• Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers
• Quality with end to end production control
• Technical support and Customer Service
