LT-DC Series 9dB Directional Coupler 20W Power 0.45-18 GHz Frequency Range for Optimal Performance

0.45 to 18 GHz 9dB Directional Coupler

Quick Detail:

· 9dB Directional Coupler

· Directivity > 15 dB

· 0.45 to 18 GHz Frequency Range

· Lost VSWR < 1.4:1

· Coupling 9±0.8 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC9-004180S-1 from ZR is a 9dB Directional Coupler that operates from 0.45 to 18 GHz and can handle up to 20 Watt (CW) with 15 dB directivity min and 1.4:1 VSWR max,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC9-004180S-1 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

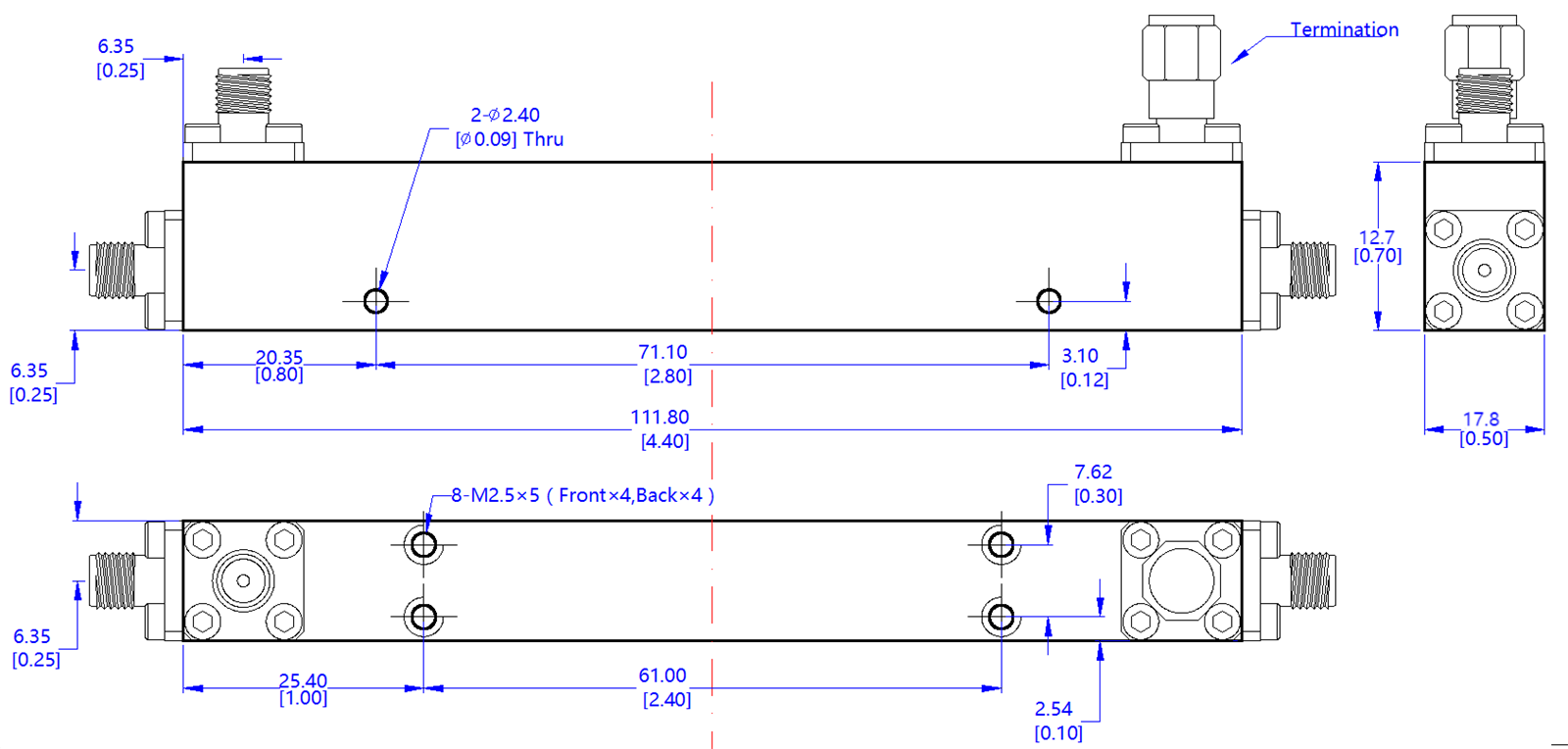

Outline Drawing (Unit: mm):
