1.5 Ton Vibratory Road Roller ST1500 Double Drum with 8.1kw Diesel Engine

Categories Vibratory Road Roller
Brand Name: HARVEST
Model Number: ST1500
Certification: CE/ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 1000 units per month
Delivery Time: 20 working days
Packaging Details: nude
Operating Weight: 1450kg
Dimensions: 1940×930×2125mm
Engine brand: Changchai 192F
Rated power: 8.1kw/ 3600rpm
Vibration frequency: 65Hz
Drum width: 800mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1.5 Ton Vibratory Road Roller ST1500 Double Drum with 8.1kw Diesel Engine

1.5 Ton Vibratory Road Roller ST1500 Double Drum with 8.1kw Diesel Engine
The main function of 1.5 tons double drum roller ST1500 is to compact various types of soil, gravel, asphalt and other materials to make them denser and improve the load-bearing capacity and stability, which is widely used in construction occasions such as roads, parking lots, sidewalks, sports fields and so on.
Product Description:

  • Equipped with famous brand power, quality assurance, superior performance; Eagle-eye body design, wide field of vision, beautiful and generous;
  • Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward;
  • The control panel is fully functional, one-key operation;
  • Front and rear lighting & warning lights, can be constructed at night
  • Ergonomic driving
  • The product has passed the CE certification, and the design of the Red Star Award;
  • The steel wheel is equipped with an outline light, which is easy to operate, safe and efficient

Product Features:

  • Efficient compaction capacity: 1.5 tons weight and double steel wheels design provide strong compaction capacity, which can effectively compact all kinds of materials and shorten the construction time.
  • Easy to operate: Seat-driven design, comfortable and convenient operation, reducing the labor intensity of the operator.
  • Small turning radius: Compact size and small turning radius make it suitable for operation in narrow areas.
  • Good Stability: Double steel wheels design and low center of gravity ensure the stability of the machine when working, not easy to tilt.
  • Easy to maintain: Simple structure, easy to maintain, reduce the maintenance cost.
  • Economical: Lower price compared with large rollers, more suitable for small projects or limited budget projects.

Technical Specification of LTC08H

Description
Unit
Parameter value
Operating weight
kg
1500
Static linear load
N/cm
69.5/68
Vibration frequency
Hz
65
Centrifugal force
KN
30
Travel speed
Km/h
0-6
Grade ability
%
30
Turning speedmm2800
Steering angle
°
30
Wheelbase
mm
1356
Drum width
mm
800
Drum diameter
mm
560
Engine
Brand
Changchai
Model
192F
Rated power
8.1
Dimensions
mm
1940×930×2125
Water tank capacity
L
70

Display 1500kg Hydraulic Double Drum Vibratory Roller ST1500 Near Me Sale

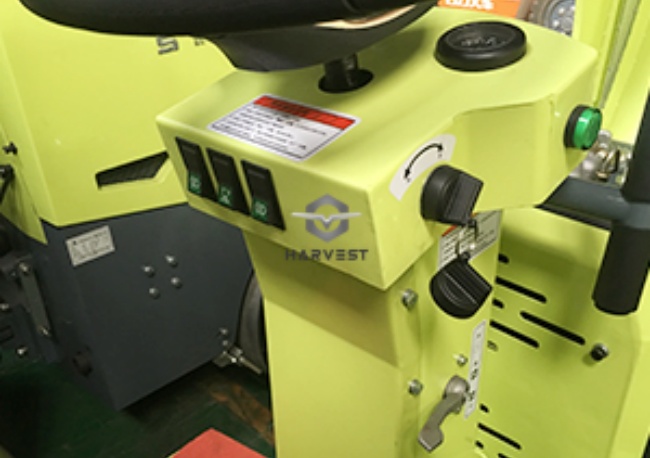

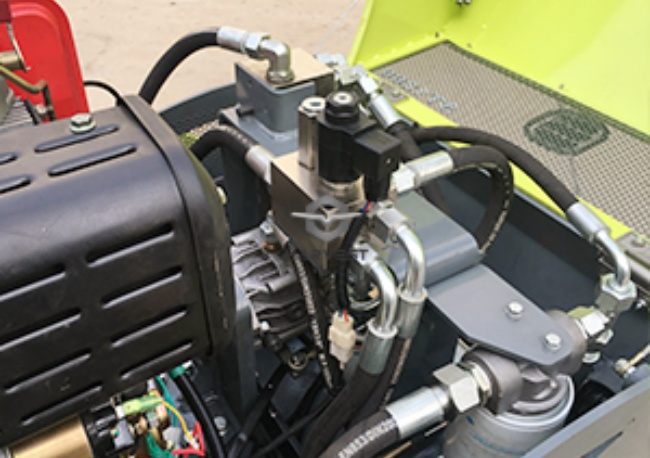

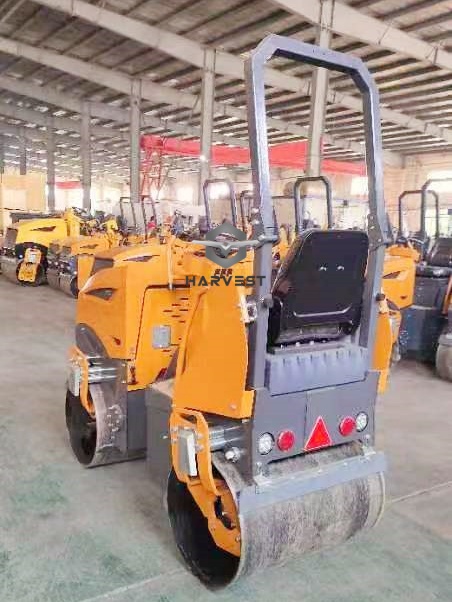

Detailed Photos of 1500kg Double Drum Vibratory Roller ST1500 For Hot Sale

Quality 1.5 Ton Vibratory Road Roller ST1500 Double Drum with 8.1kw Diesel Engine for sale
