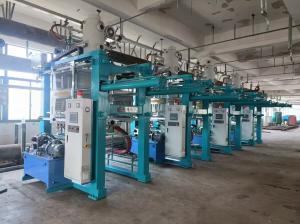

Professional EPS Foam Plastic Packaging Box Forming Machine

Name: Professional EPS Foam Plastic Packaging Box Forming Machine
Brand: PINSHENG
Price: 1 USD

Professional EPS Foam Plastic Packaging Box Forming Machine

Categories	EPS Shape Moulding Machine
Brand Name:	PINSHENG
Model Number:	PSSM140-170B
Place of Origin:	Zhejiang China
MOQ:	1
Price:	negotiation
Payment Terms:	T/T LC
Supply Ability:	10pcs per month
Delivery Time:	6-10days
Processing Type:	Foaming Machine
Cycle Time:	60-110S
Room Height Required:	5m
Origin:	Zhejiang CHINA
Warranty Period:	1year
Max Product Height:	1840 mm
Stroke:	40-1290 mm
Foam Density:	8-64kg/m3

Contact Now

Add to Cart

Company Info.

NINGBO PINSHENG MACHINERY CO.,LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Professional EPS Foam Plastic Packaging Box Forming Machine

Pre-expansion: The process begins with the pre-expansion of EPS beads. The beads are fed into a pre-expander, where they are exposed to steam and heat.

Main features :
This machine is the basic type of shape molding machine and the features are as follows:
Mechanical Structure :
a.high-strength square tube welded by tempering prevent form deformation.

b.after sand-blasting,greatly improve corrosion performance and service life of equipment .
c.after sand-blasting ,anti-rust spray zinc-rich primer,rust greatly improve the performance and service life of equipment . Electronic control:
a.adopt PLC(Mitsubishi and HMI(WEINVIEW) ,for close-mold ,filling ,heating,cooling,de-mold,the whole proess is automatic. b.all electronic components are used well- kown brands ,better stability of the equipment(Schneider).
c.the stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .

Item	Unit	PSSM140B	PSSM160B	PSSM170B
Mould Dimension	mm	1400X1200	1600X1400	1700X1500
Max Product Dimension	mm	1250X1050X350	1450X1350X350	1550X1350X350
Stroke	mm	170-1420	170-1420	170-1420
Steam Inlet	mm	DN100	DN100	DN100
Steam Consumption	t/t	(12-15t)Steam of 1t Material
Cooling Water inlet	mm	DN80	DN80	DN80
Cooling Water Consumption	kg/cycle	55-150	60-180	70-190
Compressed Air Inlet	mm	DN40	DN40	DN50
Compressed Air Consumption	m³/cycle	1.8	2	2.2
Vacuum Pump Capacity	m³/h	230	230	280
Drainage Port	mm	DN150	DN150	DN150
Connected Load	kw	13	17	17
Outside Dimension	mm	4600X2300X3800	4600X2500X4000	4600X2600X4100
Weight	kg	5000	6000	6500
Cycle Time	s	60-120	70-160	80-170
