2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

Name: 24G 58G Wifi6 MIMO HV Four Port MIMO Omni Outdoor Antenna 4xNK
Brand: Leenz
Price: 1 USD

2.4G 5.8G Wifi6 MIMO H+V Four Port MIMO Omni Outdoor Antenna 4xN-K

Categories	Outdoor Waterproof Directional Antenna
Brand Name:	Leenz
Model Number:	LZANT-10805-A
Certification:	RoHs
Place of Origin:	China
MOQ:	10
Payment Terms:	T/T
Supply Ability:	200 per day
Delivery Time:	15 days
Frequency:	2400-2500/5150-5850MHz
VSWR:	<2.0
Peak Gain:	10/15dBi
Impedance:	50

Contact Now

Add to Cart

Company Info.

Dongguan Leenz Electronics Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1. Specification

A. Electrical Characteristics
	Port 1	Port 2	Port 3	Port 4
Frequency
	2400-2500	2400-2500M	5150-5850M	5150-5850M
S.W.R.	<= 2.0
Antenna Gain	13dBi		15dBi
Polarization	V	H	V	H
Horizontal Beamwidth	90°		30°
Vertical Beamwidth	28°		20°
F/B	>21dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	4*N Female connector
Dimension	29020540mm
Radome material	ABS
Weight	1.0Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

V

H

V

H

2.2 Total Efficiency & Gain:

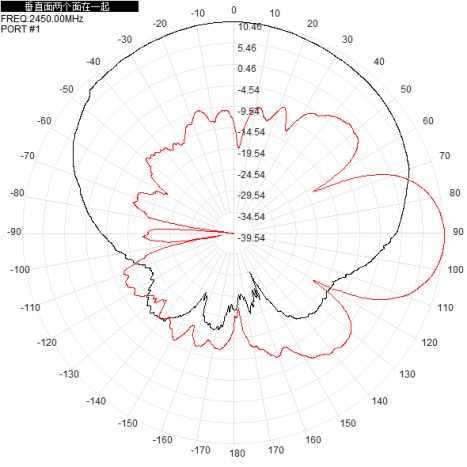

2.3 Radiation Pattern
