Manual 1 Ton / Day Hot Dip Galvanizing Furnace Intelligent Temperature Control System For Fasteners Screws Nuts Nails

manual 1ton / day hot dip galvanizing furnace Intelligent temperature control system for fasteners screws nuts nails

1.Overview of the composition of hot dip galvanizing furnace

1.1 zinc kettle

According to the workpiece size and production requirements, the size of the zinc kettle would be 2400×1590×900mm

(length×width×depth).

The ceramic zinc kettle is once-forming by high-temperature resistant castables;

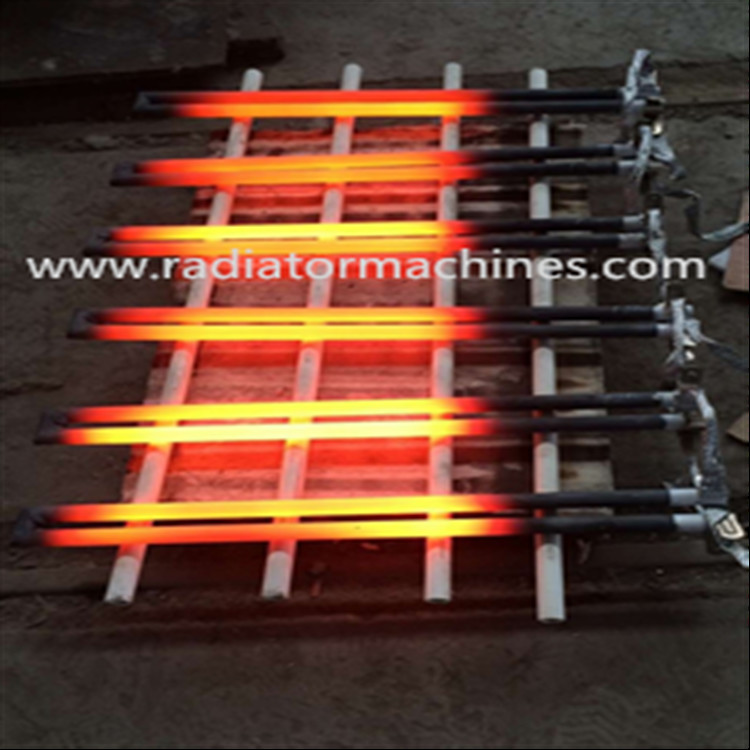

1.2 Zinc kettle heating equipment: Resistance wire heating rod

The zinc galvanizing furnace adopts the special hot-dip galvanized heating rod made of international advanced

resistance wire material, which has high efficiency and long service life. The heaters are respectively utilized with

SSR modules, and intelligent instruments are used to control the power regulator to achieve continuous heating

power adjustment from zero to full load. This scheme has high control precision, no fault, maintenance-free, and no

pollution to the power grid.

1.3electrical control system

The intelligent temperature controller control system is used for operation. When the medium temperature approaches

the set value, the electric heating control system performs PID calculation based on the temperature sensor signal at the

output port and automatically adjusts the temperature control system. The system equipment has digital current display,

automatic temperature control display, branch heating plate temperature control display, leakage protection device, and

temperature control over temperature alarm device, which can achieve high-precision temperature control. By using fuzzy

rules for PID regulation, hot dip galvanizing furnace has the characteristics of no overshoot, high accuracy, simple parameter

determination, and good control effect on complex objects

2.layout drawing of hot dip galvanizing furnace

3.Po​st-sales Service

The HDG furnace is warranted for 13 months from the date of shipment. The seller is responsible for repairing the furnace or

replacing the broken parts if faults are caused by manufacture defects, but damages caused by faulty operation by the workers

are to be repaired by the buyer itself or by the seller at a certain rate of charge. (Easy-worn parts, and natural consumption of

high temperature parts are not included in the warranty.)
