W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 1B 4 1/2 P
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Cover Plate Diameter: 110 MM
Bellows Natural Diameter: 125 MM
Material: Rubber And Aluminum
Other OEM: PM/31041
Maximum Height: 90 MM
Installation Diameter: 140 MM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension

W01-R58-4050 Firestone Single Convoluted Air Spring G 3/8 Air Inlet Air Suspension


Product Specifications


Air HoleG 3/8
Nuts Type3×M6
Distance Air Hole Betweeen Nuts46.5 MM
Top Cover Plate Diameter110 MM
Bottom Cover Plate Diameter110 MM
Bellow MAX. Diameter125 MM
Installation Diameter140 MM
Minimum Height50 MM
Maximum Height90 MM
Pressure Ability3-8 Bar
Mini Pressure0 Bar

Production Technical Parameters


Pressure [bar]345678Vol. V [I]
Force (Load) [kN]1.52.12.73.23.84.40.27
Spring Rate [N/mm]112141169198226253
Natural frequency [Hz]4.24.14.03.93.83.8

Pressure[bar]345678Vol. V [I]
Height H [mm]801.021.441.872.32.743.20.32
701.582.152.73.33.884.50.27
602.172.893.624.345.085.850.22


Cross References:


Firestone

W01-R58-4050, W01R584050, W01 R58 4050, WO1-R58-4050, WO1R584050, WO1R584050


Contitech

FS 44-5 DI, FS 44 5 DI, FS445DI, FS44-5 DI, FS44-5DI, FS 445 DI, FS 44-5DI, FS 445DI


NORGREN

PM/31041


PARKER

9109400


DUNLOP PNEURIDE

4 1/2" x 1


DUNLOP SPRINGRIDE

SP2334, SP 2334


Advantages


  • Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.
  • The actuator also features top and bottom plates that are crimped and coated with a zinc plating. This addition serves to provide excellent corrosion resistance, ensuring that the actuator maintains its high-quality performance over time. With its unique combination of power, adaptability, and durability, our Convolution Air Actuator stands as a dependable choice for any industrial requirement.

Company Profile


Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

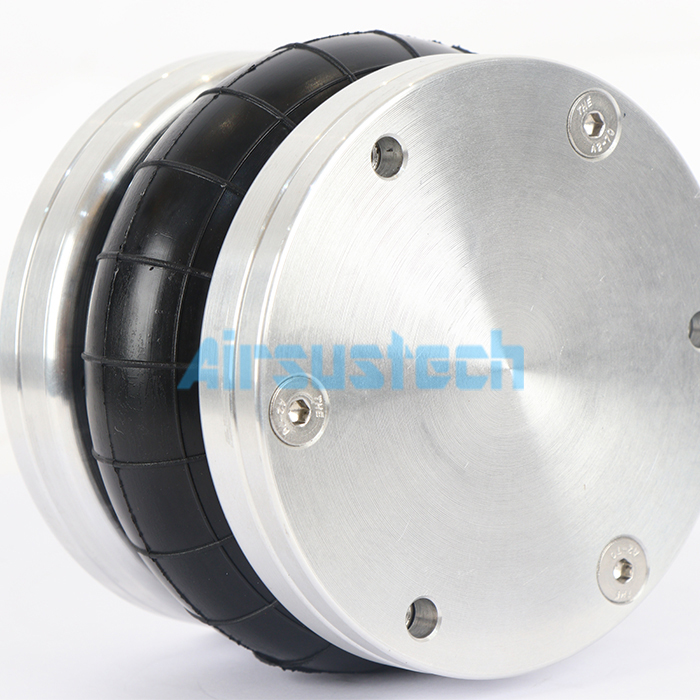

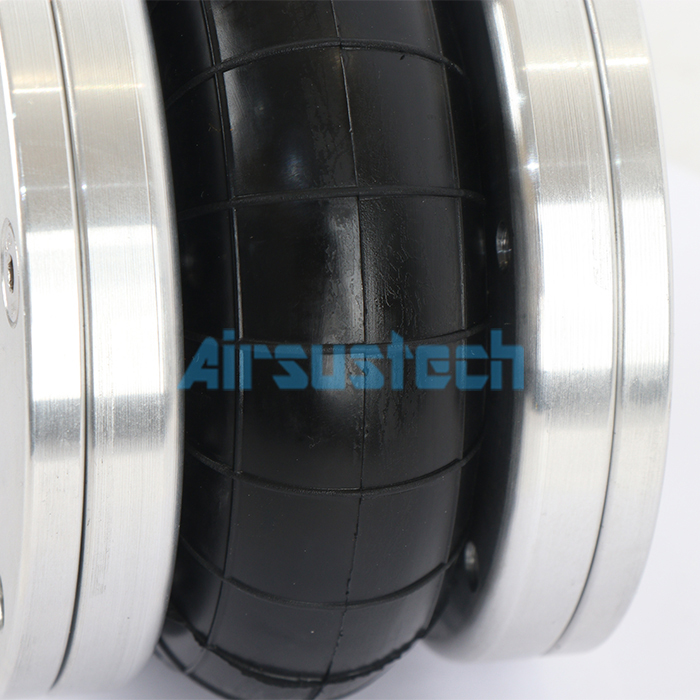

The Real Pictures of 1B4 1/2P:
