High Accuracy 0.5% Flexible Rogowski Coil Current Transformer Split Core 0.333V Output

High Accuracy 0.5% Flexible Rogowski Coil Current Transformer Split Core 0.333V Output

High Accuracy 0.5% Flexible Rogowski Coil Current Transformer Split Core 0.333V Output
High Accuracy 0.5% Flexible Rogowski Coil Current Transformer Split Core 0.333V Output
Categories Split Core Current Transformer
Place of Origin: Shanghai, China
Brand Name: Fineco
Model Number: RS500/RS3000/RS5000
Use: current
Phase: Single
Coil Structure: TOROIDAL
Coil Number: AUTOTRANSFORMER
Input Voltage: 220V, Other
OEM: yes
Output: 0-5A AC
onput Voltageto: Other
Packaging Details: standard export packlist for SCT-T24 Split core current transformer
Port: Shanghai
Supply Ability: 3000 Unit/Units per Day SCT-T24 Split core current transformer
MOQ: 300 units
Price: $5.00 - $30.00/units
Contact Now
Company Info.
shanghai fangqiu electric co.,ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Accuracy 0.5% Flexible Rogowski Coil Current Transformer Split Core 0.333V Output

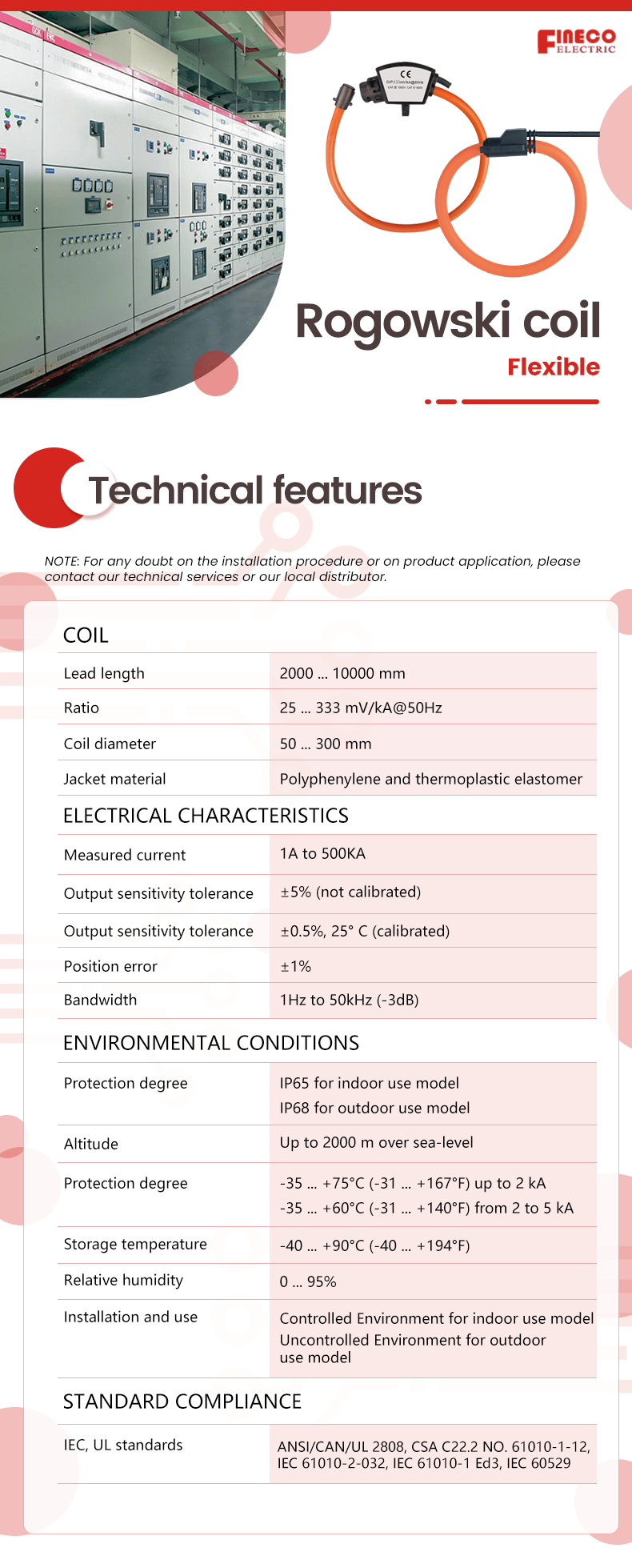

Flexible Rogowski Coil

●Waterproof rating up to IP68

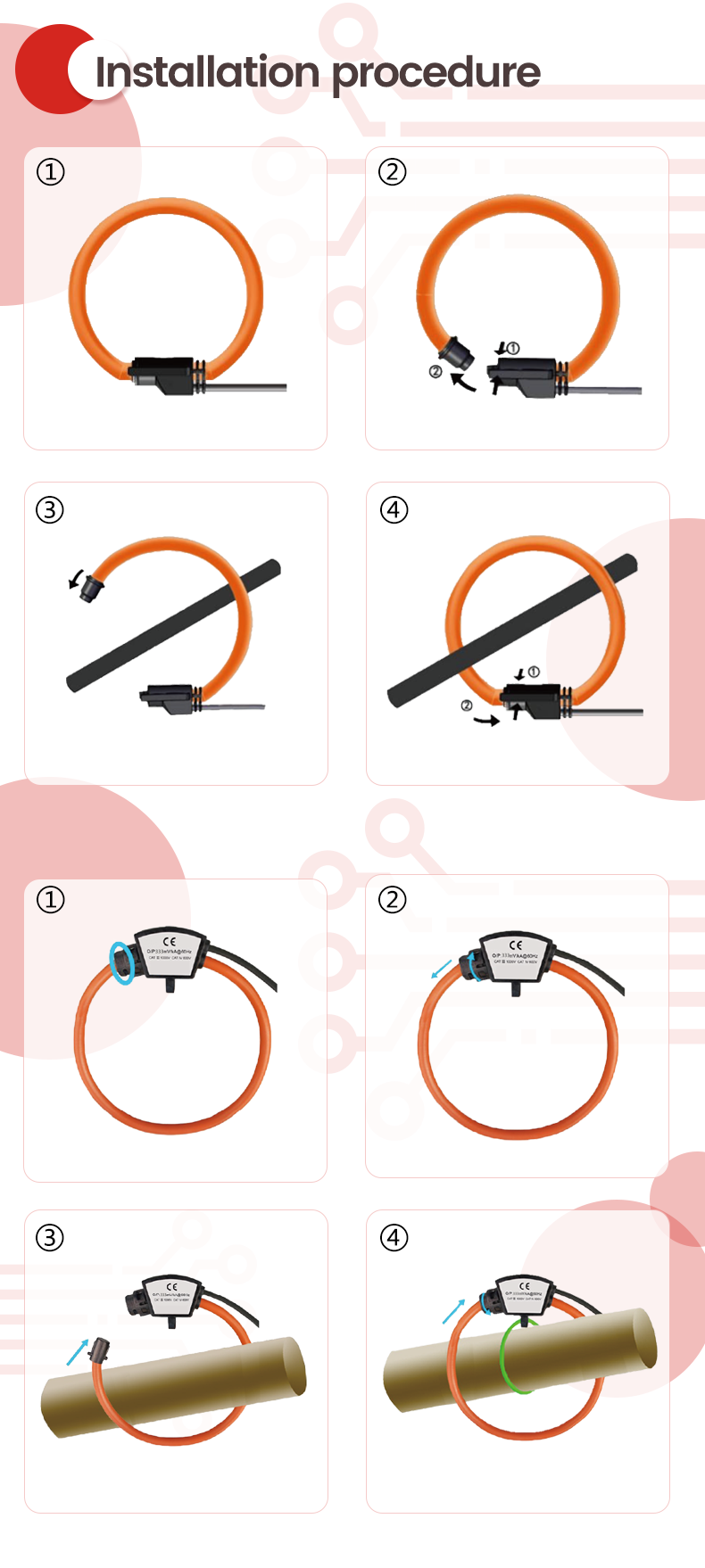

●Short-time installation
●RoHs, CE certification
●No power supply required
Model
Coil diameter
Lead length
Ratio
Color (coil)
Article NO.
SRC-50
50mm
2m
333mV/kA@50Hz
Orange
SRC-50-2M-333-OR
SRC-50
50mm
5m
240mV/kA@50Hz
Blue
SRC-50-5M-240-BL
SRC-100
100mm
2m
333mV/kA@50Hz
Orange
SRC-100-2M-333-OR
SRC-100
100mm
8m
120mV/kA@50Hz
Green
SRC-100-8M-120-GR
SRC-150
150mm
2m
333mV/kA@50Hz
Orange
SRC-150-2M-333-OR
SRC-150
150mm
10m
100mV/kA@50Hz
Red
SRC-150-10M-100-RE
SRC-200
200mm
2m
333mV/kA@50Hz
Orange
SRC-200-2M-333-OR
SRC-200
200mm
3m
85mV/kA@50Hz
Yellow
SRC-200-3M-85-YE
Model
Coil diameter
Lead length
Ratio
Color(coil）
Article NO.
NRC-100
100mm
2m
85mV/kA@50Hz
Orange
NRC-100-2M-85-OR
NRC-100
100mm
8m
50mV/kA@50Hz
Blue
NRC-100-8M-50-GR
NRC-150
150mm
2m
85mV/kA@50Hz
Orange
NRC-150-2M-85-OR
NRC-150
150mm
10m
50mV/kA@50Hz
Green
NRC-150-10M-50-RE
NRC-200
200mm
2m
85mV/kA@50Hz
Orange
NRC-200-2M-85-OR
NRC-200
200mm
3m
25mV/kA@50Hz
Red
NRC-200-3M-25-YE
NRC-300
300mm
2m
85mV/kA@50Hz
Orange
NRC-300-2M-85-OR
NRC-300
300mm
3m
25mV/kA@50Hz
Yellow
NRC-300-3M-25-YE
