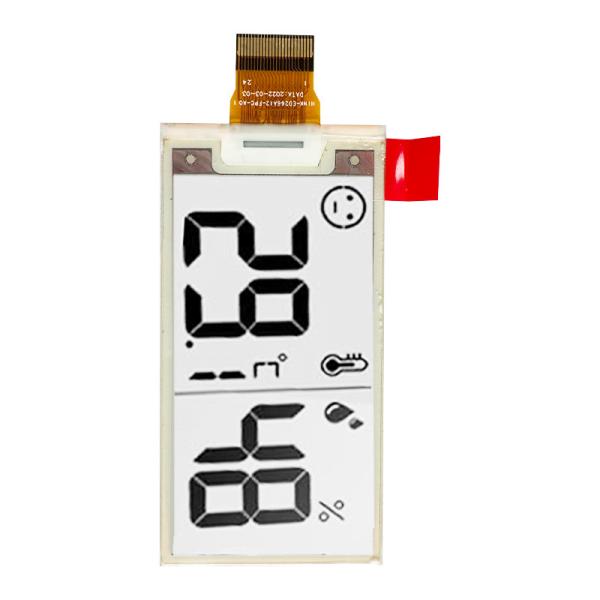

E-Ink E Paper Display 2.66Inch 152x296 E Ink Display Spi Ultrawide Viewing Angle

Categories	E-Ink Epaper Display
Brand Name:	RGH
Model Number:	RSE0266N03-A0
Certification:	ISO9001/ISO14001
Place of Origin:	Shenzhen,China
MOQ:	3PCS
Price:	Negotiable
Payment Terms:	L/C, T/T,Paypal
Supply Ability:	3.5kk
Delivery Time:	3-5weeks
Packaging Details:	Standard Exportation Package
Screen Size:	2.66 Inch
Display Resolution:	152(H)×296(V)
Active Area:	30.70(H)×60.09(V)
Pixel Pitch:	0.202×0.203 mm
Pixel Configuration:	Rectangle
Outline Dimension:	36.3(H)×71.82 (V) ×0.95(D) mm
Weight:	5±0.2 g

Contact Now

Add to Cart

Company Info.

Rongguang Hui Optoelectronics Science and Technology

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Pin#	Single	Description	Remark
1	NC	No connection and do not connect with other NCpins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NCpins	Keep Open
5	VSH2	Positive Source driving voltage
6	TSCL	FC Interface to digital temperature sensor Clock pin
7	TSDA	FC Interface to digita temperature sensorData pin.
8	BSI	Bus selectionpin	Note 6-5
9	BUSY	Busy state outputpin	Note 6-4
10	RES#	Reset signal input.	Note 6-3
11	D/C#	Data /Command control pin	Note 6-2
12	CS	The chip select input connecting to the MCU.	Note 6-1
13	SCL	Serial clock pinfor interface
14	SDA	Serial data pin for inter face
15	VDDIO	Power input pin for the Interface
16	VCI	Power Supply pin for the chip
17	VSS	Ground (Digital)
18	VDD	Core logic power pin
19	VPP	Power Supply for OTPProgramming
20	VSHI	Positive Source driving voltage
21	VGH	Power Supply pin forPositive Gate driving voltageand VSH
22	VSL	Negative Source driving voltage
23	VGL	Power Supply pin forNegative Gate driving voltage,VOOM and VSL
24	VCOM	VOOM driving voltage
