| Categories | Aluminium Pipe |
|---|---|
| Brand Name: | CHINALCO |
| Model Number: | 1000series, 2000series, 3000series, 5000series, 6000series, 7000series |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu China |
| MOQ: | 1ton |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 Ton/Tons per Month |
| Delivery Time: | About 7-10 days,depends on the specific order |
| Packaging Details: | Exporting package/wooden box package/Or per customers’requirement |
| Product Name: | Aluminum pipe |
| Material: | 1050,1060,1070,1100 |
| Color: | Silver,gold or customized Color |
| Surface: | Mill Finish,Anodize or as required |
| Features: | High strength;durable;corrosion preventive |
| Packing: | Standard seaworthy packing or as required |
| Company Info. |
| JIANGSU LIANZHONG METAL PRODUCTS (GROUP) CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Square Shape Seamless Aluminium Pipe 6061 T6 T4 Bending 80x80mm
Diameter Alloy Tube
Product Description
Aluminum 6061 is one of the most widely used and versatile aluminum alloys known for its excellent combination of strength, weldability, and corrosion resistance. Composed primarily of aluminum (Al) with magnesium (Mg) and silicon (Si) as the primary alloying elements, aluminum 6061 offers a unique set of characteristics that make it highly valuable in various industrial and structural applications.
Temper States | O,T6,T4.H112 |
Length | 1000-12000mm or as customer requirements |
Outer Diameter | 5-300mm or as customer requirements |
Wall Thickness | 0.3-50 mm or as customer requirements |
Application | Aircraft and aerospace components.marine fittings,transport.bicycle
frames,camera lenses,drive shafts electrical fittings and connectors,brake components.valves,couplings. |
Delivery Time | 15-30 days varies upon order quantity |
Other aluminum tubes'product | 2024,5052,5083,6061,6063.6082,7050,7075 |
Loading Port | Shanghai or other major ports |
Surface treament | Anodized,Mill finished,glaze,polished,brushing,power coating. |
Payment | T/T 30% as deposit, 70% before delivery or 100%L/C at sight |
Product Detail
Chemical Compositon
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr |
Impurity | Al | 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 |
0.15 | - | 0.15 | Rest | 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 |
0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 2024 | 0.5 | 0.5 | 3.8-4.9 |
0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest | 5052 | 0.25 |
0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | - | 0.15 | Rest |
5056 | 0.3 | 0.4 | 0.1 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | 0.1 | - | - |
0.15 | Rest | 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 |
0.15 | - | 0.15 | Rest | 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 |
0.3 | 0.2 | 0.15 | - | 0.15 | Rest | 6061 | 0.4-0.8 | 0.70 | 0.15-0.40 |
0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | - | 0.15 | Rest | 6063 | 0.2-0.6 |
0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | - | 0.15 | Rest |
6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.1 | - |
Physical Properties
| Physical Properties | Tensile Strength | Yield Strength | Elongation(%) | ||
| Grade | Hardness | (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 | |
| H34 | 330.9 | 255.1 | 11 | 14 | |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |

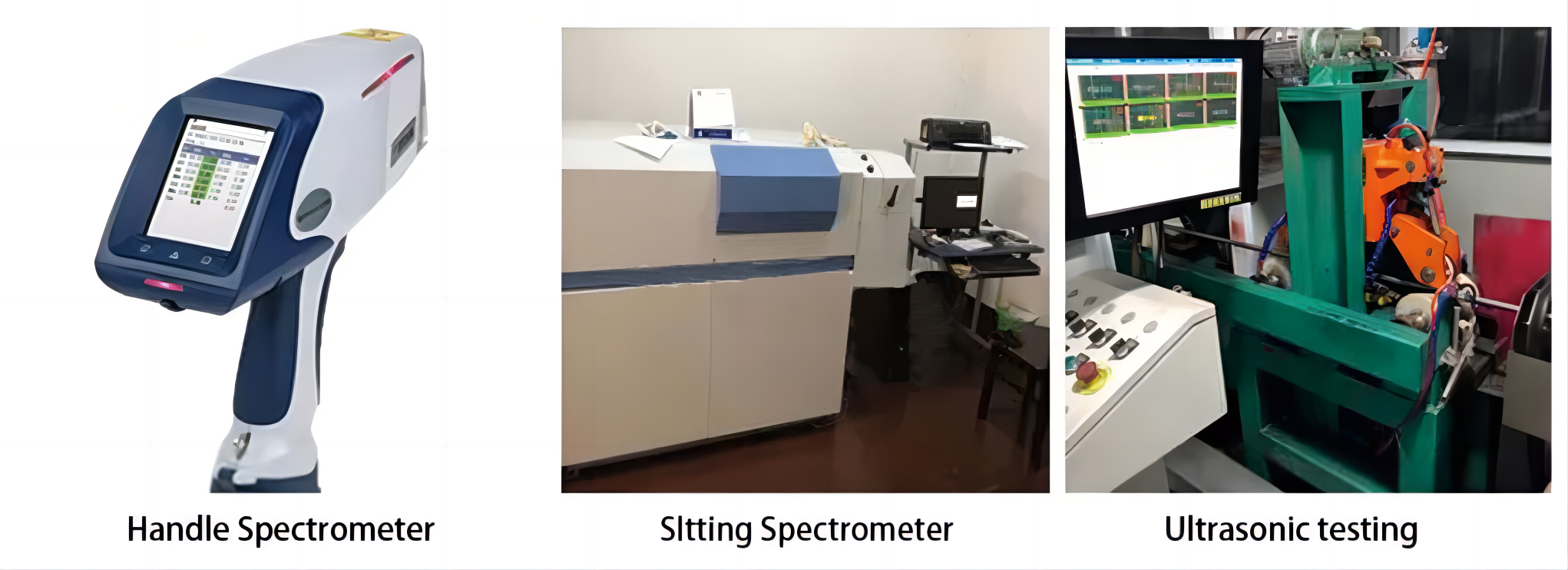

Test

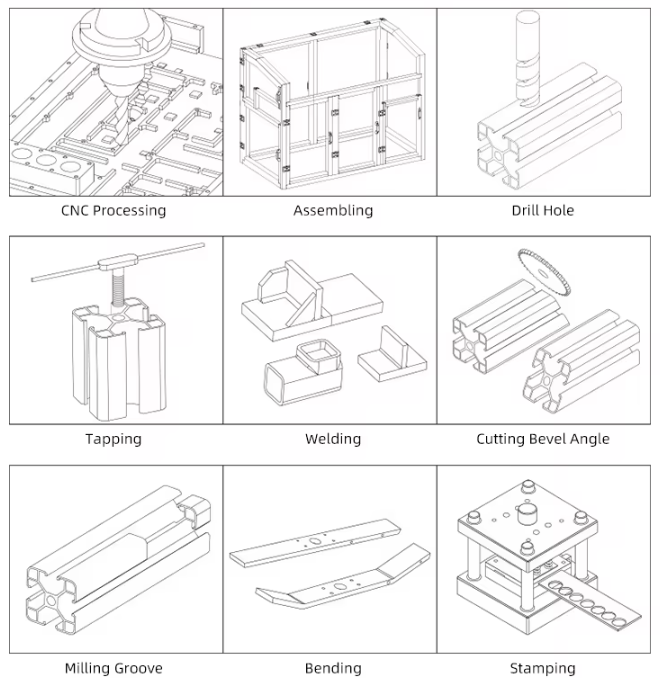

Provided Service

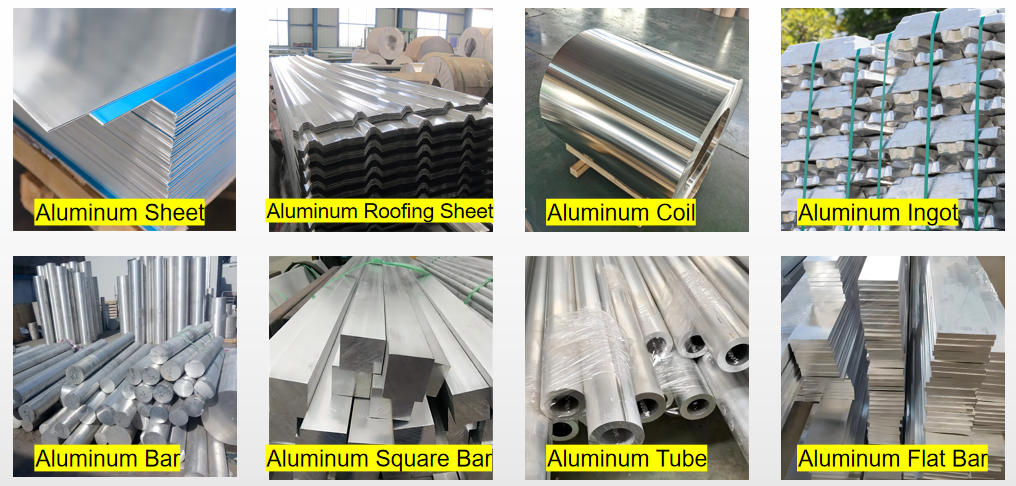

Recommend Products
Application

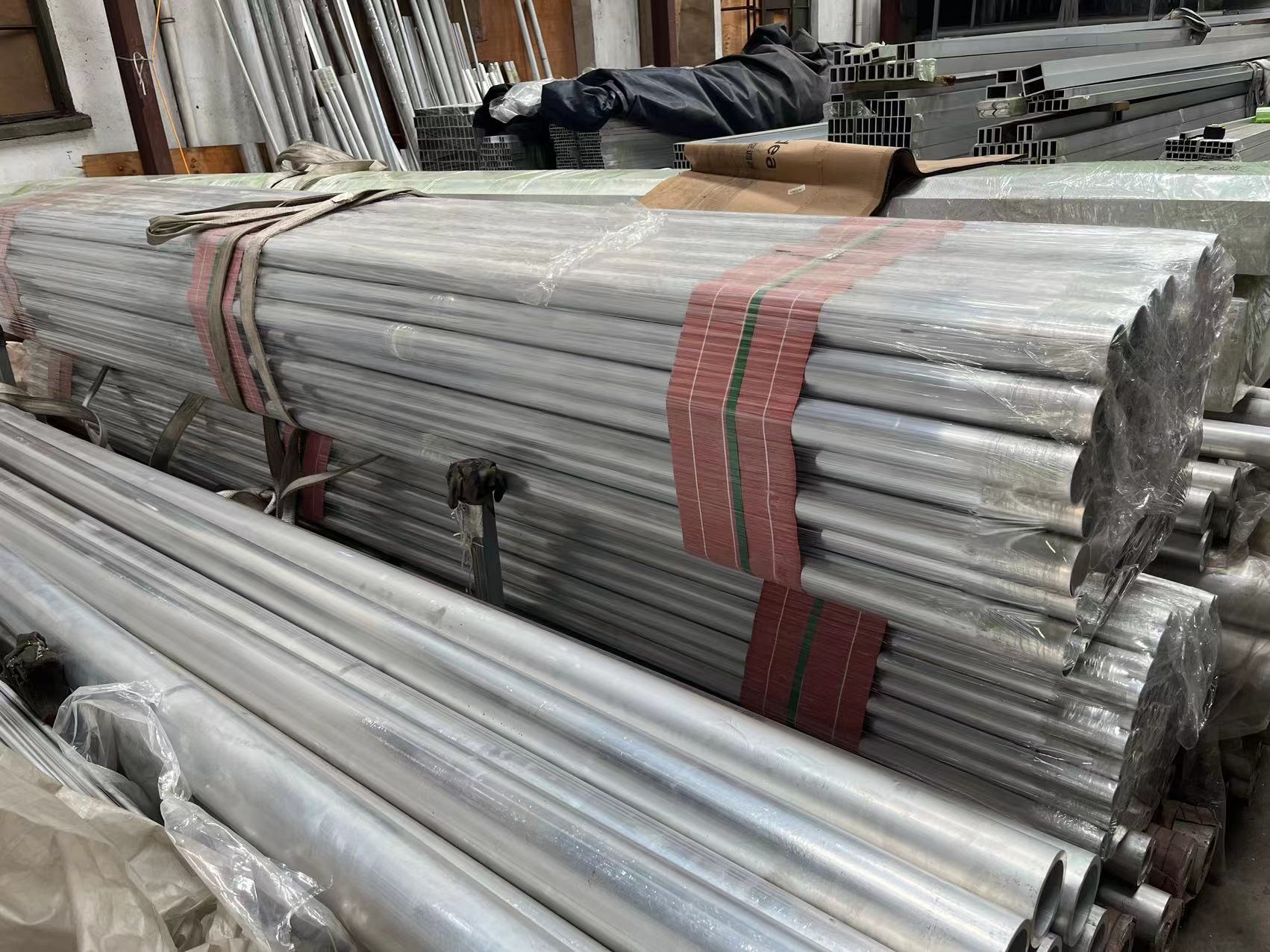

Packing & Shipping
Certificate
FAQ
Q:Can I get some samples?
A: Yes, sample order is available for quality check and market
test. But you have to pay the sample cost and express cost.
Q: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q: What's the lead time?
A: According to the order quantity, small order usually need 3-5
days, big order need negotiation.
|
