Brand Name: | WENYAO |
Model Number: | WYCS3-192 |
Certification: | CE ISO9001 |
Place of Origin: | China |
MOQ: | 1 PCS |
Price: | 12500$-13500$ |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200PCS Per Month |
Delivery Time: | 20 work days |
Packaging Details: | Plywood case package Packing |
Function: | Walnut COLOR SORTER |
Sorting accuracy(%): | more than 99% |
Condition: | New |
Warranty: | 2 Years |
After-sales service provided: | Engineers available to service machinery overseas,Field installation,commissioning and training,Overseas service center available,Field maintenance and repair service |
Application: | walnut color sorting |
Brand of Power Supply: | Meanwell |
HS Code: | 8437101000 |
Features: | Easy to Operate |
Origin: | Hefei |
Company Info. |
Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |
Automatic high sorting performance Walnut Color Sorter kernel and shell separation
17 Years Of Deep Cultivation In Color Sorting, Doubled Production: 17 years of deep cultivation in color sorting, both internal and
external improvements, and doubled production. With new evolution,
improved efficiency and increased production, platform-based
models, upgraded modular structure, load increased by 3-5 times,
feeding and rejection system efficiency increased by 30%, dust
removal optimized by 50%, and production increased by 66%.
Hundreds Of Algorithms To Identify Colors And Shapes: Hundreds of algorithms have been developed to identify colors and
shapes. Shape and color selection by AI empowerment, intelligent
system, identification as fine as 0.15mm, 350 million pixels
ultra-clear resolution, new shape selection algorithm for yellow,
white, transparent, long, round, and broken materials.
Thousand Process Quality Inspections, Consistent Quality: Nearly a thousand process quality inspections, consistent
quality, and excellence. Thousands of quality inspections, quality
control, standardized production, more stable equipment effects,
SOC smart core matching intelligent high-frequency solenoid valve,
blowing thousands of times per second, lower carry-out, higher
clean rate.
Cooperating With 10000+ Customers, Worry-Free After-Sales: Cooperating with tens of thousands of customers, intelligent
interconnection, worry-free after-sales. We are listed brand with
strong strength, we offer customized service 24/7 online, and
real-time response in the cloud. Including user profile creation
for tracking service, equipment can be intelligently interconnected
to achieve remote operation and maintenance.
Technical Parameters:
MODEL | WYCS3-192 |
Chutes/Channels | 3-192 |
Throughput(t/h) | 500 kg /H |
Sorting Aaccuracy | ≥99.99% |
Power | 1600w |
Power Voltage | 180-240V/50Hz |
Air Source Pressure | 0.6-0.8Mpa |
Air Consumption | 800-1800 L/Min |
Weight | 600kg |
Dimension(L*W*H) | 1620*1535*1832mm |

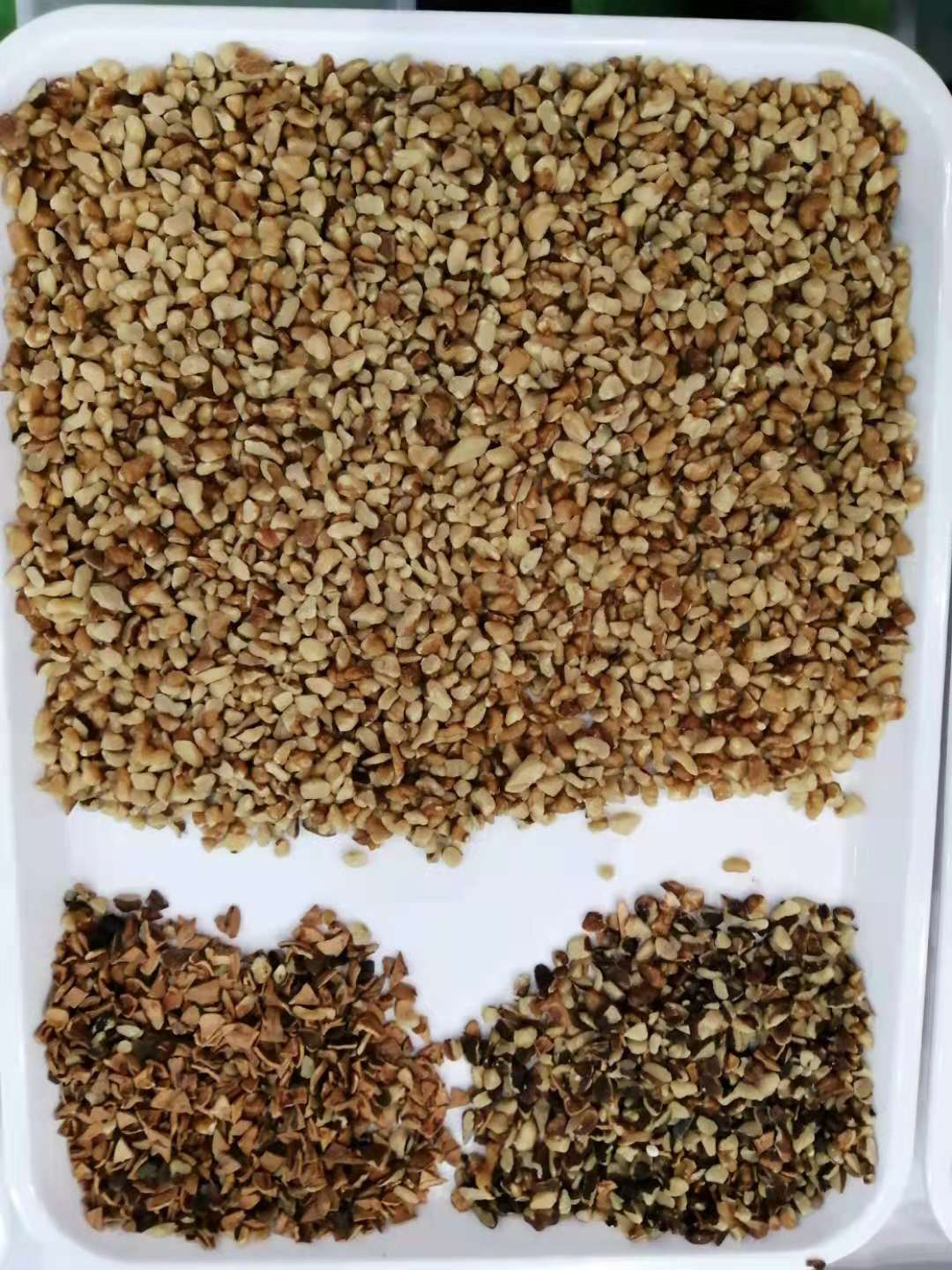

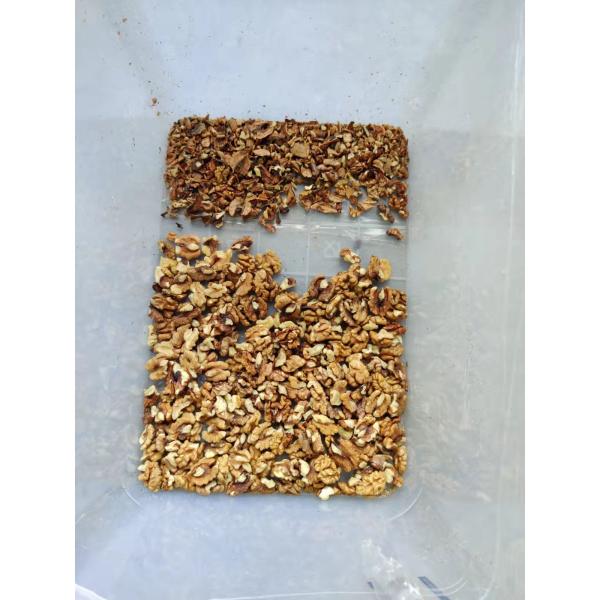

Examples of color sorting:
Intelligent Holographic Flash Camera Compatible with CMOS or CCD image sensors
Flexible switch between visible lens or infrared lens35K high-speed imaging +350 million pixel ultra-clear resolution
LED light source
Flexible Light Source Configuration: For different raw
material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information
acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance.
Dedicated Image Processing Algorithm According to the characteristics of material, use the shape and color combination algorithm; For materials with
complex colors, the machine sorts materials more directly and accurately by using HSV-changed color space sorting method.
High-Quality Solenoid Valve
Use High-quality,high-frequency,long service life ejecter, super low air consumption guaranteed the biggest capacity, excellent rejection output. For the different sizes and
characteristics of material particle, use the solenoid valve of different sizes.
Simple Operation
Simple optical system design, precise automatic correction system, combined with the well-designed human-
machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
Product Features:
![]() |
