ASTM A653 Stucco Wire Mesh 27*96 Inch Self Furring Expanded Metal Lath

ASTM A653 Stucco Wire Mesh 27*96 Inch Self Furring Expanded Metal Lath

Product Description

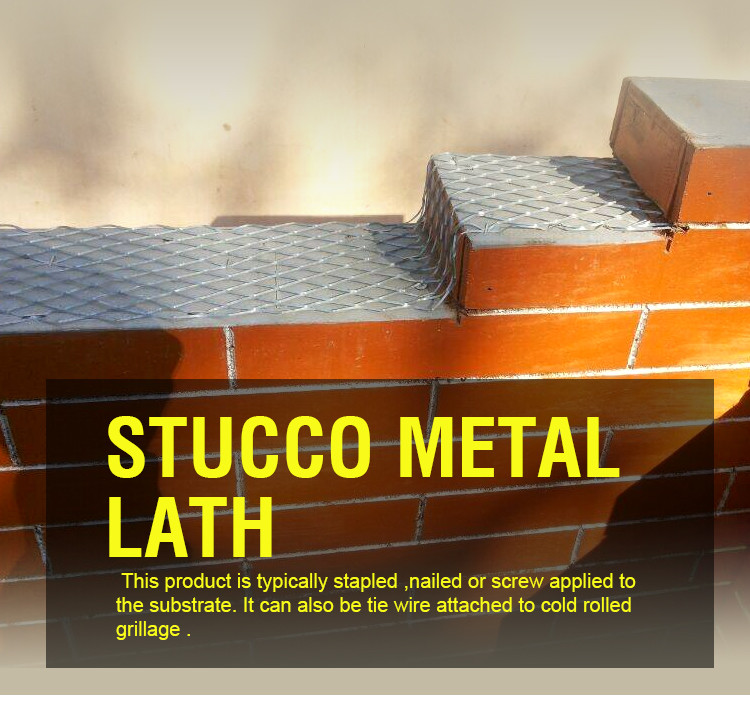

This lath is produced with ASTM A 653 standard specification for steel sheet, zinc coated or zinc iron alloy coated by hot dip process .Diamond metal lath is a versatile metal lath ideal as a plaster base and reinforcement for all type of walls ,ceilings and fireproofing of steel beams and columns.

Product Specification

Product features:

1. 1.75lbs / 2.5lbs / 3.4lbs per sheet

2. Interior and exterior applications

3. Used as a renforcement for a base coat

4. Easily cut and formed for curved surfaces

5. Resists mold, fire and insect damage

6. Flexibility:readily shaped to ornamental degree not possible with other plaster bases.

7. Security: metal lath and plaster surfaces are extremely difficult to penetrate,provide excellent protection against penetration or forced entry.

Product application:

The difference between flat diamond metal lath,self furring dimpled,self furring grooved lath

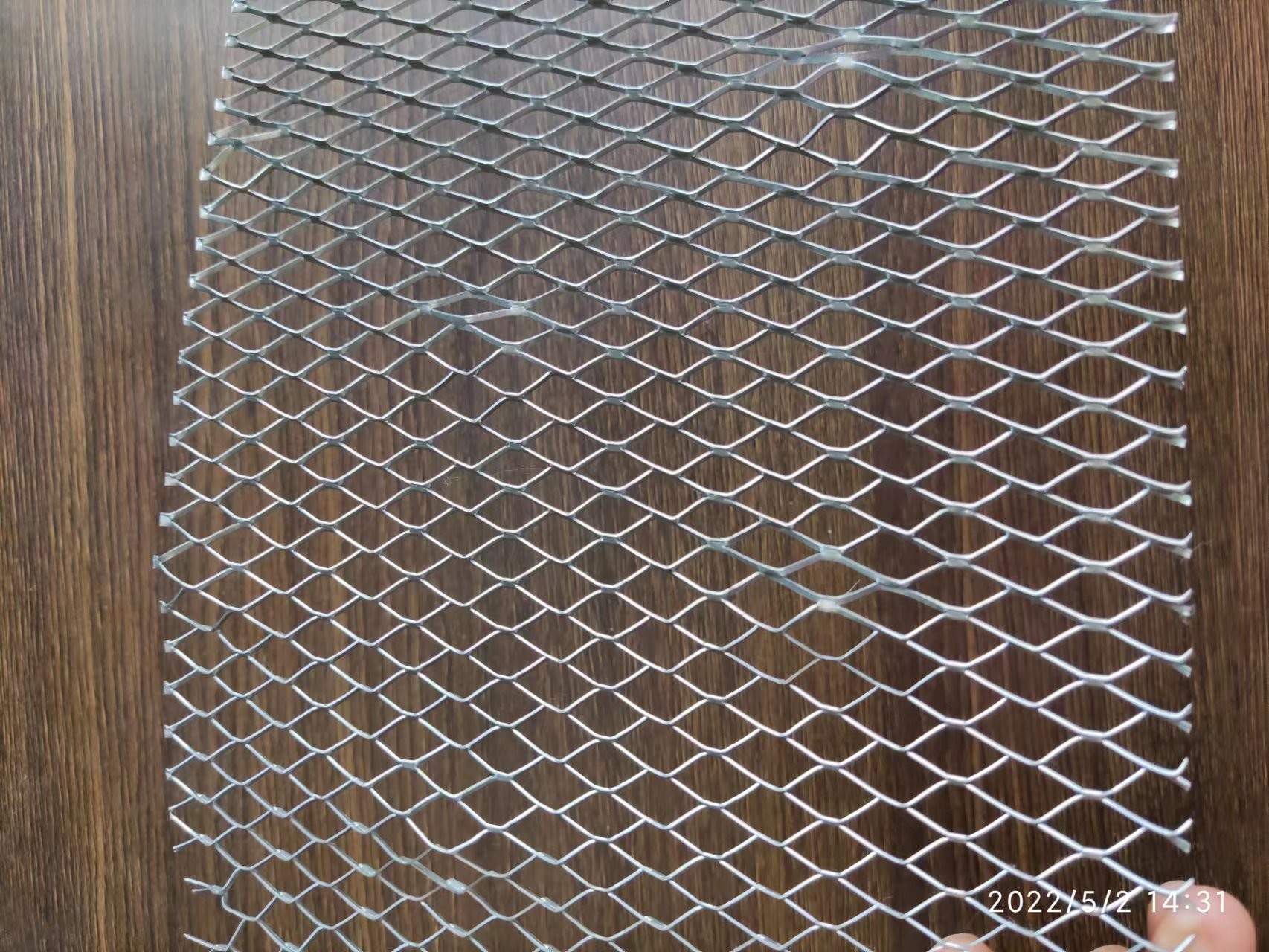

1.Flat diamond metal lath

Diamond metal lath is a versatile base for cement plaster walls.it is carefully formed diamond keys allow for proper embedment and keying of scrated coat on all types of walls. Can be used with hand and machine applied plaster.

2.Self furring dimpled metal lath

Self furred diamond metal lath "dimpled" is manufactured with a 1/4" dimples in the lath.The dimples provide the necessary 1/4‘ furring off the sheathing's surface to allow for proper embedment and keying of the scrated coat on all types of walls.

3.Self furring grooved metal lath

Self-furring groove diamond metal lath is manufactuered with approximately 1/4" deep grooves and 5 grooves per sheet to ensure throught plaster penetration and strong mechanical bond.

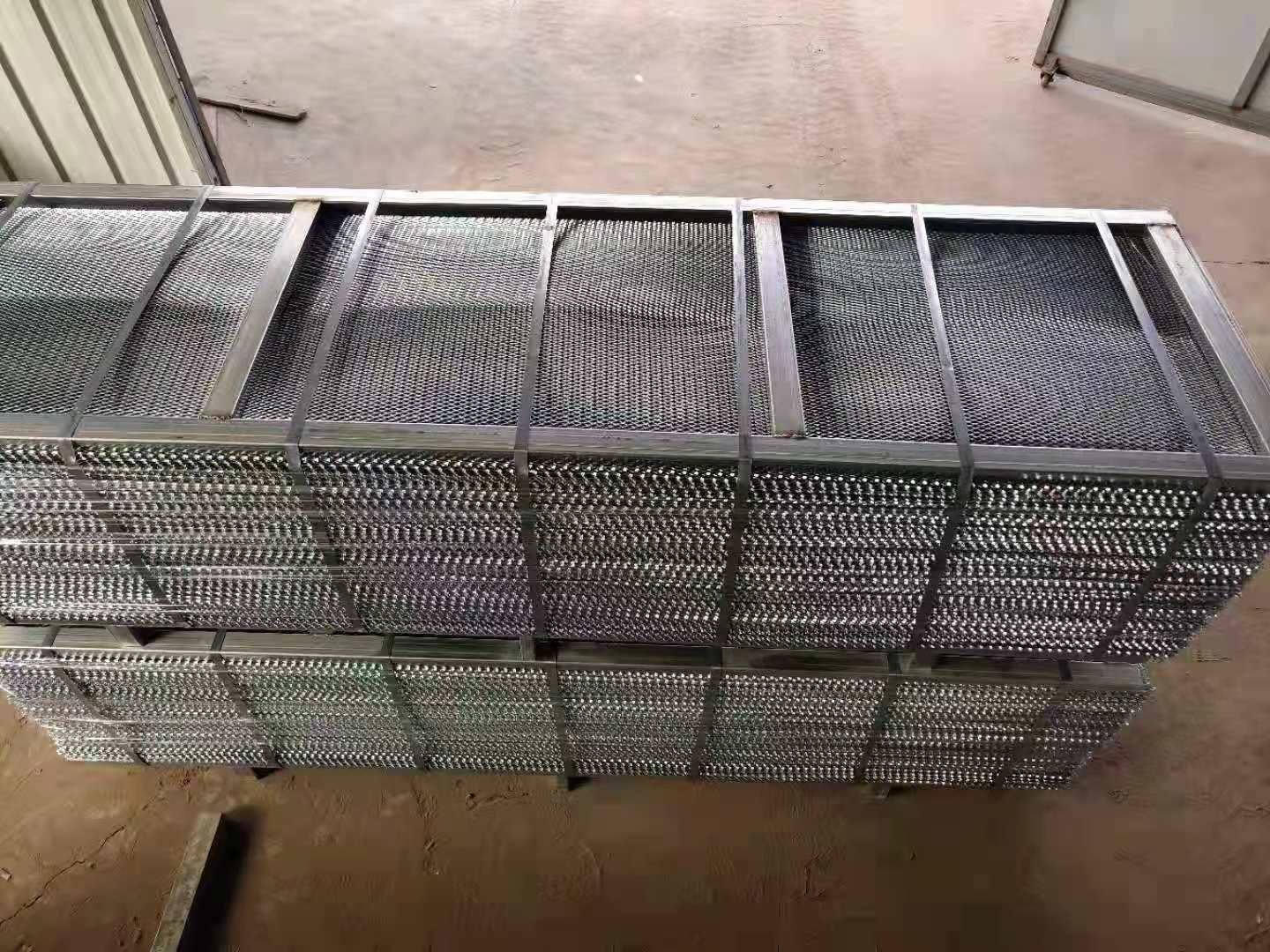

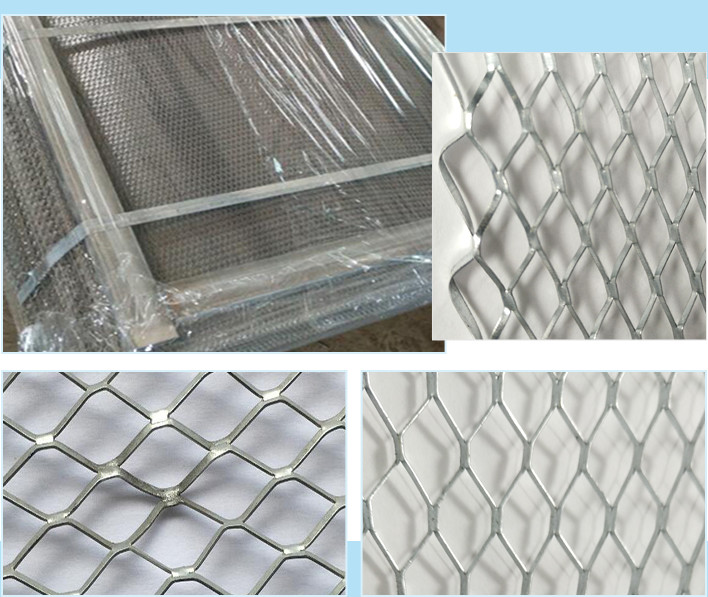

Product Package:

→ Founded in 2000, located in ANPING COUNTY, CHINA.
→ Covering an areas of 20000 sqm ,specialized in architectural decorative mesh , construction building mesh , SS 304 fine filter mesh, walkway grating products.
→ With more than 15 years rich experience in this field . Velp has adopted modern management systems to ensure product quality.
→ Mainly markets: Australia, Germany ,France ,UK, Spain, Sweden ,Switzerland , Norway,Italy ,USA ,Canada ,Brazil, Panama,Middle East ,Southeast Asia.
→ We sincerely believe that with superior products ,reasonable price and comfortable services. That we can cooperate well with every customer.
