| Categories | MEMS Based Accelerometer |
|---|---|
| Brand Name: | RION |
| Model Number: | AKF398 |
| Place of Origin: | Shenzhen |
| Certification: | CE |
| MOQ: | 1pcs |
| Price: | $235.00/Pieces |
| Payment Terms: | T/T, , Paypal |
| Supply Ability: | 3000 PCS/MONTH |
| Delivery Time: | 7 days for samples |
| Packaging Details: | 1pcs vibration sensor in each inner box , 50pcs/ctn |
| Measuring Axial: | X,Y,Z Axis |
| Frequency response: | 500HZ |
| Measure Range: | 2~40g |
| Deviation Calibration: | <1mg |
| Output current: | 4~20mA |
| Resonant frequency: | 2.4/5.5 KHz |
| Sensitivity (± 10%): | 0.2~4mA/g |
| Bandwidth (3Db): | 1000HZ |
| Company Info. |
| Shenzhen Rion Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The AKF398 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.
 AKF398 | PARAMETER | UNIT | |||||
| Range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation Calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measuring Axial | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | axis |
| Up/Off Power Repeatability | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 4 | 2 | 1 | 0.8 | 0.4 | 0.2 | mA/g |
Deviation | 0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS(max) |
| Frequency response | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3Db) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral vibration sensitivity ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonant frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 12mA | <0.005 | <0.005 | <0.005 | <0.003 | <0.003 | <0.003 | mA |
| Output current | 4~20mA | ||||||
| Input(VDD_VSS) | 9~36 VDC | ||||||
| Running current consumption | <60mA @ 12 VDC | ||||||

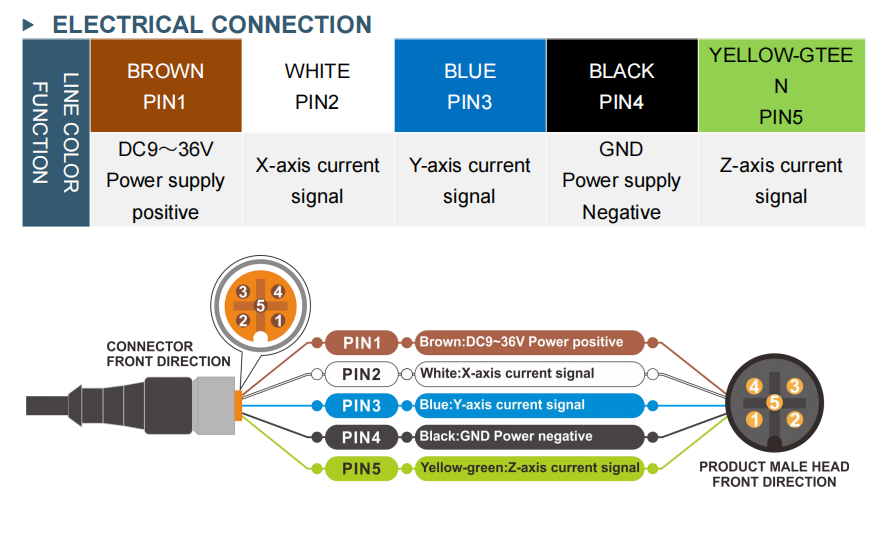

| Connector | Industrial Standard M12 Connector | ||||||
| Protection grade | IP67 | ||||||
| Weight | Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g | ||||||
| Size | Product size: 34.3*34.3*38.5mm Magnetic adsorption base size: 34.23*34.23*8.1mm L-shaped adapter plate size: 36*44*15mm | ||||||
★ Traffic system monitoring, roadbed analysis and high-speed
railway fault detection
★ Large machinery, engine
★ Low frequency vibration and automatic monitoring
★ Medical equipment
★ Bridge
★ Vehicle
★ Road roller
|
