File Format Compatible Ejon Y20L Automatic 3D Sign Bending Machine for Channel Letters

File Format Compatible Ejon Y20L Automatic 3D Sign Bending Machine for Channel Letters

File Format Compatible Ejon Y20L Automatic 3D Sign Bending Machine for Channel Letters
File Format Compatible Ejon Y20L Automatic 3D Sign Bending Machine for Channel Letters
Categories Channel Letter Equipment
Place of Origin: Tianjin, China
Brand Name: EJON
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2023
Warranty of core components: 1 Year
Core Components: Motor, servo
Material / Metal Processed: ALLOY, Stainless steel, Galvanized steel, Aluminum plate,
Automation: Automatic
Warranty: 1 Year
Weight (KG): 450
Key Selling Points: High Productivity
Applicable Industries: Printing Shops, Advertising Company, Construction works
Showroom Location: Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Pakistan, Russia, Spain, Thailand, Kenya, South Korea, Sri Lanka, Ukraine, Malaysia, Australia
Product name: Y20L channel letter bending machine
Function: Auto Feeding+bending+slotting
Voltage: 220V 50Hz 2.0Kw
File Format: Dxf.Plt.Ai
Package size: 1410*780*1600mm
Suitable material: Stainless steel, galvanized sheet and flat aluminum
Material thickness: 0.4-1.2mm
Min.Bending Angle: R6
Control system: 4 axis control system
Machine weight: 400Kg
Packaging Details: The export wooden box
Port: Tianjin
Supply Ability: 2000 Set/Sets per Year
Price: $9,000.00/sets 1-2 sets
Contact Now
Company Info.
Tianjin Ejon Flying Science And Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

File Format Compatible Ejon Y20L Automatic 3D Sign Bending Machine for Channel Letters

Product Description

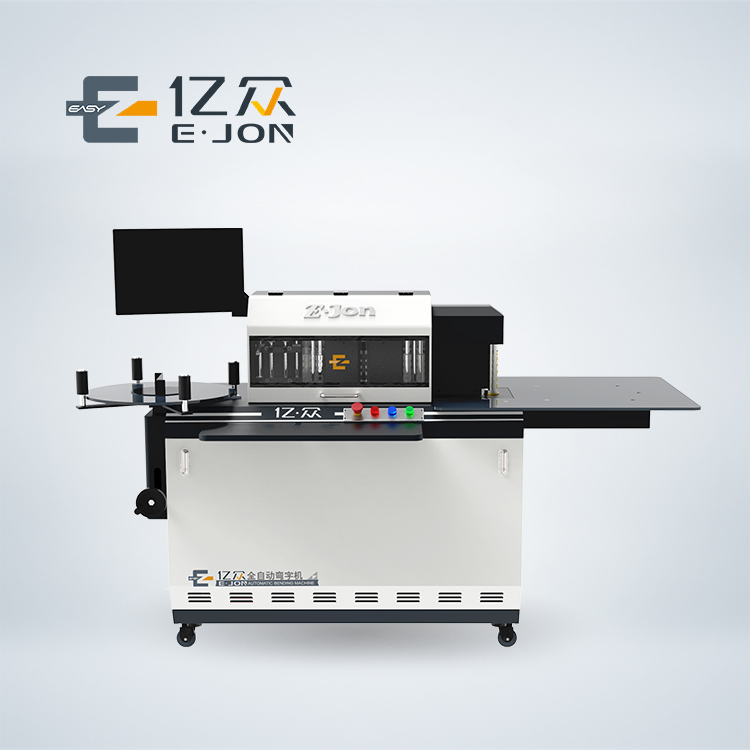

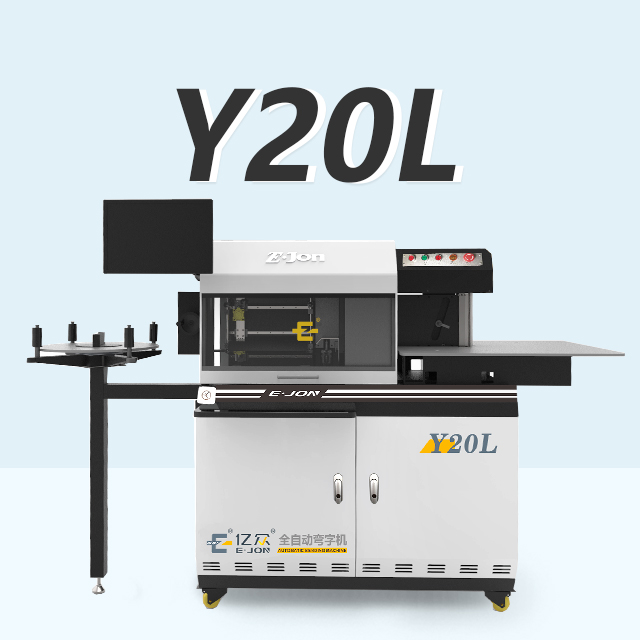

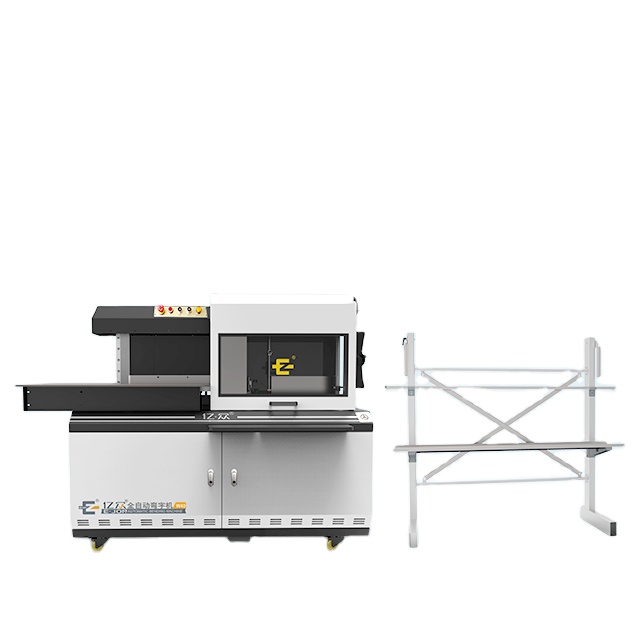

Ejon Y20L Automatic 3D Sign Channel Letter Bending Machine
Advertising Acrylic LED Signs Edge Bending Machine

Ejon Y20L is a multi-functional automatic channel letter bending machine.
maquinas para hacer numeros metalicos, doblador de letras de canal de acero inoxidable, ماكينة الانحناء للحروف
Using mechanical hand alternately feeding structure, the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings, avoid scratching to the material while improving the feeding holding.

Plane cutter can slot all kinds of materials. The linear guide way is matched with the ball screw, with 750 W high-power servo motor, greatly improved the feeding speed and stability.


Double bends alternate bending structure, the bend is widened to 20 cm. The ductile iron casting structure has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the stability of high-speed bending.

SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding system
Slotting System
Alloy Plane cutter slotting system
Bending System
Double tools alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate
Material Height
Stainless steel, Galvanized steel, Aluminum plate:10~200mm
Material Thickness
0.4~1.2mm
Accuracy
±0.1mm
Min. Bending Angle
R6
File Format
Dxf.Plt.Ai
Power
AC220V, 50Hz, 2.0kW
Control System
4 axis control system (2 axis servo control) 4aixs servo control as choice

Detailed Images

Main Features

1) The bending system adopts structural castings and is integrally cast to ensure the stability of high-speed bending.

2) The feeding structure adopts double ball screw matched with nylon gear transmission ensuring the precise positioning, smooth feeding, greatly improving the feeding speed and stability.

3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

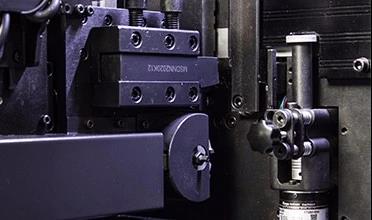

Machine Parts

The double feeding holder ensures the smooth feeding and avoid warping.

Main Features

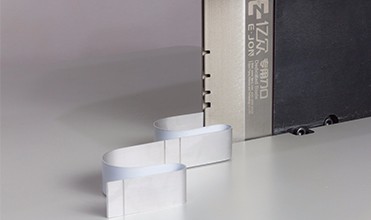

The monobloc casting of Bending Mechanism has high molding degree which ensures the bending speed and stability.

Machine Parts

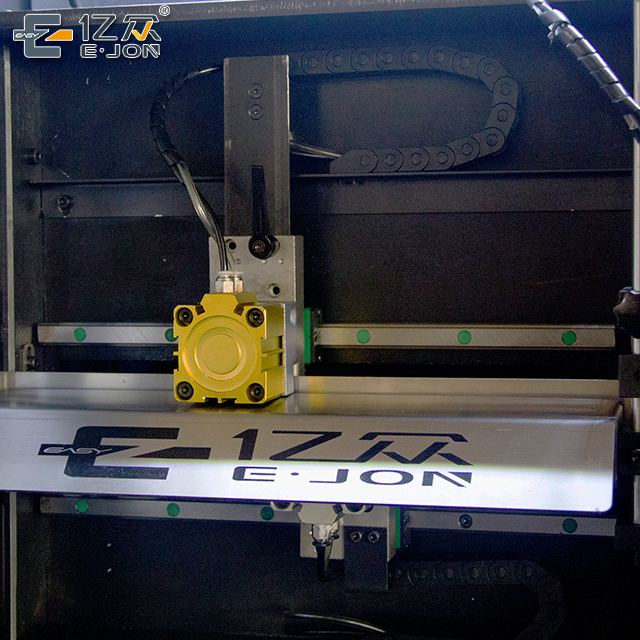

Alloy plane cutter for Galvanized sheet, Stainless steel, Aluminum plate.
Each cutter has 8 angles, can be used about one month, costs about 5 USD.

Main Features

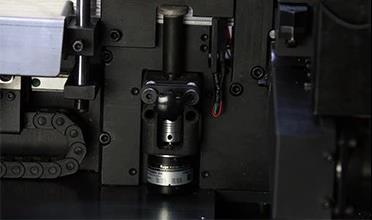

Steel coupling ensures the bending molding and bending speed.

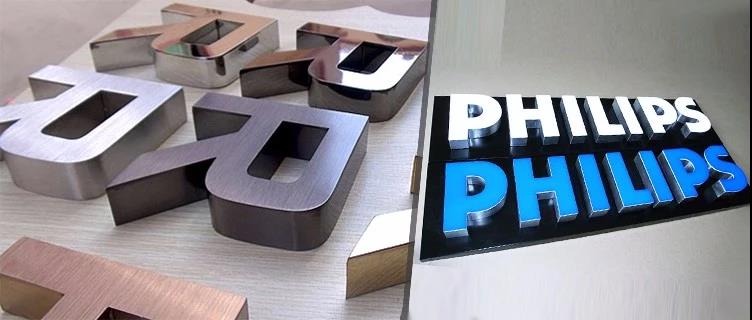

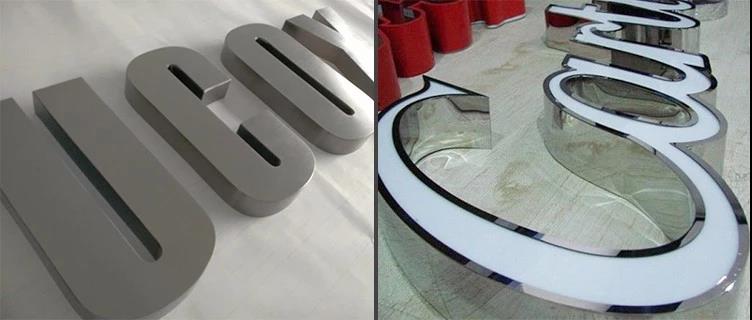

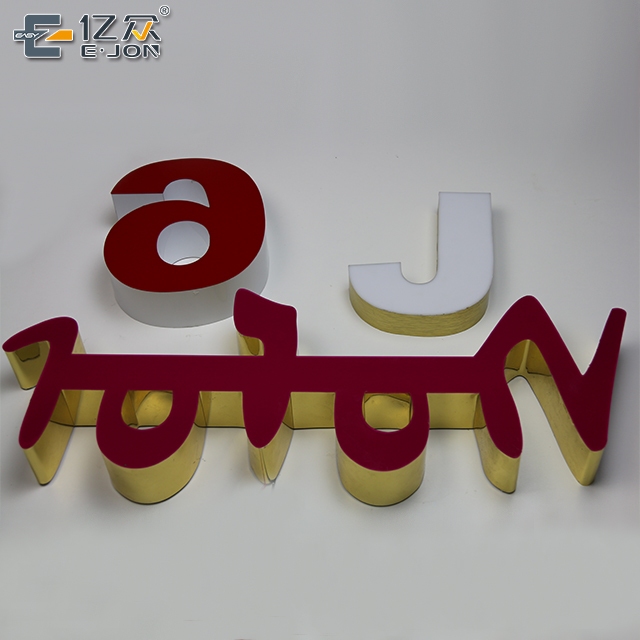

Sample Letter Show

Exibition

Supporting Facility

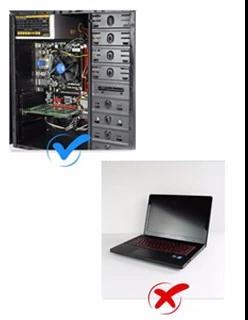

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

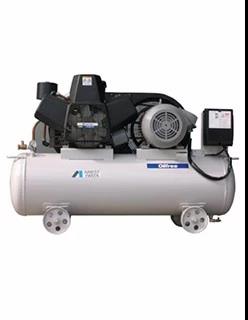

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Engineers available to service machinery overseas.

1.Whole machine with one year warranty.
2.Free training course at our plant or on line. We also provide our technicians for on-site training if you need.
3.After the warranty period, we will provide the consumable parts at an agency price when you need replacement.
4.Whole machine checking before delivery.
5. After machine arrived, you just need connect power supply, software etc, it's more easily for you. If you're worried, we can take a teaching video for you at that time.
6.After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE Certification for helping you pick up your machine.

CHAT WITH ME NOW!

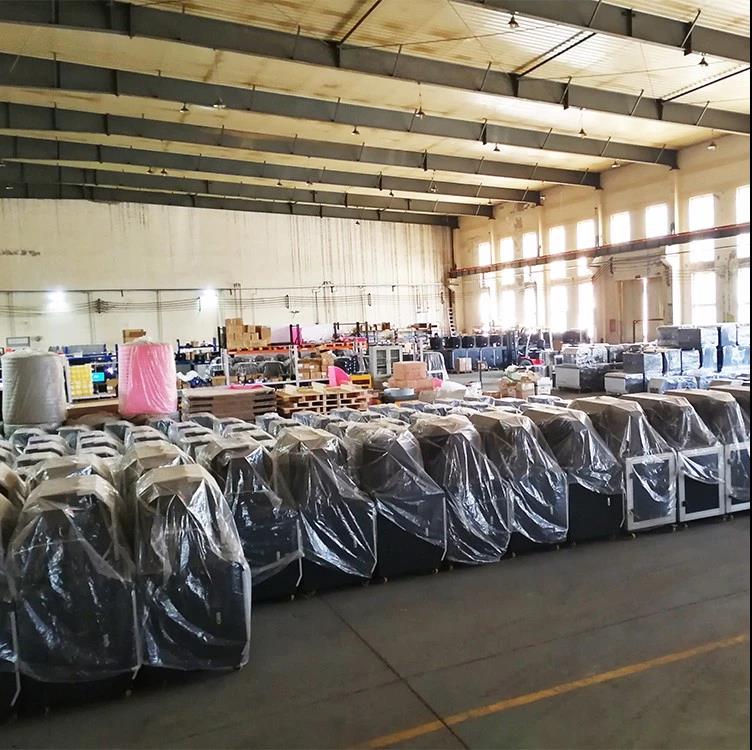

Packing & Delivery

* Size：1410*780*1600mm
* Weight：450KG

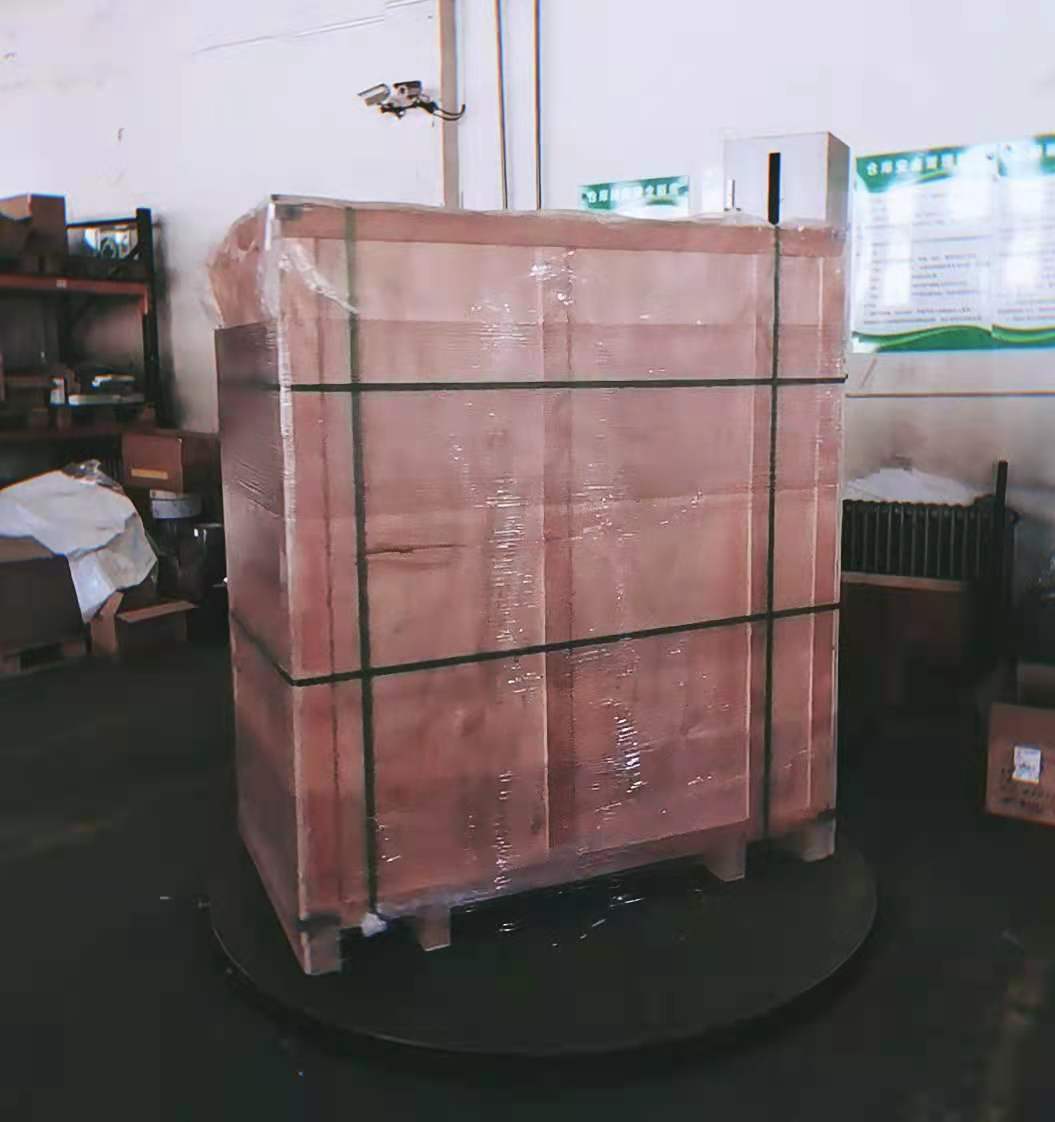

* Packaging details：The normal package is fumigated wooden box(Size: L*W*H). If container is too tight, we will use PE film for packing or pack it according to customers' special request.

About us

WELCOME TO VISIT OUR STORE by just a CLICK HERE!

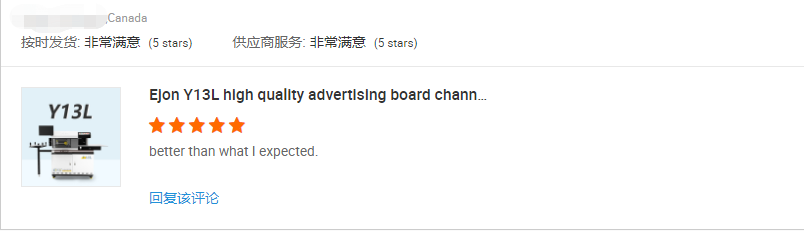

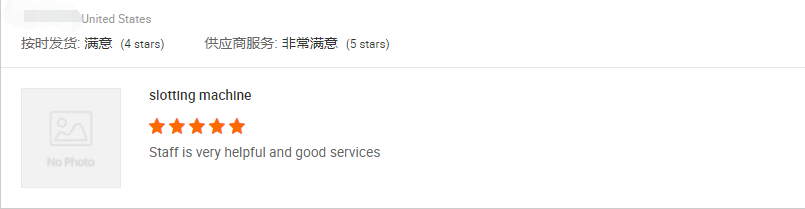

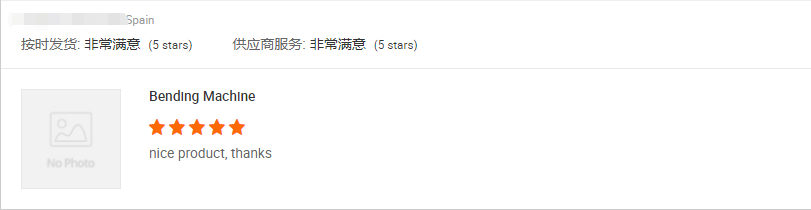

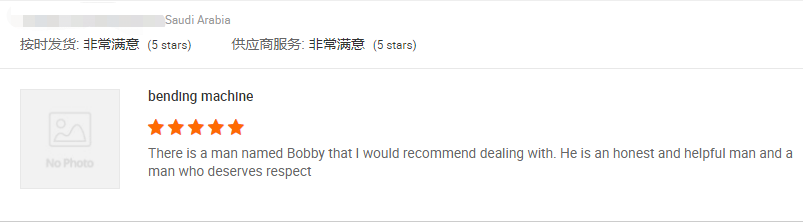

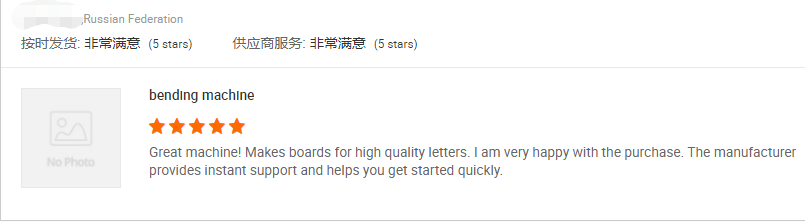

Customers Feedback

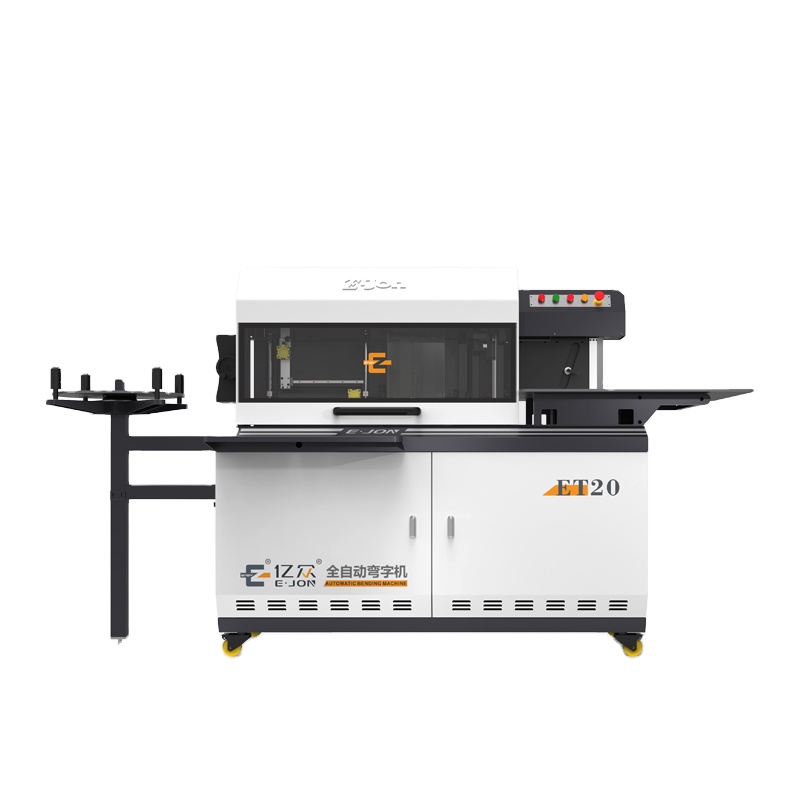

Recommended Products
