| Categories | Universal Testing Machines |
|---|---|
| Brand Name: | KINSGEO |
| Model Number: | KJ-1065 |
| Certification: | CE/ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD/2900/SET |
| Payment Terms: | T/T |
| Supply Ability: | 30Sets/month |
| Delivery Time: | 15 work days |
| Power: | AC220V 50Hz |
| Usage: | Universal Testing Machine |
| Weight: | 1000 Kg |
| Product name: | High quality 50kn electronic universal tensile testing machine |
| Power supply: | 220V 50Hz |
| Application: | universal tester |
| Standard: | ASTM E8/A370/ISO 75001 |
| Motor: | Panasonic Servo Motor |
| Warranty: | 1 Year |
| Accuracy: | +/-0.5% |
| Capacity: | 200 |
| Stroke: | 650mm(excluding clamp) |
| Measuring accuracy: | the value ±1%/ the value±0.5% |
| Effective measuring range: | 0.2%~100%(1grade) /0.4%~100% (0.5 grade) |
| Operation: | Computer windows operation |
| Company Info. |
| GUANGDONG KEJIAN INSTRUMENT CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

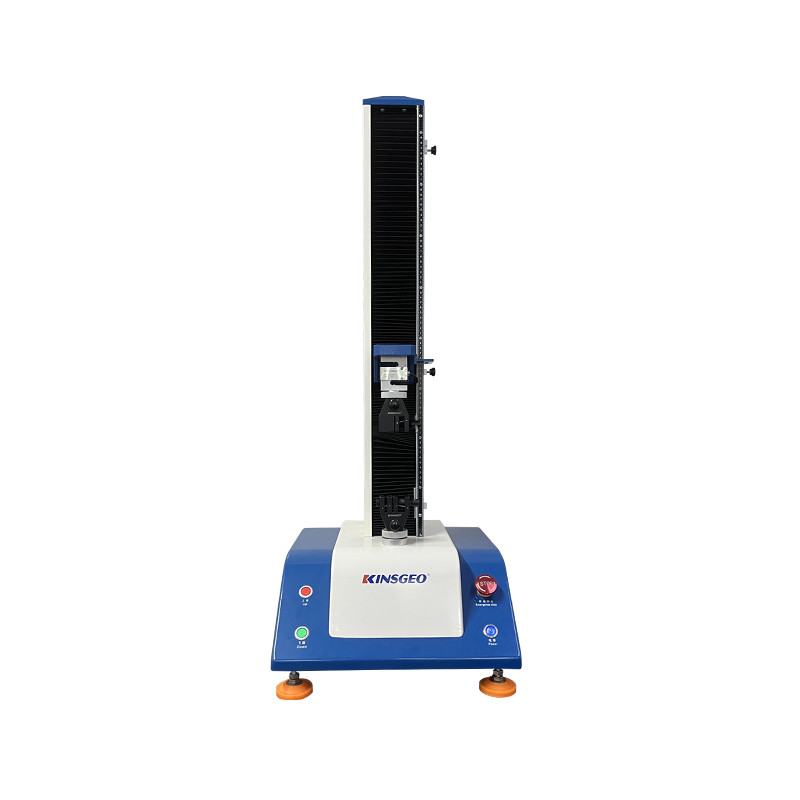

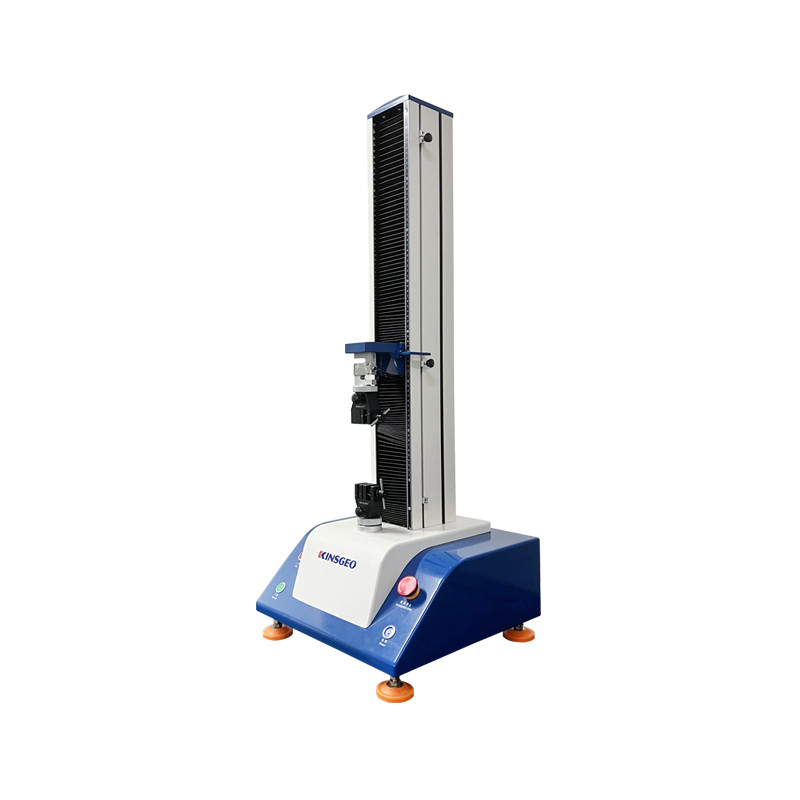

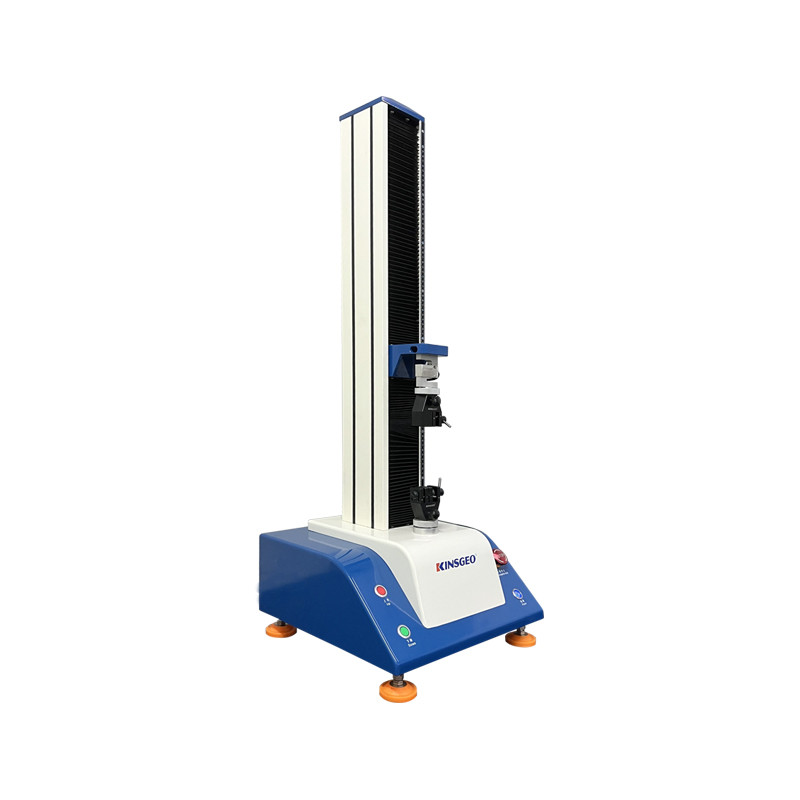

500kg universal tension testing machine paper tearing strength tester
Usage
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Product Design Standard
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453,ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.
Product Description
A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
B. Having steady performance, high accuracy, powerful software function and easy operation.
C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.
| Range of speed | 0.5-1000mm/min |
| Motor | Japan Servo Motor |
| Capacity choice | 1.2.5.10.20.50.100.200.500kg optional |
| Resolution | 1/250,000 |
| Effective testing space | 120mm max |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, air clamp |
| Weight | 80KG |
| Dimension | (W×D×H) 58×58×125cm |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
|
