Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant

Categories Orthopedic Surgical Instruments
Brand Name: Gather
Model Number: 3502
Certification: CE/ISO
Place of Origin: Jiangsu ,China
MOQ: 1 pc
Price: $33-45
Payment Terms: L/C, T/T, , D/A, Western Union
Supply Ability: 3000pc/month
Delivery Time: 5-15 work days
Packaging Details: Non sterilized , PE bag , carton package
Properties: Orthopedic Surgical Instruments,The Basis of Surgical Instruments,Neurosurgery Instruments
Material: Stainless Steel,Medical aluminum
Application: Orthopedic Instruments,Neurosurgery / Spine Surgery,Large Fragment Instruments,Trauma Operation
Color: Silver,Gray
Usage: orthopedic Implants,Trauma Instruments Set,Medical Surgery,Orthopedic Surgery
Name: orthopedic surgical instruments,vascular surgical instruments,Kerrison Rongeurs Cervical Spine Instruments,Titanium cable instrument set
Function: Surgery Medical
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

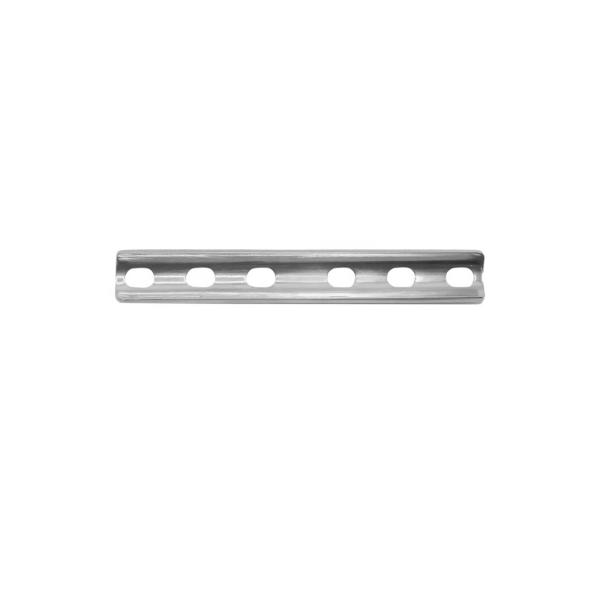

Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant


Introduction

A dynamic compression plate (DCP) is a metallic plate used in orthopedics for internal fixation of bone,typically after fractures. As the name implies, it is designed to exert dynamic pressure between the bone fragments to be transfixed. Dynamic compression is achieved either by attaching a tension device to a plate or by using a special dynamic compression plate. However, compression plating requires a longer surgical incision to allow insertion of the tension device and the possibility of refracture after the plate is removed. A neutralization plate is used to bridge a comminuted fracture; it also transmits bending or torsional forces from the proximal to the distal fragment. Plates used for buttressing prevent collapse by supporting an area of thin cortex or cancellous bone graft.



Product No.SpecificationLength * Width * ThicknessMaterial
3502-(A/S)10066 Holes109*14*4.6Pure Titanium

Stainless Steel
3502-(A/S)10077 Holes125*14*4.6
3502-(A/S)10088 Holes141*14*4.6
3502-(A/S)10099 Holes157*14*4.6
3502-(A/S)101010 Holes173*14*4.6
3502-(A/S)101111 Holes189*14*4.6
3502-(A/S)101212 Holes205*14*4.6
3502-(A/S)101414 Holes237*14*4.6


  • Narrow Dynamic Compression Plate . These plates are indicated for the fixation of various long bones, such as the humerus, tibia, and femur. These are also used in the fixation of peri-prosthetic fractures, osteopenic bone, and fixation of nonunions or malunions in adult patients.
  • It is particularly used as a tension band plate for the fracture of the humerus and tibia.
  • It is not indicated for fractures of the femur.
  • All holes are designed as self-compressing holes. All the end holes are designed for cancellous bone screws.
  • Indication: As a neutralization and tension band plate on the tibia (not intended for the femur).
