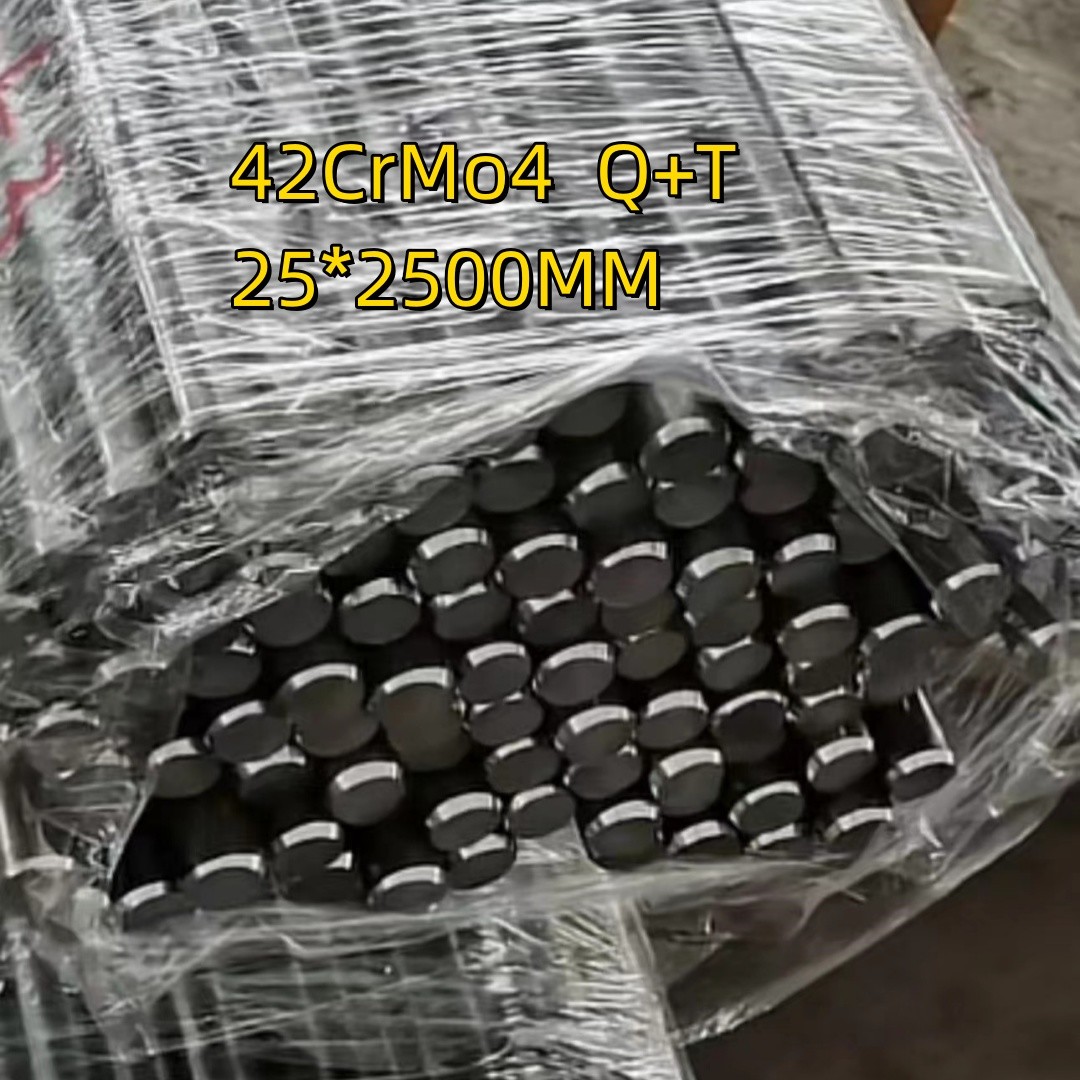

42CrMo4 Q+T Φ25x2500mm Cold Drawn Alloy Steel Bar 42CrMo4 Normalized Quenched

Categories	Steel Round Bar
Brand Name:	TSING SHAN
Model Number:	42CrMo4
Certification:	ISO MTC SGS
Place of Origin:	China
MOQ:	1 Ton
Price:	880 USD/TON
Payment Terms:	L/C, Western Union, T/T
Supply Ability:	500Tons
Delivery Time:	7 Days
Packaging Details:	Wooden Pallet
Steel grade:	Alloy Steel
Alloy or not:	Is Alloy
Technique:	Hot Rolled,Cold Drawn
Type:	Alloy Steel Bar
Standard:	ASTM,DIN
Shape:	Round
Product name:	42CrMo4 qt alloy steel round bars
Heat treatment:	Normalized +Annealed +Quenched + Tempered

Contact Now

Add to Cart

Company Info.

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

42CrMo4 Q+T Φ25x2500mm Cold Drawn Alloy Steel Bar 42CrMo4 Normalized Quenched

42CrMo Steel Specification Φ16x2500mm Cold Drawn Alloy Steel 42CrMo4 Normalized Quenched

AISI 4140 Scm440 42CrMo4 1.7225 En19 709m40 Hot Forged Alloy Round Bar Steel

AISI 4140 Scm440 42CrMo4 1.7225 En19 709m40 Hot Forged Alloy Round Bar Steel

1: AISI 4140 steel introduction
AISI 4140 is defined as a low alloy steel which has 1% Cr-Mo as strengthening alloy elements.Compared with AISI 4130, it has a higher carbon content with good balance of strength, toughness ,abrasion and impact resistance and heat treatment capabilities,but poor in weldability characteristics.AISI 4140 is generally supplied in quenched and tempered condition with hardness 28-32HRC

2: AISI 4140 Steel equivalent

Country	China	Japan	Germany	USA	British
Standard	GB/T 3077	JIS G4105	DIN (W-Nr.) EN 10250	AISI/ASTM ASTM A29	BS 970
Grade	42CrMo	SCM440	42crmo4/1.7225	4140	EN19/709M40

3: AISI 4140 steel chemical composition

Grade	C	Si	Mn	P	S	Cr	Mo	Ni
42CrMo	0.38-0.45	0.17-0.37	0.5-0.80	≤0.035	≤0.035	0.9-1.2	0.15-0.25	-
SCM440	0.38-0.43	0.15-0.35	0.6-0.85	≤0.035	≤0.04	0.9-1.2	0.15-0.30	-
42crmo4/1.7225	0.38-0.45	≤ 0.4	0.6-0.9	≤0.025	≤0.035	0.9-1.2	0.15-0.30	-
4140	0.38-0.43	0.15-0.35	0.75-1.00	≤0.035	≤0.04	0.8-1.1	0.15-0.25	-
EN19/709M40	0.35-0.45	0.15-0.35	0.5-0.80	≤0.035	≤0.035	0.9-1.5	0.2-0.40	-

4: AISI 4140 steel mechanical properties(for guidance only)

Grade	Tensile strength σb(MPa)	Yield strength σs (MPa)	Elongation δ5 (%)	Reduction ψ (%)	Impact Value Akv (J)	Hardness
4140	≥1080	≥930	≥12	≥45	≥63	28-32HRC

5: AISI 4140 steel overviews

Size	Round	Dia 6-1200mm
	Plate/Flat/Block	Thickness 6mm-500mm
		Width 20mm-1000mm
Heat treatment	Normalized ; Annealed ; Quenched ; Tempered
Surface condition	Black; Peeled; Polished; Machined; Grinded; Turned; Milled
Delivery condition	Forged; Hot rolled; Cold drawn
Test	Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment terms	T/T;L/C;/Money gram/ Paypal
Trade terms	FOB; CIF; C&F; etc..
Delivery time	30-45 days
Application	AISI 4140 steel finds many applications as forgings for the aerospace,oil and gas,automotive, agricultural and defense industries etc. Typical applications for 4140 steel uses include:forged gears,spindles,fixtures,jigs,collars,Axles,conveyor parts,crow bars,logging parts,shafts,sprockets,studs,pinions,pump shafts, rams, and ring gears etc

6: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
