Tiny1-C Micro Thermal Imaging Mini Low power consumption Camera Module

Categories OEM Camera Modules
Brand Name: Sinoseen
MOQ: 10
Payment Terms: T/T
Supply Ability: 50000per month
Delivery Time: 7-10 work days
Application: Mobile phones, PDA, Thermometers;

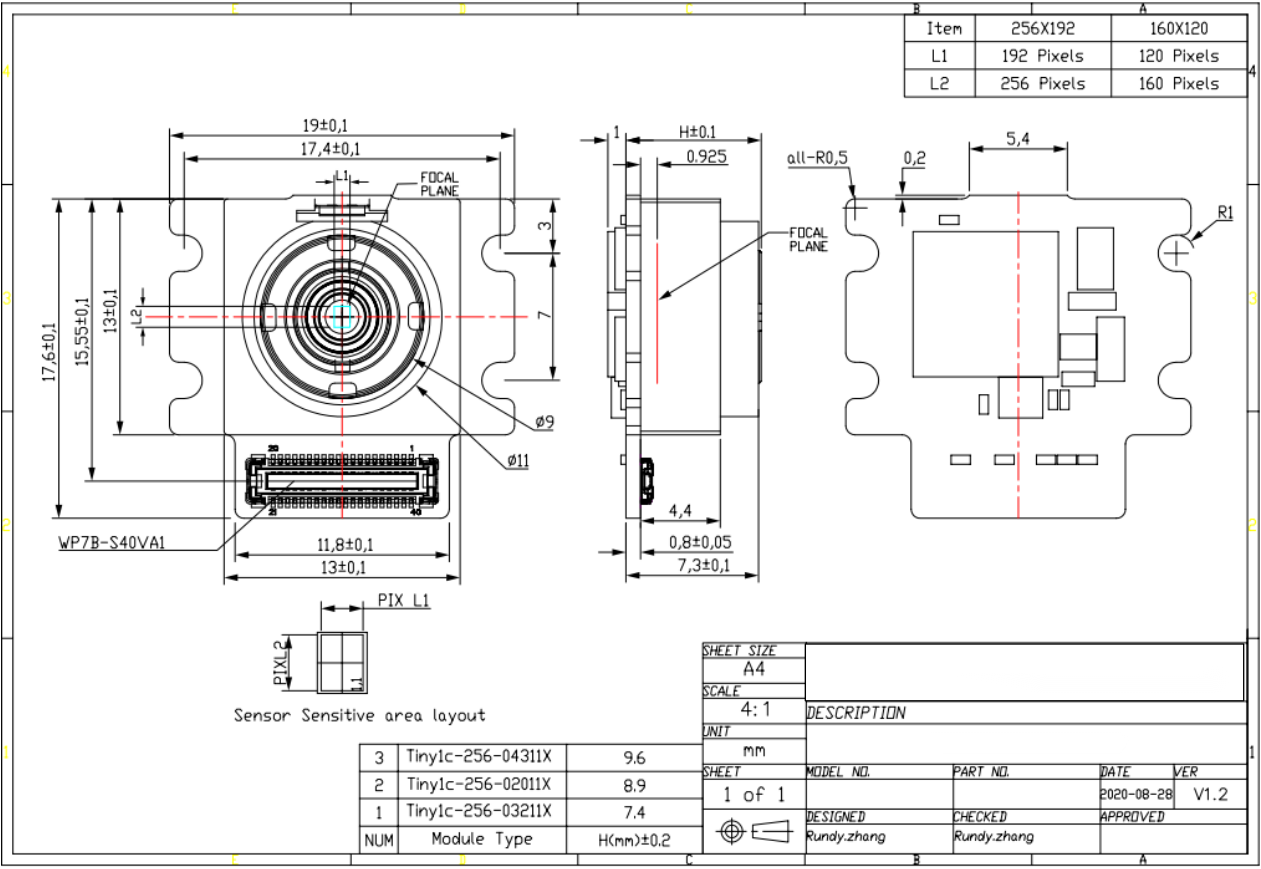

Dimensions: 13×13×8 mm
Resolution: 192×256/160×120
Interface: SPI
Pixel Size: 12μm
Sensor Type: VOx Uncooled infrared focal plane sensor with WLP package
Type: DVP camera module
Response time: <10ms
Frame rate: ≤25Hz
Lens: Athermalized
Radiometric range: WR: -15℃~+150℃(High Gain) 50℃~+550℃(Low Gain) CR: 30℃~45℃*1
Radiometric accuracy: WR: ±2℃ or ±2% CR: ±0.5℃*2
Input supply voltage: 3.3V, 5V
Optimum operating temperature range: -40℃~80℃ (Imaging) -10℃~75℃(WR)* 4 10℃~50℃(CR)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tiny1-C Micro Thermal Imaging Mini Low power consumption Camera Module

Tiny1-C is a long-wave infrared (8-14μm, LWIR) miniature thermal imaging module that can convert the object's own thermal radiation into images and temperature data. This product is small in size and has low power consumption. It is suitable for security monitoring, temperature measurement tools, PDAs, smart home appliances and other fields.
