| Categories | B&R PLC Module |
|---|---|
| Brand Name: | B&R |
| Model Number: | X20IF1063 |
| Place of Origin: | Austria |
| MOQ: | 1pc |
| Price: | $300-$399 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30pcs/month |
| Delivery Time: | 3-5days |
| Packaging Details: | new in box |
| Description: | Interface Module 1 Profibus Dp V0 Slave Interface, Max. 12 Mbit/S, Electrically Isolated |
| Warranty: | 1year |
| Communication module: | 1x PROFIBUS DP V0 slave |
| B&R ID code: | 0x1F23 |
| Status indicators: | Module status, data transfer |
| Power consumption: | 0.87 W |
| Electrical isolation: | PLC isolated from PROFIBUS (IF1) |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
Product Information
Short description
Communication module | 1x PROFIBUS DP V0 slave |
General information
B&R ID code | 0x1F23 |
Status indicators | Module status, data transfer |
Diagnostics | |
Module status | Yes, using LED status indicator |
Data transfer | Yes, using LED status indicator |
Power consumption | 0.87 W |
Additional power dissipation caused by actuators (resistive) [W] | - |
Certifications | |
CE | Yes |
UKCA | Yes |
ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc |
UL | cULus E115267 |
HazLoc | cCSAus 244665 |
KC | Yes |
Interfaces
Interface IF1 | |
Fieldbus | PROFIBUS DP V0 slave |
Variant | 9-pin female DSUB connector |
Max. distance | 1200 m |
Transfer rate | Max. 12 Mbit/s |
Terminating resistor | External using T-connector (0G1000.00-090) |
Controller | VPC3+C |
Electrical properties
Electrical isolation | PLC isolated from PROFIBUS (IF1) |
Operating conditions
Mounting orientation | |
Horizontal | Yes |
Vertical | Yes |
Installation elevation above sea level | |
0 to 2000 m | No limitation |
>2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
Degree of protection per EN 60529 | IP20 |
Ambient conditions
Temperature | |
Operation | |
Horizontal mounting orientation | -25 to 60°C |
Vertical mounting orientation | -25 to 50°C |
Derating | - |
Storage | -40 to 85°C |
Transport | -40 to 85°C |
Relative humidity | |
Operation | 5 to 95%, non-condensing |
Storage | 5 to 95%, non-condensing |
Transport | 5 to 95%, non-condensing |
Mechanical properties
Slot | In the X20 PLC |

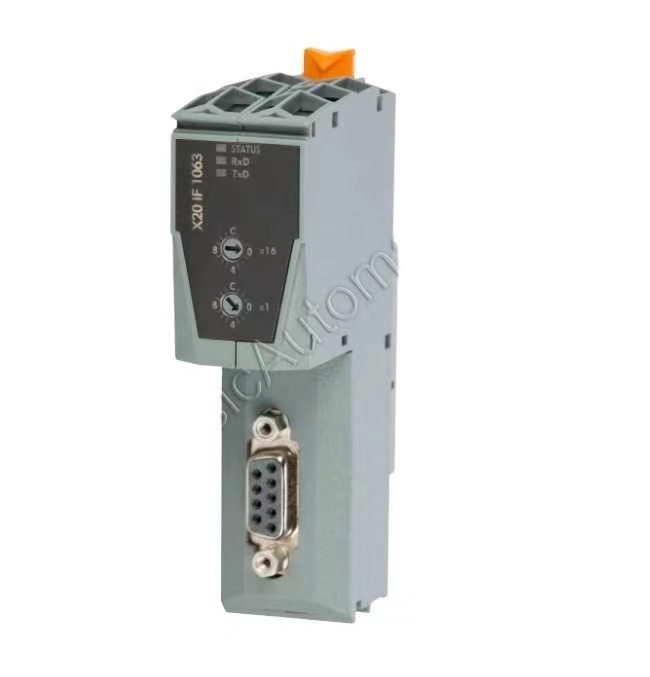

Product Photo
