EX60 EX60-1 TRAVEL REDUCER 9069295 9096479 9138927 TRAVEL DEVICE EX60-1 TRAVEL GEARBOX

PRODUCT PARAMETERS

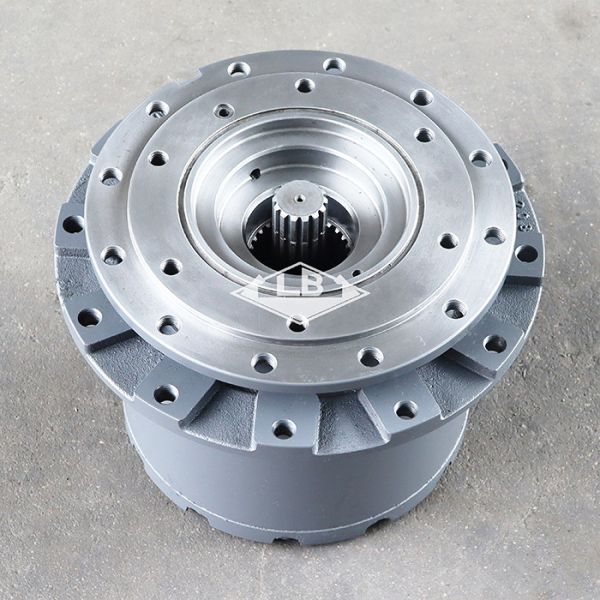

Part name	EX60-1 Travel gearbox
Equipment	Apply to HITACHI EXCAVATOR
Part no.	9069295 9096479 9138927
Frame holes	12
Sprocket holes	12
Item condition	New
Logo	LB
Gross weight	90 KG
MOQ	1 pc

Product Description

EX60-1(2) EX60-1(3) EX60-1(4) EX60-1

Parts on group TRAVEL DEVICE:

Pos.	Part No	Qty	Parts name	Comments
00.	9069509	[1]	MOTOR;OIL	I 9123069
00.	9123069	[1]	MOTOR;OIL	Y 9138838
00.	9138838	[1]	MOTOR;OIL
00-49.	9069295	[2]	TRAVEL DEVICE ASS'Y	Y 9096479
00-54.	9096479	[2]	TRAVEL DEVICE ASS'Y	I 9138927
00-54.	9138927	[2]	TRAVEL DEVICE ASS'Y
01.	1011457	[1]	HOUSING
02.	4092443	[1]	SPACER
03.	991726	[1]	RING;RETAINING
04.	4148014	[2]	BRG.;ROL
05.	4092483	[1]	SEAL;GROUP
06.	1011458	[1]	DRUM
07.	1010447	[1]	SPROCKET
08.	J931635	[12]	BOLT	Y J931640
08.	J931635	[12]	BOLT
08.	J931640	[12]	BOLT	Y J931635
09.	A590916	[12]	WASHER;SPRING
11.	2023132	[1]	GEAR;RING
12.	3027147	[1]	NUT
13.	4148012	[1]	PIN;KNOCK
16.	2023175	[1]	CARRIER
17.	3027146	[1]	GEAR;SUN
18.	959499	[1]	RING;RETAINING
19.	3027148	[3]	GEAR;PLANETARY
20.	4177007	[3]	BRG.;NEEDLE
21.	4192910	[6]	PLATE;THRUST
22.	4178202	[3]	PIN
23.	4169566	[3]	PIN;SPRING
23.	4173093	[3]	PIN;SPRING	Y 4169566
25.	1010450	[1]	CARRIER
26.	3027149	[3]	GEAR;PLANETARY
27.	4148013	[3]	BRG.;NEEDLE
28.	4148016	[3]	PIN
29.	4144017	[3]	PIN;SPRING
30.	J011230	[12]	BOLT;SEMS
30.	M221232	[12]	BOLT	I J011230
31.	A590912	[12]	WASHER;SPRING
33.	4245797	[3]	PLUG
33.	94-2013	[2]	PLUG
33.	94-2013	[3]	PLUG	Y 4245797
34.	4148080	[6]	PLATE;THRUST
35.	2017872	[1]	SHAFT;PROP.
36.	4092444	[1]	SPACER
37.	3036156	[6]	PLATE	T 3070674
37.	3036156	[6]	PLATE	T 3070675
37.	3070675	[6]	PLATE
38.	3036157	[5]	PLATE;FRICTION	T 3070674
38.	3036157	[5]	PLATE;FRICTION	T 3070675
38.	3070674	[5]	PLATE;FRICTION
39.	3036158	[1]	PISTON
40.	4092712	[1]	D-RING
41.	4092713	[1]	D-RING
42.	3017067	[1]	SPRING;DISC
44.	4154877	[1]	O-RING
45.	957366	[1]	O-RING
46.	929231	[1]	RING
47.	94-2010	[1]	PLUG
48.	4192042	[6]	BOLT;SOCKET
49.	A590914	[6]	WASHER;SPRING
53.	M492564	[2]	SCREW;DRIVE
54.	3053559	[1]	NAME-PLATE	Y 3071686
54.	3071686	[1]	NAME-PLATE	(FOR TRANSMISSION)
60.	J931650	[24]	BOLT
61.	A590916	[24]	WASHER;SPRING
