Electric Water Heater Inner End Cap Deep Drawing Machine OEM

Categories Solar Inner Tank Production Line
Production Speed: 10-15 tanks per minute
Heating Method: Electric heating
Warranty: 1 year
Cooling Method: Water cooling
Control System: PLC control
Material: Stainless Steel
Model: STPL-1000
Welding Method: Automatic welding
Power Supply: 380V/50Hz
Weight: 5000kg
Dimensions: 10m x 5m x 3m
Capacity: 1000 tanks per day
MOQ: 1pc
Product Name: Solar Inner Tank Production Line
Color: Custom
Condition: New
Voltage: Customized
Automatic Grade: Automatic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Electric Water Heater Inner End Cap Deep Drawing Machine OEM

  • The four-column press is equipped with three speeds for no-load fast, slow die and workpiece deep drawing. It boasts high work efficiency, low energy consumption, convenient operation, stable performance and other advantages. It finds extensive applications in metal pressing, forming, bending as well as flanging correction and other processes. The size of the worktable and the tonnage of hydraulic cylinder can be customized according to customer requirements.

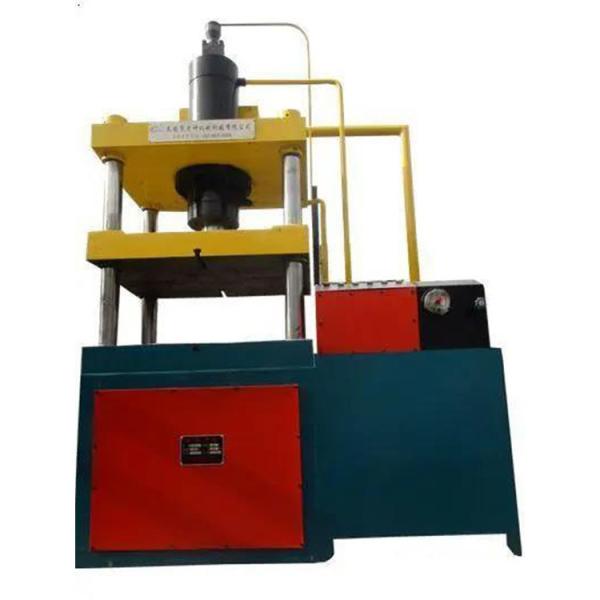

    Four-column press (10T-500T)
    The four-column press is equipped with three speeds for no-load fast, slow die and workpiece deep drawing. It boasts high work efficiency, low energy consumption, convenient operation, stable performance and other advantages. It finds extensive applications in metal pressing, forming, bending as well as flanging correction and other processes. The size of the worktable and the tonnage of hydraulic cylinder can be customized according to customer requirements.

    Product parameters

    Device name

    Four-column press

    Device model

    LPR01

    Nominal pressure ( KN )

    8000

    Nominal pressure stroke ( mm )

    13

    Slider stroke ( mm )

    800

    Maximum die height ( mm )

    1400

    Die height adjustment amount ( mm )

    600

    Slider Bottom Surface Dimensions ( mm )

    4600*2500

    Work surface size ( mm )

    4600*2500

    Upper slider pad thickness ( mm )

    120+120

    Trips ( spm )

    16 in a row

    Air Cushion Force ( KN )

    1500

    Air cushion force stroke ( mm )

    0250 (adjustable)

    Maximum load-bearing capacity of the worktable (tons)

    40

    Press continuous stroke work ( ton * m )

    27

    Balance capacity (excluding pad weight) (tons)

    20

    Number of fine-tuning ( spm )

    0.7 ~ 51.5
