180pcs/Min Plastic Zipper Bag Making Machine 220V 50Hz Single Phase

Categories Zipper Bag Making Machine
Brand Name: Xinda Pelosi
Model Number: XPFD
Certification: Machinery Test Report
Place of Origin: Zhejiang
MOQ: 1 set
Price: To be negotiated
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 Set/Sets per Year
Delivery Time: 70 days
Packaging Details: plastic ice cube bag making machine by flying knife system packing details:stretch film & bubble film wrapping onto wooden pallet shipment will be along with spare parts, instruction manual & components' manual.
Machine Type: zip lock pouch packing machine
Bag Type: Zipper Bag
Speed: 180pcs/min
Cutting speed: 60-180pieces/min
Material: Plastic
Weight: 700 KG
Warranty of core components: 1 years
Applicable Industries: Restaurant, Machinery Repair Shops, Manufacturing Plant, Building Material Shops, Retail, Food Shop, Advertising Company, Garment Shops, Construction works , Farms, Printing Shops, Hotels, Food & Beverage Factory, Home Use, Energy & Mining, Food & Beverage
Voltage: 220V 50Hz Single Phase
Dimension(L*W*H): 3500*1500*1600mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

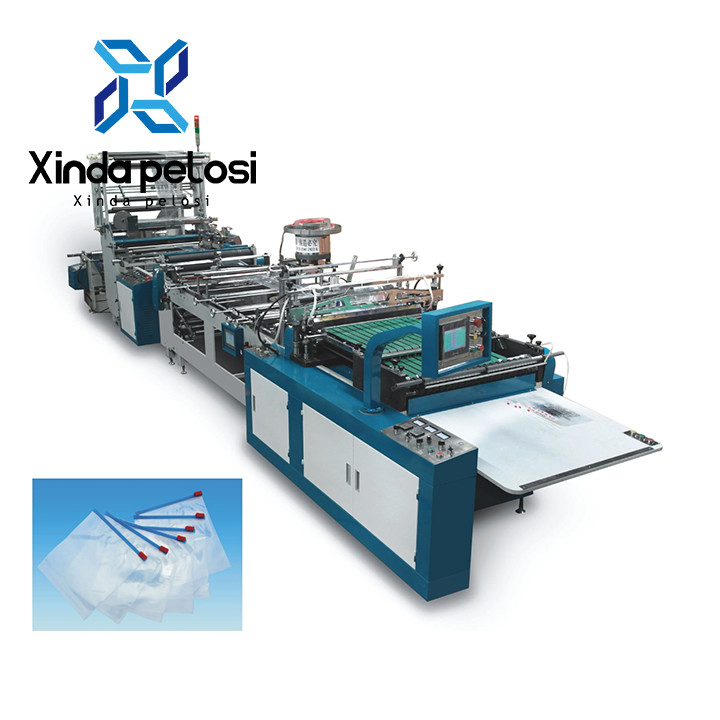

180pcs/Min Plastic Zipper Bag Making Machine 220V 50Hz Single Phase


Automatic Various Widely Used Machine Zipper Plastic Bag Making Machine Zip Lock Pouch Packing


Product images :


Main Technical Parameters
ModelZIP-500ZIP-600
Cutting width60-450mm40-550mm
Cutting length120-300mm40-420mm
Capacity60-180pcs/min60-180pcs/min
Main motor1.5kw1.5kw
Thickness of film0.04-0.15mm0.04-0.15mm
Heater15kw18kw
Power25kw30kw
Machine size3200*1100*1500mm3500*1500*1600mm


Machine Description

This machine is apply to producing LDPE, PP, OPP, BOPP, or EVA zipper welding bags.


This machine adopts automatic servo motor driving and micro computer control the length. Which has the advantages of easy operation, strong sealing, good quality. The entire production process from the roll film, triangular folding, automatic edge lining, edge cutting, zipper welding, zipper head attaching, electric photocell tracking, punching, ultrasonic pressure level, to automatic counting are automatically controlled and operated by PLC control system.


Characteristics & Functions)

This machine is suitable for LDPE and non-woven fabrics. This machine adopts fully automatic servo motor and computer drive to control the length, easy operation, firm sealing and beautiful quality. The production process includes the entire film roll, automatic edge trimming, edge cutting, clip chain, laminating, automatic pull-in head, printing electric eye, punching, ultrasonic flattening, thermal cutting, automatic counting, and the whole process adopts PLC control system fully automatic operation.


Product technology:


Material Feeding: The machine feeds rolls of plastic film, typically made of polyethylene (PE) or polypropylene (PP), which serve as the primary material for pouch production.

Zipper Attachment: Specialized mechanisms attach the zipper to the plastic film, ensuring precise positioning and secure sealing to create the zip lock feature.

Filling System: Automated filling systems accurately dispense the desired product into the pouches, ensuring consistent fill levels and minimizing product waste.

Sealing Technology: Cutting-edge sealing technology, such as heat sealing or ultrasonic sealing, is utilized to seal the pouches, ensuring product freshness and preventing leaks.

Bag Forming: Bag forming mechanisms fold and shape the plastic film into the desired pouch shape, ensuring uniformity in pouch dimensions.

Optional Features: Some machines may include optional features such as printing units for branding or product information, gas flushing for modified atmosphere packaging (MAP), and date coding for traceability.

Control Systems: Advanced control systems, often utilizing PLC (Programmable Logic Controller) technology, regulate machine operations, ensuring precision and consistency in pouch production.

Safety Measures: Safety features such as emergency stop buttons, safety guards, and sensors are integrated to ensure operator safety during machine operation.



FQA :

A. What are products do you supply?

B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.


A.How about your products warranty ?

B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).


A.Why choose us?

B.(1) Efficient and satisfied service

(2) Complete machines solution for the whole production line

(3) Various and multi solutions for different requirement

(4) More than 18-year professional experience

(5) Qualified product and strict quality control

(6) ODM,OEM is welcome
