| Categories | Custom Solar Panel |
|---|---|
| Brand Name: | AHONY or OEM |
| Model Number: | eMarvel 150w |
| Place of Origin: | Guangdong, China |
| Packaging Details: | 1pcs per carton box for semi flexible solar panel flower sunflower 40w 50w 60w 80w 110w customize panel size shape for solar tree solar flower |
| Supply Ability: | 10000 Piece/Pieces per Month |
| MOQ: | 4 pieces |
| Price: | $135.00/pieces 4-99 pieces |
| Cell size: | 158.75mmx158.75mm |
| Type: | PERC, Flexible |
| Panel Dimensions: | 660*1330*5mm |
| Panel Efficiency: | 15.67% |
| Warranty: | 3 years |
| product: | flower solar panel |
| Solar cell: | monocrystalline |
| Certificate: | S GS,IEC,CE,ROHS,ISO9001 |
| Port: | shenzhen |
| Company Info. |
| Shenzhen Ahony Power Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

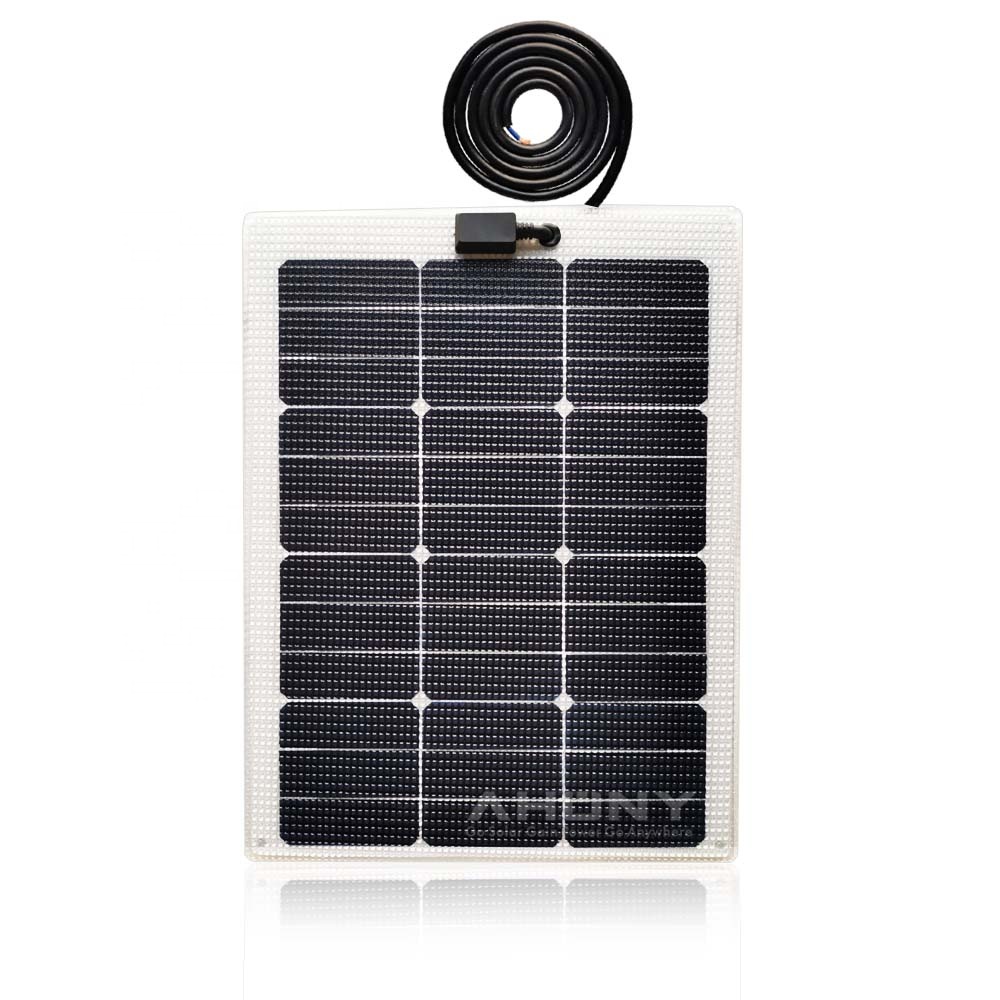

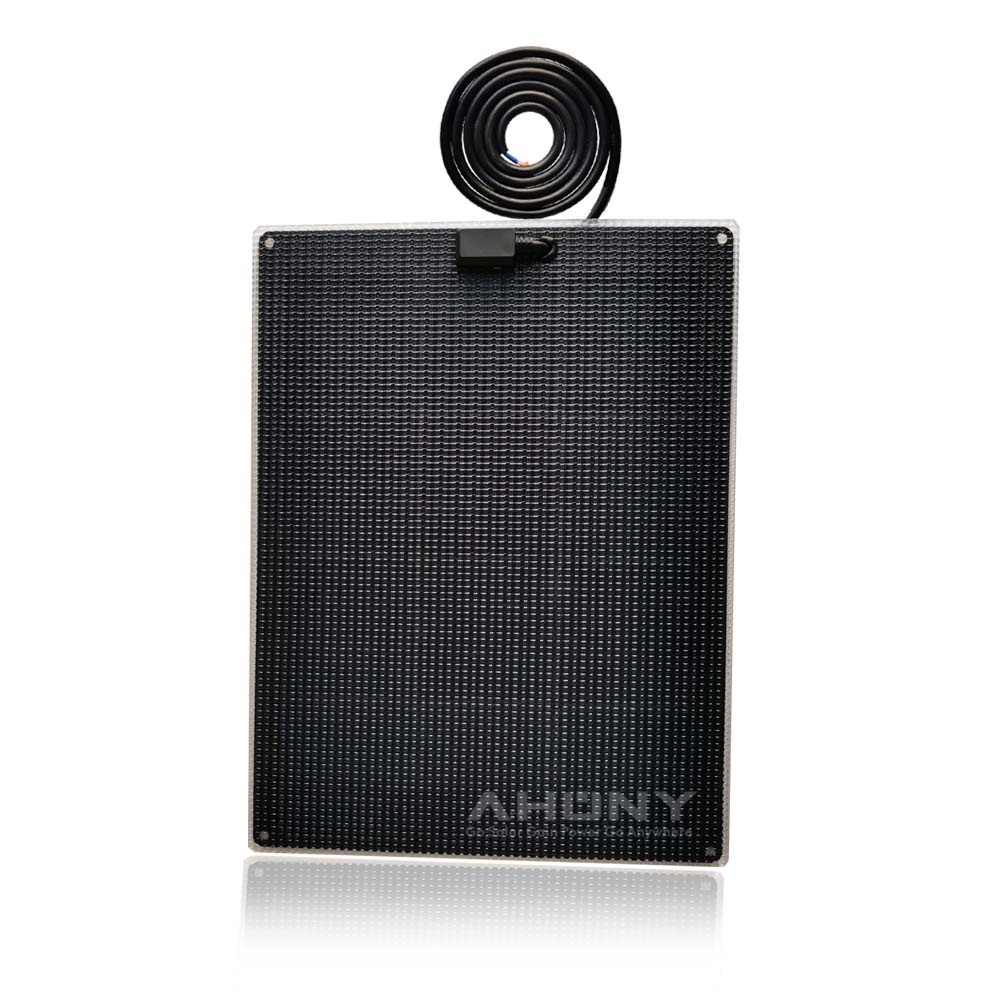

Semi Flexible Solar Panel Flower Sunflower Customize Panel Size Shape For Solar Tree Solar Flower LED Lighting Project F
Framelss,thin without aluminium frame
Max bend angle 5degree
Walkable and anti skids surface,resistance to hailstone,pressure and longivity.
CE ROHS S GS IEC certified,more than 8month actual test under sunshine and harsh environment test.
Advantage of eMarvel marine solar panel
High efficiency solar cell
AHONY uses leading brand cell and high efficiency A
grade quality back contact cell to insure high and stable output.
Excellent weak light performance and Maximum energy per watt,Deliver the most energy in demanding real world conditions,in partial shade,weak light,and hot temperatures.
Walkable and Anti-slippery
By any means and do not damage cells,the rough antislippery
surface is safer for installation or maintenance.
Longer lifespan 15years guaranteed
Premium weather or moisture resistance,for harsh
environment 15years life guaranteed,over 25years lifespan.
High temp resistance and little power loss
The surface material resists high temperature Flame
retardancy UL94 VTM-0.Rugged and insulated bottom
reduces area touched surface of yacht,RV,cart etc.Enables
air circulation,it cools down panel and get little power loss.
Rigid,thin,light design for widely use
It’s rigid to resist hailstone,semi flexible with bend angle less
5 degree,suitable for off grid use,marine,yacht,RV roof,on
grid home system,parking lot,portable power generator etc.
It’s 1/6 thickness 7/10 the weight of glass solar panel.
AHONY eMarvel series uses leading Japan raw material,high efficiency A grade solar cells and automatically producing
machine,experienced ultralight solar panel producing experience.We offer more added value on power output,
professional test,industrial standard quality control,after sale service and warranty.
-CE ROHS test and certified
-High Temperature test
-High humidity 85% test
-SGS IEC standard Salt Spray test
Scope of Application
eMarvel is specialized marine solar panel for boat or yacht surface;
floating buoys,bimini,deck,sprayhood,cover,sticking on catamaran and trawler hardtops
It's durable for relatively flat surface and need to walk
| Model No. | eMarvel 20w | eMarvel 50w | eMarvel 60w | eMarvel 80w | eMarvel 100w | eMarvel 120w | eMarvel 150w |
| Product Name | Semi-Flexible Solar Panel | ||||||
| Maximum Power[Wp] | 20 | 50 | 60 | 80 | 100 | 120 | 150 |
| Solar Cell | A grade mono PERC cell | ||||||
| Cell Array[Pcs] | 2*16 | 2*17 | 4*8 | 4*9 | 3*11 | 4*9 | 4*11 |
| Cell Efficiency | 21.30% | 21.30% | 21.30% | 21.30% | 21.30% | 21.30% | 21.30% |
| Size[mm] | 350*385*5 | 350*970*5 | 350*1035*5 | 510*910*5 | 510*1250*5 | 510*1330*5 | 660*1330*5 |
| Max Power Voltage Vmp[V] | 18.56 | 18.70 | 18.56 | 18.56 | 18.15 | 20.88 | 25.52 |
| Max Power Current Imp[A] | 1.08 | 2.67 | 3.23 | 4.31 | 5.51 | 5.75 | 5.88 |
| Open Circuit Voltage Voc[V] | 21.90 | 22.07 | 21.90 | 21.90 | 21.42 | 24.64 | 30.11 |
| Short Circuit Current Isc[A] | 1.16 | 2.89 | 3.49 | 4.66 | 5.95 | 6.21 | 6.35 |
| Net.Weight[kg] | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.9 | 2.8 |
| Power tolerance[%] | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| NOCT[℃] | 45±2 | 45±2 | 45±2 | 45±2 | 45±2 | 45±2 | 45±2 |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV | -1.74mV | -1.74mV | -1.74mV | -1.74mV | -1.74mV | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Maximum Reverse Current[V] | 10A | 10A | 10A | 10A | 10A | 20A | 20A |
| Flame retardancy | UL94 VTM-0 | ||||||
| Certification and test | CE,ROHS,SGS,IEC,85°C& 85% humidity test | ||||||
| Maximum bend radius(θ) | 5° | ||||||
| Cables and Connectors | APJB010,2m dual cores cable 2.5mm2 bare at end | ||||||
| Warranty[Years] | 3 | ||||||
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C | ||||||
| Other notes | round corner R10,with eyelets | ||||||
on it frequently.
|
