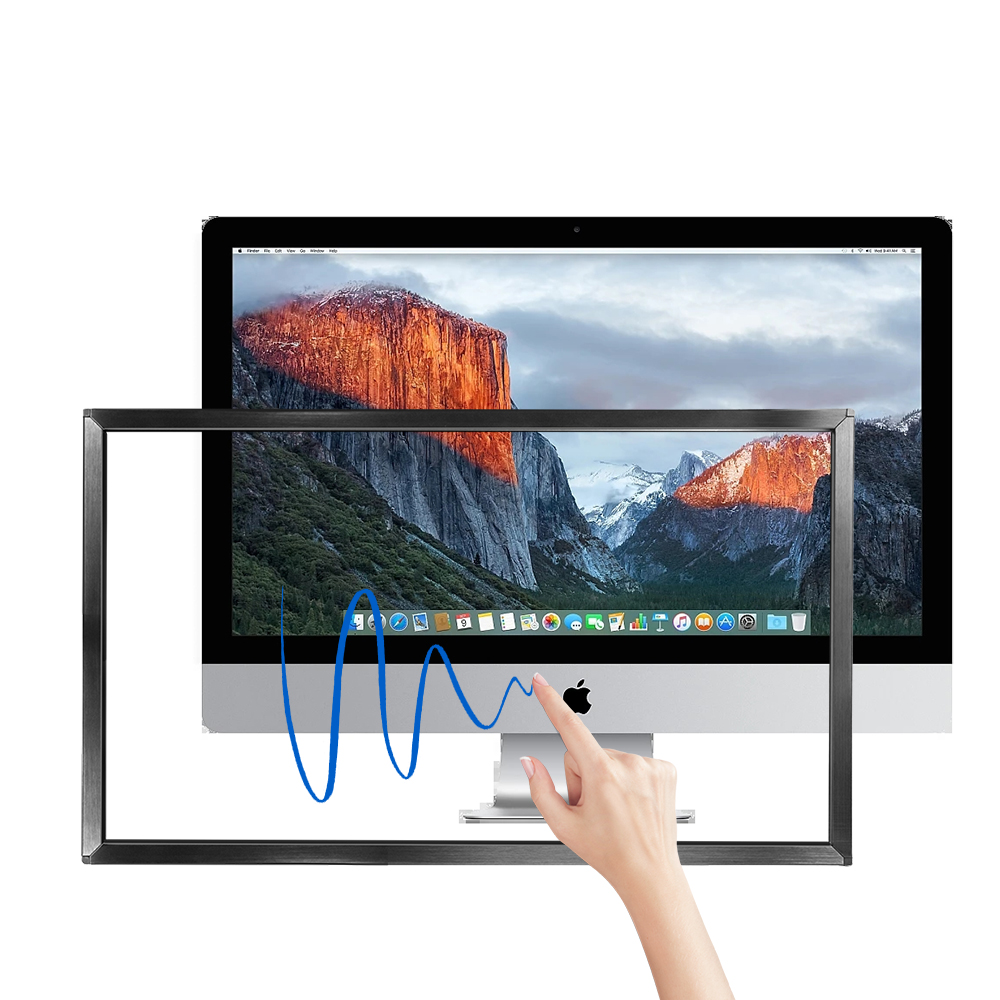

RS485 Infrared Touch Panel Linux Windows Ir Sensor Touch Screen

illustrate

Infrared touch screen technology principle:
Infrared touch screen is a highly integrated electronic line integrated product. The infrared touch screen contains a complete integrated control circuit, a set of high-precision, anti-interference infrared transmitting tubes and a set of infrared receiving tubes, which are installed in two opposite directions on a highly integrated circuit board, forming an invisible of infrared light. The infrared radiation array densely distributed in the Y direction is used to detect the user's own mode. In the infrared touch screen, a circuit board is installed in front of the display. The external circuit board arranges red line transmitting tubes and infrared receiving tubes on the four sides of the screen, corresponding one to one to form a cross infrared matrix. When the user touches the screen, the finger will block the direction of the external system passing through the position. The change in the light signal causes the electrical signal output by the photoelectric detection circuit to change. By processing the electrical signal, the position of the touch point on the screen can be located. , any touch object that is opaque to infrared light can block infrared rays to achieve touch positioning.
Infrared touch screen product advantages:
Anti-light design, supports single and multi-point touch
Via USB link, no driver required, plug and play
Can be touched using a pen, finger, gloved hand, etc.
Responsive, no disconnection, no ghosting, no drifting, supports 20-64 touch points
Lightproof, dustproof, waterproof, vandal-proof, scratch-resistant, long service life
High light transmittance, up to 100%, ensuring perfect presentation of display colors
Special-purpose appearance structure, suitable for installation of various flat display devices
Installation is more convenient, writing is fast and smooth, giving you the touch experience you want
Infrared touch screen application scope:
Financial self-service, telecommunications services
Public inquiry, advertising display
Industrial control, electronic education
Game entertainment, touch display
Touch all-in-one machine, medical service system
Digital electronic products and other fields

parameter

Xingyi was established in 2017 and focuses on commercial LCD touch screen products, conferences, education, electronic whiteboards, infrared touch technology, capacitive touch technology, development, manufacturing and international sales. Focused on this field for 5 years. We have accumulated enough experience in making multifunctional all-in-one smart tablets. Our company aims to provide customers with brand quality, value-added products/solutions at a low cost. Our long experience and background in the industry gives us access to the best of experienced and renowned manufacturers.
