| Categories | Current Limiting Fuse |
|---|---|
| Model NO.: | CBUC23030C100M |
| Arc-extinguishing Medium: | Oil-immersed Type |
| Installation: | Insert |
| Structure: | MCB |
| Poles Number: | 1 |
| Type: | Fuse |
| Function: | Overcurrent Protection |
| Certification: | ISO9001-2000 |
| Usage: | High Voltage |
| Fusing Speed: | High |
| HS: | 8535100000 |
| Standard: | Germany DIN |
| Fusing Device: | Link Break |
| Shape: | Circle |
| Model No.: | Cbuc23040c100m |
| Transport Package: | Foam Carton and Wooden Packing |
| Specification: | 23Kv |
| Trademark: | Wuhuan |
| Origin: | Xi′ an Shannxi China |
| HS Code: | 8535100000 |
| Supply Ability: | 5000/Capacity per month |
| Package Size: | 44.00cm * 40.00cm * 35.00cm |
| Package Gross Weight: | 25.000kg |
| Breaking Capacity: | High Voltage Circuit Breakers |
| Operation: | Electric Type |
| Speed: | High-Speed Circuit Breaker |
| Samples: | US$ 5/Piece 1 Piece(Min.Order) | |
| Customization: | Available | Customized Request |
| Shipping Cost : | about shipping cost and estimated delivery time. |
| : | Initial Payment Full Payment |
| Currency: | US$ |
| Return&refunds: | You can apply for a refund up to 30 days after receipt of the products. |
| MOQ: | 1 |
| Price: | RMB 168-2878/Piece 1 Piece (Min. Order) |
| Delivery Time: | 10 weekdays |
| Payment Terms: | L/C ，D/P , T/T ，Western Union ，MoneyGram ，Paypal |
| Place of Origin: | China |
| Brand Name: | xawh |
| Company Info. |
| Xi'an Wuhuan Special Fuse Co., Ltd., |
| Verified Supplier |
| View Contact Details |
| Product List |

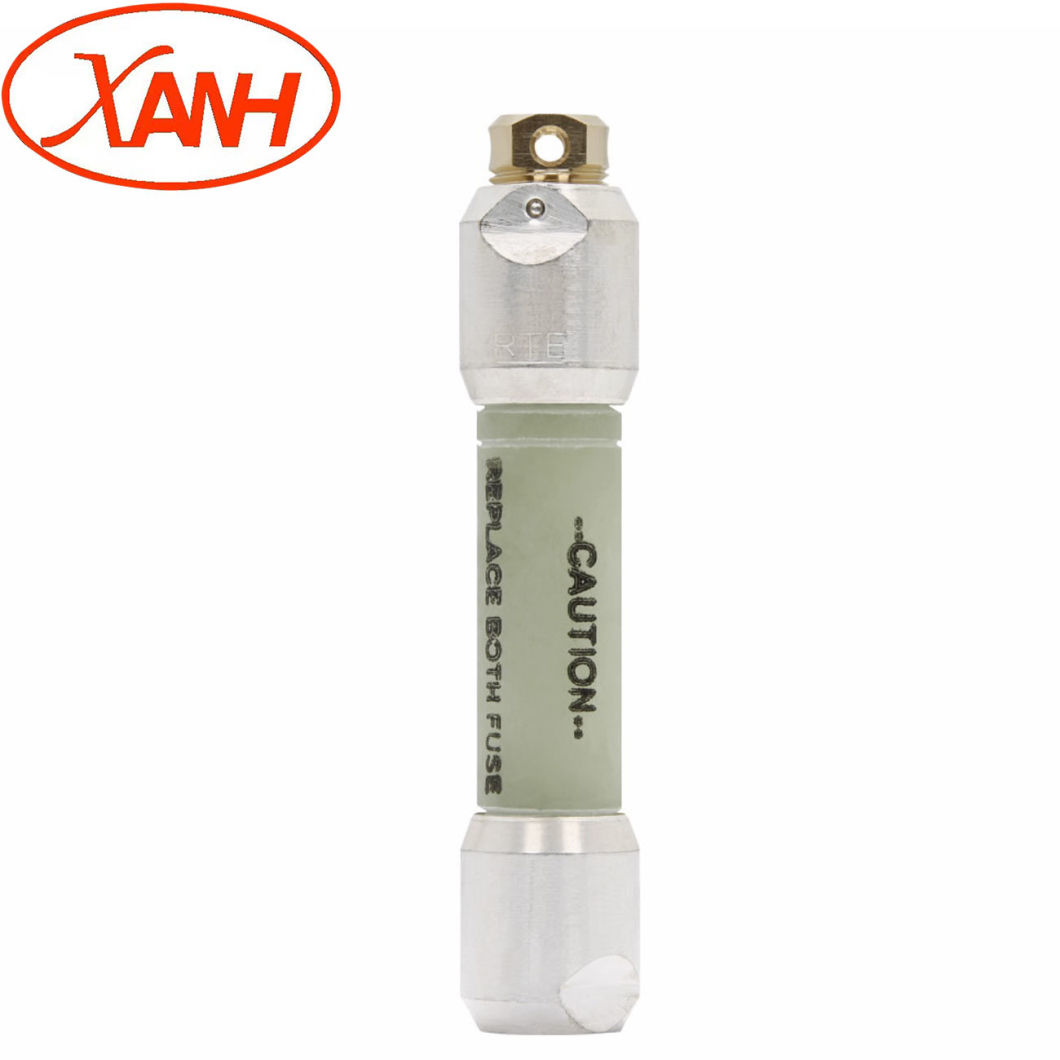

ELSP Current-Limiting Backup Fuse is used in series with low
current primary protection devices such as a Bay-O-Net fuse or
MagneX Interrupter. The ELSP fuse is designed for use in
transformer oil, Envirotemp™ FR3™ fluid, or an approved equivalent.
The fuse's highly efficient current-limiting section minimizes the
effects of high fault current stresses on equipment and the
distribution system. Its minimum interrupting rating is coordinated
with that of a low current interrupter to avoid undesirable low
current operation; yet its maximum interrupting rating will clear
the highest fault currents likely to occur. Higher continuous
current ratings can be achieved by connecting two fuses in
parallel.
| 8.3kv CBUC08030C100, CBUC08030C100M, CBUC08040C100, CBUC08040C100M, CBUC08050C100, CBUC08050C100M, CBUC08065C100, CBUC08065C100M, CBUC08080C100, CBUC08080C100M, CBUC08100C100, CBUC08100C100M, CBUC08125C100, CBUC08125C100M, CBUC08150D100, CBUC08150D100M, CBUC08165D100, CBUC08180D100, CBUC08180D100M, CBUC08250D100, CBUC08250D100M, CBUC09030C100, CBUC09030C100M, CBUC09040C100, CBUC09040C100M, CBUC09050C100, CBUC09050C100M, CBUC09065C100, CBUC09065C100M, 15kv, CBUC15030C100, CBUC15030C100M, CBUC15040C100, CBUC15040C100M, 3CBUC15050C100, CBUC15050C100M, CBUC15065C100, CBUC15065C100M, CBUC15080C100, CBUC15080C100M, CBUC15100C100, CBUC15100C100M, CBUC15125C100, CBUC15125C100M, CBUC15150D100, CBUC15150D100M, CBUC15165C10, CBUC15165D100, CBUC15180D100, CBUC15180D100M, 17.5kv CBUC17030C100, CBUC17030C100M, CBUC17040C100, CBUC17040C100M, CBUC17050C100, CBUC17050C100M, CBUC17065C100, CBUC17065C100M, 23kv CBUC23030C100, CBUC23030C100M, CBUC23040C100, CBUC23040C100M, CBUC23050C100, CBUC23050C100M, CBUC23065C100, CBUC23065C100M, CBUC23080C100, CBUC23080C100M, CBUC23100C100, CBUC23100C100M, CBUC23125D100, CBUC23150D100, CBUC23165D100, 38kv CBUC38050D100, CBUC38065D100, CBUC38080D100, CBUC38100D100, CBUC38120D100, CBUC38140D100 |
| Fusing For Three-Phase Single Voltage Transformers | ||||
| High Voltage Rating | Transformer kVA | Assumed Impedance % | 38 kV Bay-O-Net Fuse (Cooper Power series) | 38 kV Back Up Current-Limiting Fuse (Cooper Power series ELSP) |
| 34,500Δ | 150 | 2 | 4000380C06CB | CBUC38050D100 |
| 225 | 3 | 4000380C06CB | CBUC38050D100 | |
| 300 | 3.50 | 4000380C06CB | CBUC38050D100 | |
| 500 | 4.00 | 4000380C08CB | CBUC38050D100 | |
| 750 | 5.75 | 4000380C10CB | CBUC38065D100 | |
| 1000 | 5.75 | 4000380C10CB | CBUC38065D100 | |
| 1100 | 5.75 | 4000380C11CB | CBUC38080D100 | |
| 1250 | 5.75 | 4000380C11CB | CBUC38080D100 | |
| 1500 | 5.75 | 4000380C12CB | CBUC38100D100 | |
| 1750 | 5.75 | 4000380C12CB | CBUC38100D100 | |
| 1850 | 5.75 | 4000380C12CB | CBUC38100D100 | |
| 2000 | 5.75 | 4000380C12CB | CBUC38100D100 | |
| 2250 | 5.75 | 4000380C14CB | CBUC38140D100 | |
| 2500 | 5.75 | 4000380C14CB | CBUC38140D100 | |
| 2850 | 5.75 | 4000380C14CB | CBUC38140D100 | |
| 3000 | 5.75 | 4000380C14CB | CBUC38140D100 | |
| 3200 | 5.75 | 4000380C14CB | CBUC38140D100 | |
With the broadest array of transformer components for ANSI/IEEE
design type equipment, we supply transformer and switchgear OEM's
with the reliable products needed to service their component
requirements. Tap changer, series multiple, loadbreak and
sectionalizing switches, as well as apparatus bushings are examples
of the numerous products available from the industry's largest
supplier of transformer components.
Components & Protective Equipment:
Fault Indicators
Fusing Equipment
Expulsion Links
Bay-O-Net
NX Current Limiting
X-limiter Current Limiting
NX Companion Back-up C
ELF Current-Limiting
Tandem ELF
L Bay-O-Net
ELSP Fuse
Encapsulated Fuse
Magnex Interrupter
Transformer Components
Secondary Bushings
Bushing Wells
Integral Loadbreak Bushing
600A Bushings
Arrester Disconnect
Tap Changer
Sectionalizing Switch
Two positions/Four positions/Three positions Loadbreak Switch
Series - Multiple Switch
