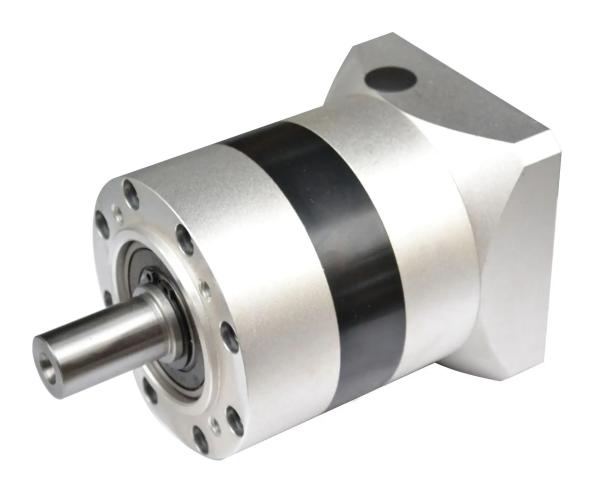

FE Series Planetary Gear Reducer 242mm

FE series planetary reducer
Product Details
1: With sufficient spare parts inventory, simple structure and mass production.

2: Input speed up to 5000 rpm

3: Using high strength alloy steel, the whole gear is hardened, not only surface hardening,

to ensure the service life and long-term use still maintain the original accuracy

4: The torque is higher than the general planetary reducer.

5: The efficiency of single stage is 97%, that of two-stage is 95%, and that of three-stage

is 92%

Features: It adopts a circular flange output method, which is economical and practical,

with high cost-effectiveness, high accuracy, good rigidity, large load-bearing capacity,

high efficiency, long service life, small total volume, beautiful appearance, convenient

installation, and precise positioning. It is suitable for the reduction transmission of AC

servo motors, DC servo motors, and stepper motors.

Application areas: precision machine tools, welding equipment, automatic cutting equipment,

packaging equipment, solar energy, industrial robots, medical equipment, printing

equipment, precision testing instruments and other automation equipment.

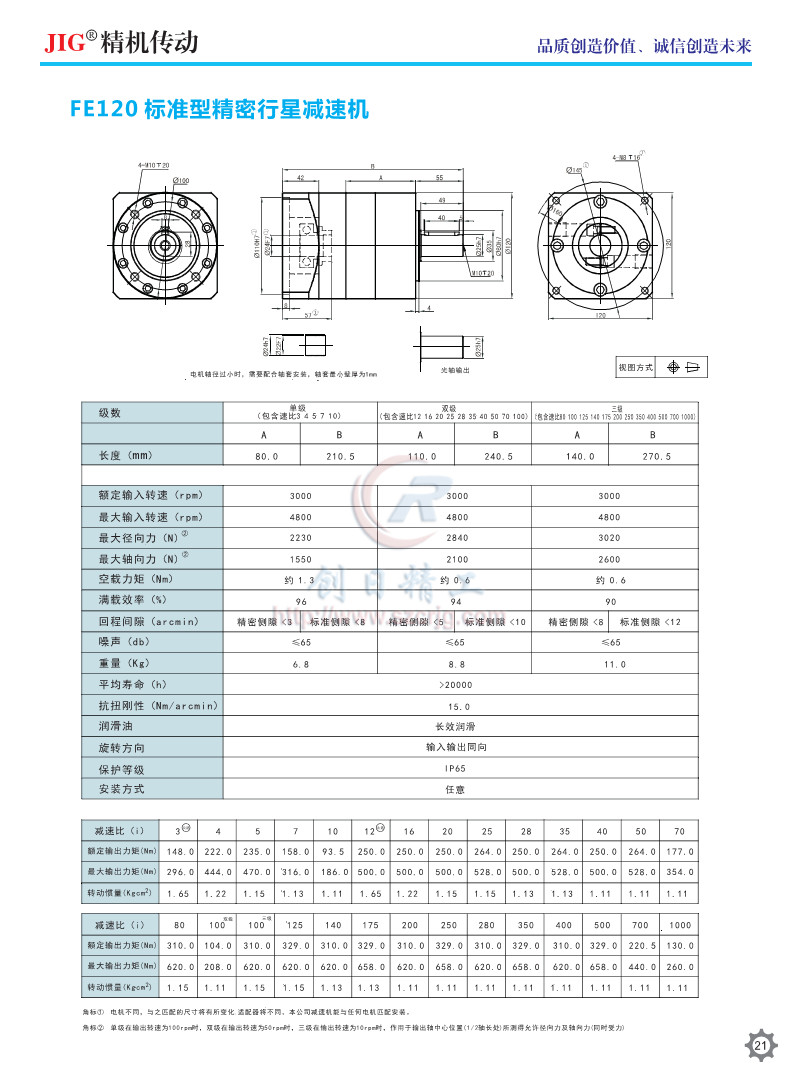

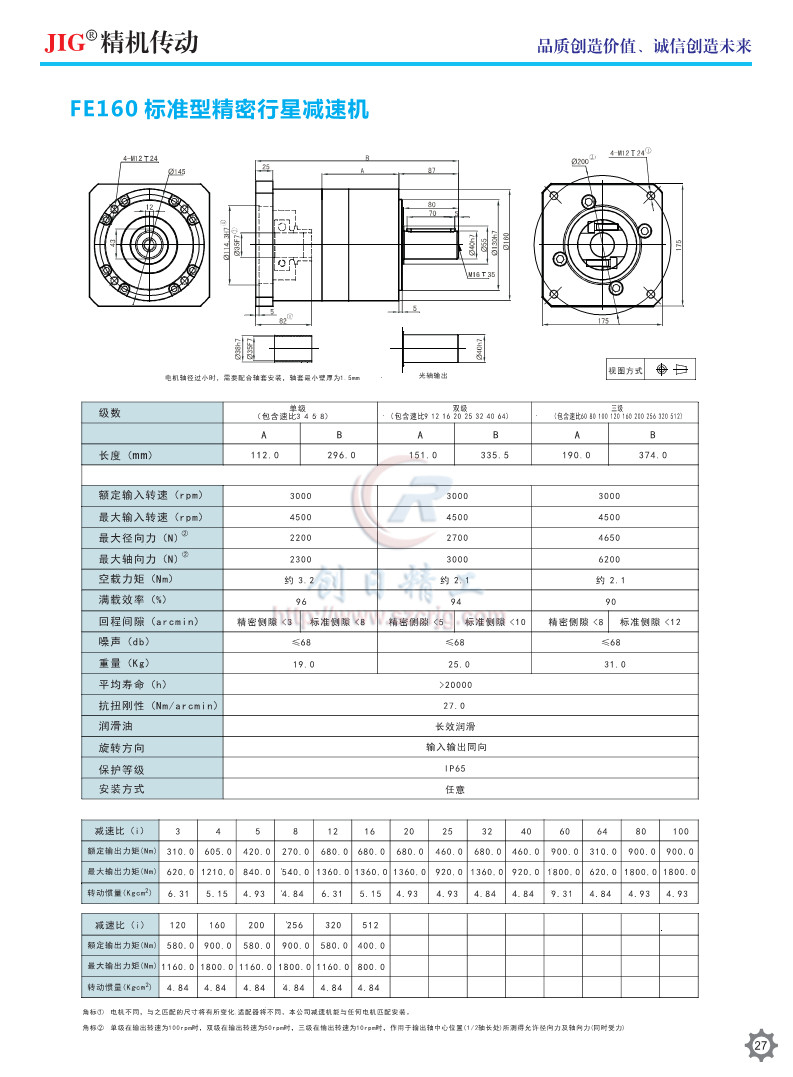

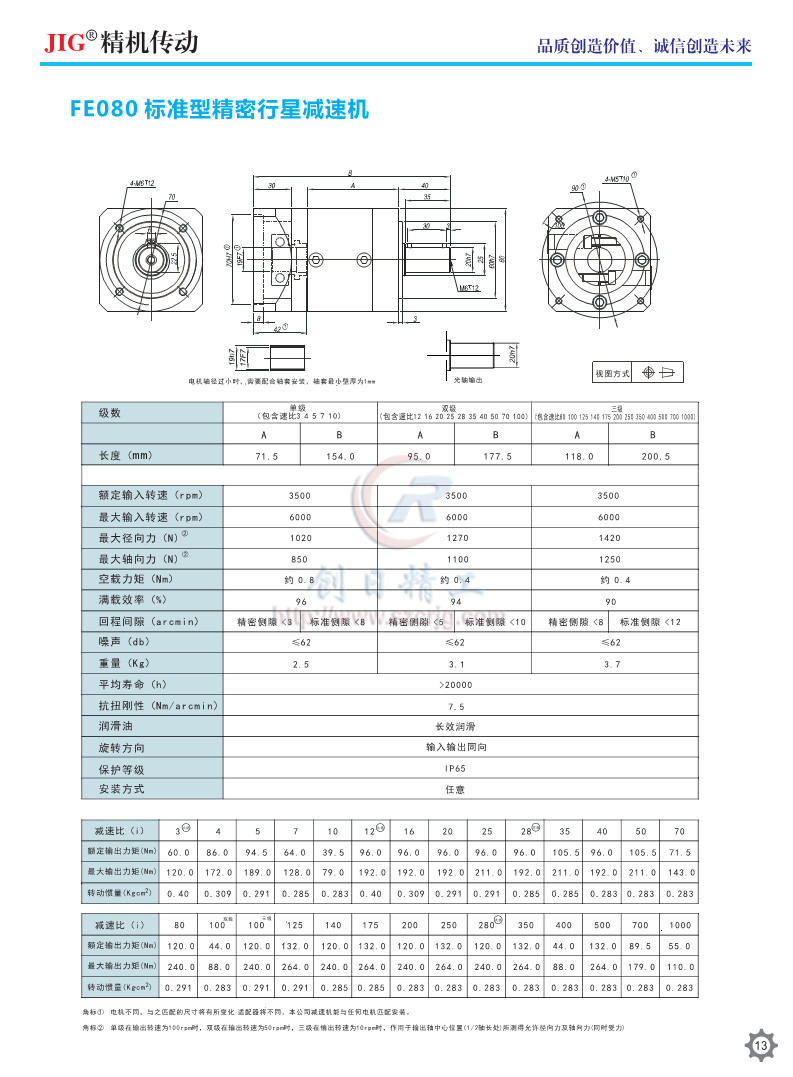

FE series planetary reducer models include (60, 80, 90, 120, 160) rated input speed of

3000rpm maximum input speed of 8000rpm reduction ratio of 3, 4, 5, 7, 8, 10, 12, 16, 20,

25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250, 280, 350, 400, 500, 700, 1000

Shenzhen Chuangri Precision Technology Co., Ltd. is a Taiwanese joint venture that integrates scientific research, design, production, and sales. Taiwan Precision Machinery Co., Ltd. is a affiliated enterprise and a good partner of well-known domestic military enterprises. The company has advanced German Nielsen gear hobbing machines, XD7163 conical grinding wheel gear grinding machines, and 215 gear grinding machines both domestically and internationally. THA6350 horizontal CNC machining center, WENIEL three coordinate measuring machine. Advanced technology and years of professional manufacturing experience make the company's product models more complete and provide more complete services in the mechanical industry. With superior processing technology and the development ability of engineers, we are committed to researching and developing various types of transmission system reducers to meet your strict requirements for transmission machinery. We strive to grow together with you tirelessly. Comprehensive quality control is not just a slogan, our commitment to quality policy is based on fully meeting your requirements and precision machine quality. Truthfulness, innovation, and technology are the central concepts that all of our colleagues adhere to, and our purpose of serving the public is to be steadfast. This belief will be the driving force for us to work tirelessly and move forward courageously. The company's main products include micro, small, medium, and large gear reducer series. Cast iron worm gear reducer series. Aluminum alloy worm gear reducer series. Continuously variable speed series. R. K, F, S, helical bevel gear hard tooth reducer series. Precision servo reducer series. Cycloidal needle reducer series. Screw rod lifter series. Frequency converter, fan, three-phase asynchronous motor series.
