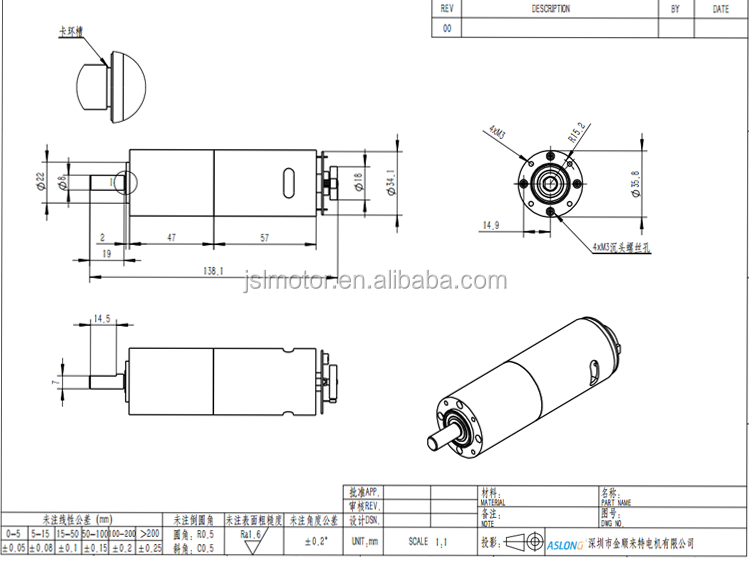

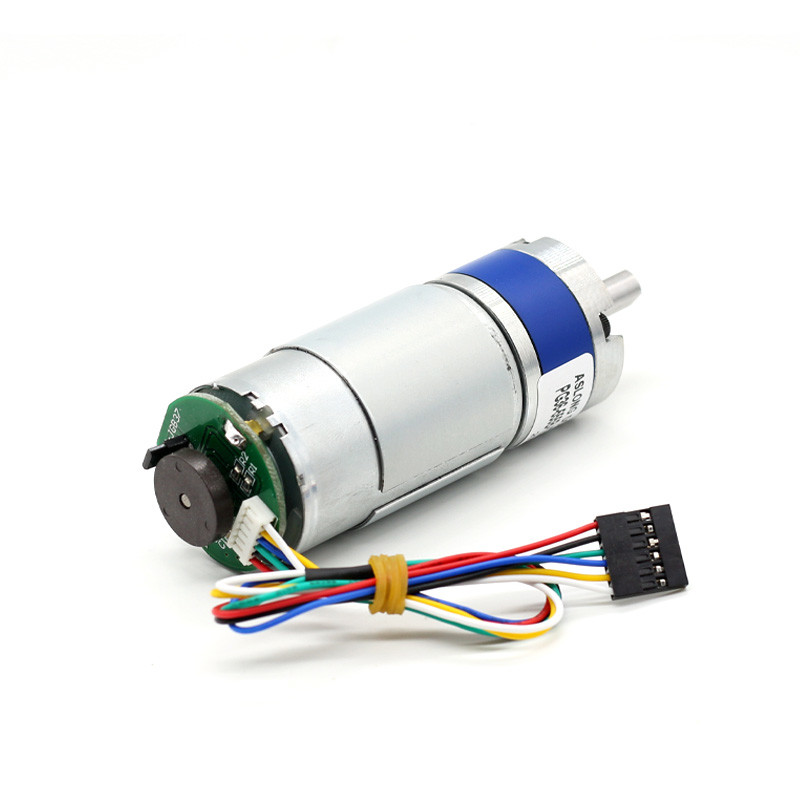

PG36-555B Dia 36mm Planetary Gear Motor With High Torque 12V DC Encoder Motor
Planetary gearbox Micro Dc Gear Motor Description: |
Now ,you can get our this planeatry gearbox dc gear motor and other related planetary gearbox motors as following:
![]() | ![]() | ![]() | ![]() |
PG36-3650 | PG36-3625 | PG36-555 | PG32-31ZY |
![]() | ![]() | ![]() | ![]() |
PG28-385 | PG28-2838 | PG42-4260 | PG45-4575 |
Product parameter:
1. Standard Operating Conditions:
Rated Voltage: 12v 24v.
1-1 Direction of Rotation:CW when viewed from output shaft side
1-2 Operating Temperature and Humidity:Temperature range of
-10C~+50C,Humidity range of 30%~80%.
1-3 Storage Temperature:Temperature range of -20C~+60C
2. Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
-- No load speed:2-160rpm.
-- Robotics, Small Appliance, Fanner, Electric Curtain;
-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal
Machine; Electric Valve, Actuator, medical device
-- Electric motor,low noise,low current and no spark. Ratio: 1:3.7
/1:5.18/ 1:14/ 1:27/ 1:50/ 1:71/ 1:100/ 1:139/ 1:189/ 1:263/ 1:369/
1:516 / 1:721
--- 555 Motor information : 12V 6000RPM 8000RPM, 24V 6000RPM
8000RPM

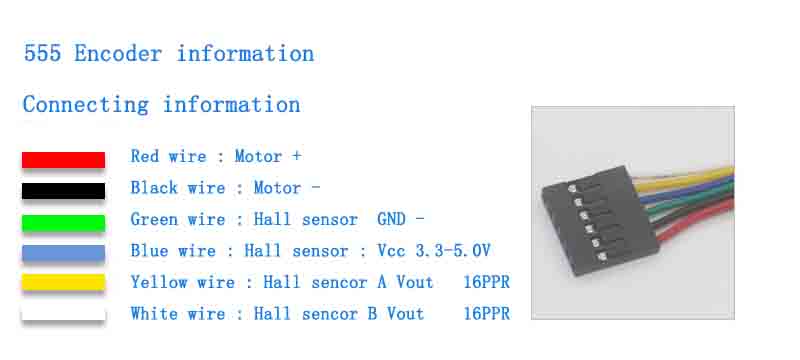

encoder information :
If you prefer ,you can also have this 36mm planetary dc gear motor without encoder
FAQ
1)What's the price?
We're a professional manufacturer So the exact price is based on
clients' specifications,such as the speed,voltage etc.
![]() |
