| Categories | Steel Fitting |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | WP316L-WX |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Delivery Time: | 5 - 30 Work Days |
| Packaging Details: | Ply-wooden Case / Pallet |
| Standard: | ASTM A403, ASME SA403 |
| Material Grade: | WP316 |
| Technics: | Butt weld |
| Size: | 1/2''-48''(DN15-DN1200) |
| Thickness: | SCH10-XXS(2-60mm) |
| Connection: | Welding,Female,Male |
| Type: | Elbow,Nipple,Pipe Threaded,Reducer,Tee,Bend,End Cap,Etc. |
| Applications: | Construction,gas and oil pipes,air,Steam,Petroleum gas water |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

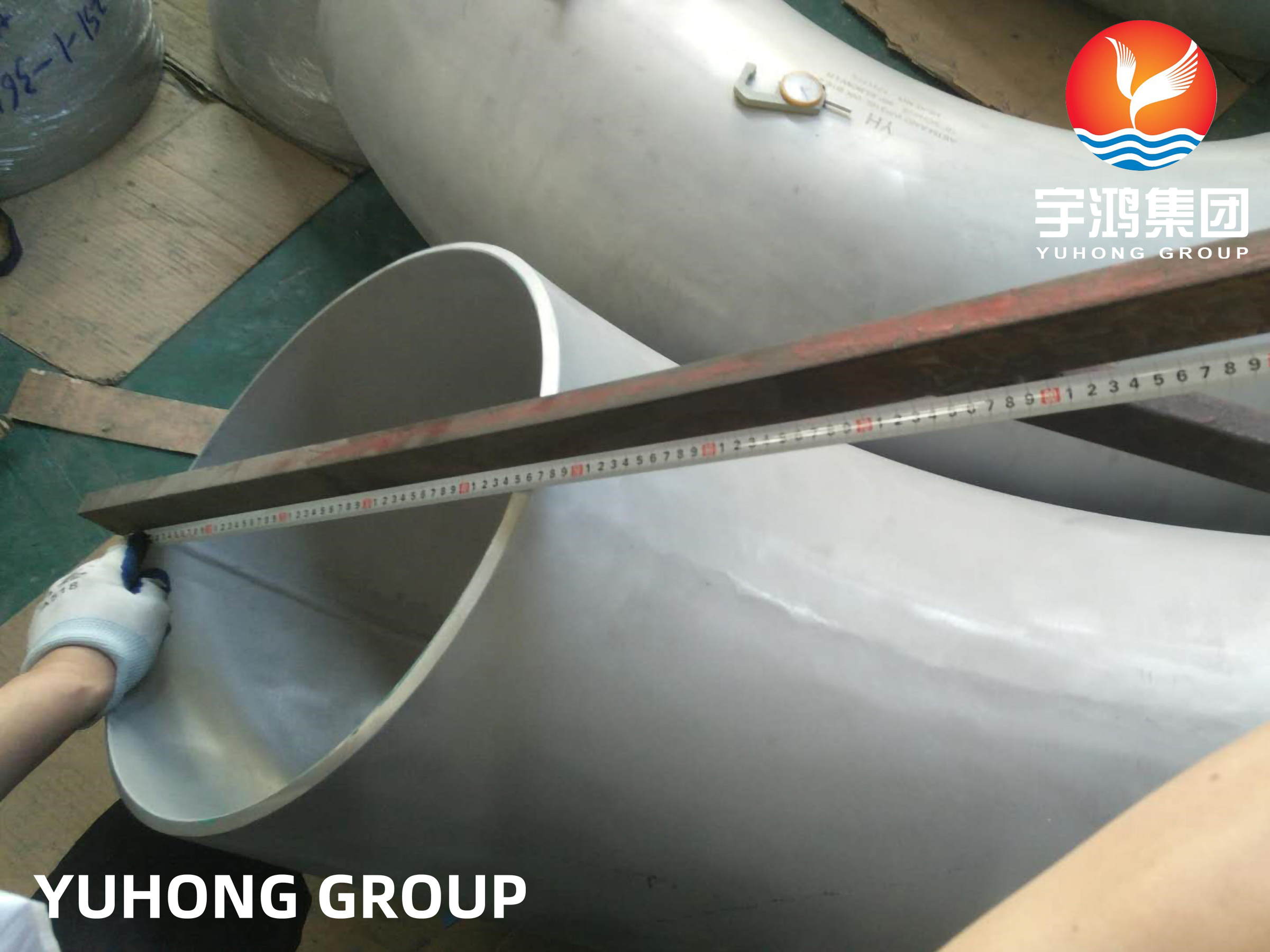

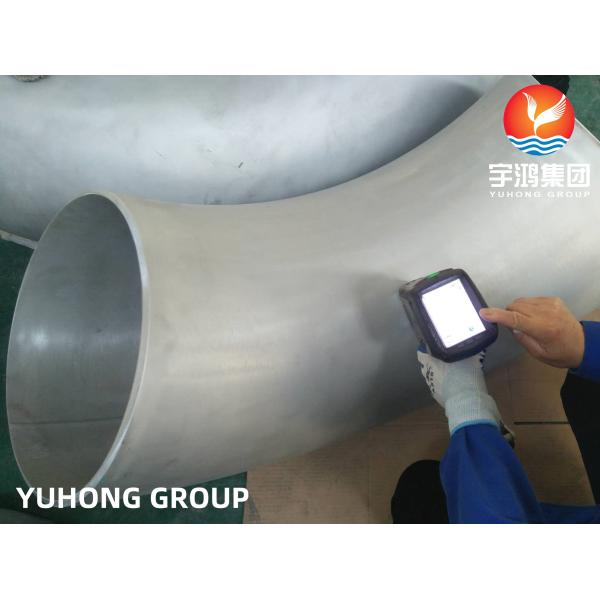

Butt Weld Pipe Fittings ASTM A403 WP316L-WX 90Deg LR Stainless Steel Elbows B16.9
ASTM A403 WP316L stainless steel pipe fittings possess excellent toughness and offers higher creep and stress rupture properties. ASTM A403 WP316L stainless steel elbow works well in high and cryogenic temperatures. They have resistance to pitting and crevice corrosion. WP316L stainless steel is a lower version of WP316 stainless steel alloy. The ASTM A403 WP316L Stainless Steel Pipe Elbow is a common austenitic steel alloy. These Stainless Steel Pipe Elbows are highly resistant to corrosion and can be used in extreme temperatures. The SS316L elbows have good welding and forming properties. These low carbon content stainless steel elbows also have high tensile and yield strength. They are usually used in marine industries, petrochemical and food processing industries.
Specifications:
| Specifications | ASTM A403 / ASME SA403 |
| Grades | WP316L |
| Size | 1/8” NB To 48” NB |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | SCH 5s To SCH XXS |
| Type | Seamless / Welded / Fabricated |
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | EN | JIS | BS | GOST | AFNOR |
| SS316L | 1.4404 / 1.4435 | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
Chemical Composition:
| C | 0.035 |
| Mn | 0-2 |
| Si | 1 |
| P | 0.05 |
| S | 0.02 |
| Cr | 16.5-18.5 |
| Mo | 2-2.5 |
| Ni | 10-13 |
| Fe | Bal. |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | 75000(Psi), 515(Mpa) | 30000(Psi), 205(Mpa) | 35 % |
Applications:
Threaded Ffasteners
Industrial Fabrications
Heat Exchangers
Chemical Process Equipment
Food processing Equipment
Power Generation
Condensers
Gas Processing
Pulp and Paper Industry
Sea Water Equipment
Pharmaceutical Equipment
Petrochemicals
|
