| Categories | Submersible Level Sensor |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | YD323 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | $12-28$/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 200PCS/week |
| Delivery Time: | 7 days |
| Packaging Details: | Carton box |
| Item: | 4-20mA Fuel Tank Level Sensor Oil Level Sensor Diesel Level Gauge For Truck |
| Rated power: | 125mW |
| Alarm switch rated current: | 500mA |
| Wire: | PVC material (optional PA filter tube jacket) |
| Connector: | Amp, Delphi, Tyco, etc. can be selected according to requirements |
| Output signal: | 0~20mA, 4~20mA,0~190Ω, 240~33Ω, or customized according to customer requirements |
| Signal accuracy spacing: | 5mm, 8mm, 10mm, 12mm, 16mm, 21mm |
| Working temperature: | -40 degrees to +85 degrees, the fuel sensor used in special environment can be customized according to customer requirements. |
| Others: | connection mode, alarm position can be customized according to customer needs special level sensor |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

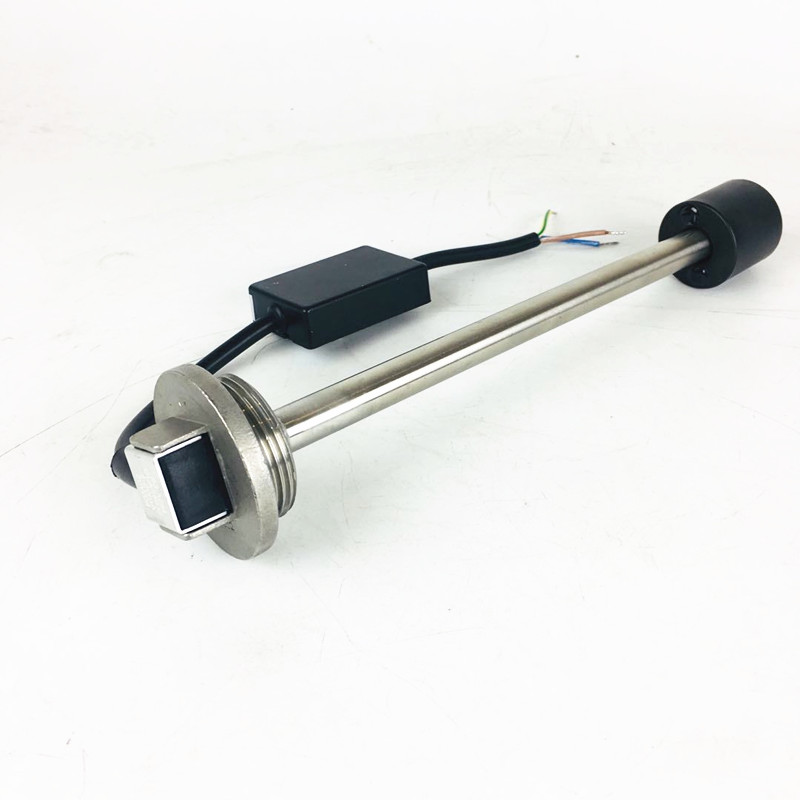

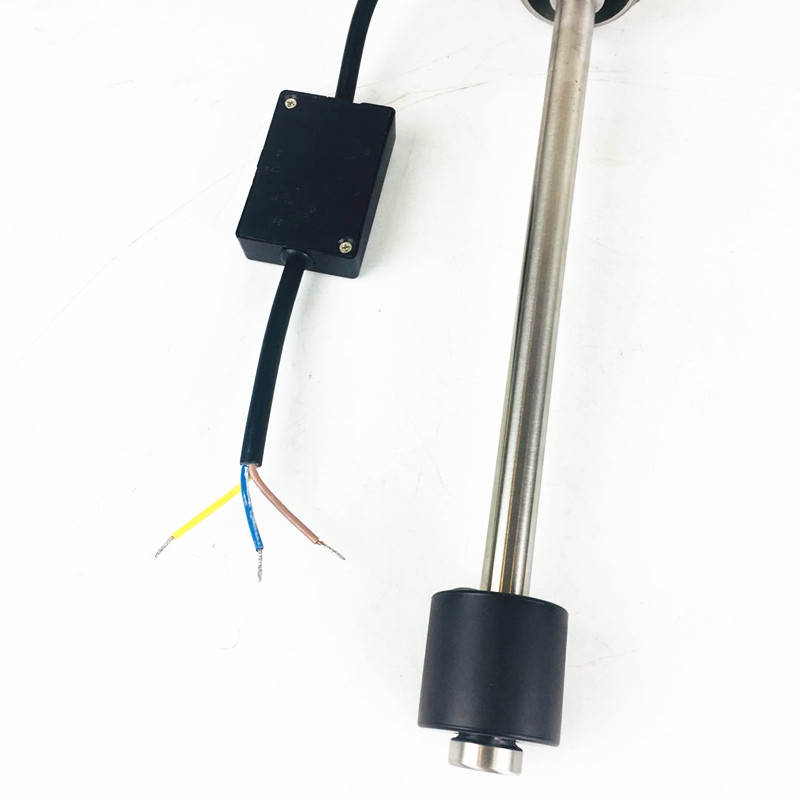

4-20mA Fuel Tank Level Sensor Oil Level Sensor Diesel Level Gauge For Truck
Main function 4-20mA Fuel Tank Level Sensor Oil Level Sensor Diesel Level Gauge For Truck
Detect the fuel level sensor of the fuel tank / water tank.
Parameters 4-20mA Fuel Tank Level Sensor Oil Level Sensor Diesel Level Gauge For Truck
| Rated power | 125mW |
| Alarm switch rated current | 500mA |
| Wire | PVC material (optional PA filter tube jacket) |
| Connector | Amp, Delphi, Tyco, etc. can be selected according to requirements |
| Output signal | 0~20mA, 4~20mA,0~190Ω, 240~33Ω, or customized according to customer requirements |
| or voltage output signal | 0~20mA, 4~20mA,0~190Ω, 240~33Ω, or customized according to customer requirements |
| Signal accuracy spacing | 5mm, 8mm, 10mm, 12mm, 16mm, 21mm |
| Working temperature | -40 degrees to +85 degrees, the fuel sensor used in special environment can be customized according to customer requirements. |
| Others | connection mode, alarm position can be customized according to customer needs special level sensor |
Feature 4-20mA Fuel Tank Level Sensor Oil Level Sensor Diesel Level Gauge For Truck
This product is made of stainless steel SUS316 or SUS304. It has excellent anti-corrosion performance and is directly assembled with the fuel tank mouth. Widely used, all kinds of fuel tanks, water tanks, chemical tanks, alcohol, construction machinery, generator sets, marine and so on.
Basic working principle 4-20mA Fuel Tank Level Sensor Oil Level Sensor Diesel Level Gauge For Truck
The change of liquid level causes the floating bucket to slide up and down along the electron tube, and the magnet in the floating bucket drives the reed switch at different positions in the electronic tube, so that the electronic signal of the internal circuit changes instantaneously, and then through the wire This change is fed back to the meter and finally the meter pointer swings to show the correct level.
|
