| Categories | Oil Pressure Sensor |
|---|---|
| Brand Name: | YunYi |
| Model Number: | YD31 |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | USD26.0/PC-USD46.0/PC |
| Payment Terms: | T/T, Western Union, D/A, D/P |
| Supply Ability: | 1000PCS per month |
| Delivery Time: | 10days |
| Packaging Details: | Standard export carton box 4-20ma absolute gauge smart water pressure transmitter sensor |
| Name: | high temperature transducer hot water pressure sensor price 4-20mA vacuum type purchase smart silicon pressure transmitter |
| range: | 0-20Mpa |
| accuracy: | 0.5% FS |
| power supply: | 24VDC |
| Pressure connection: | 1/2npt |
| Output: | 4-20mA pressure transducer |
| Application: | Chemical Industry |
| Sensor: | Diffused silicon pressure transducer |
| Type: | gauge pressure transmitter |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
high temperature transducer hot water pressure sensor price 4-20mA vacuum type purchase smart silicon pressure transmitt

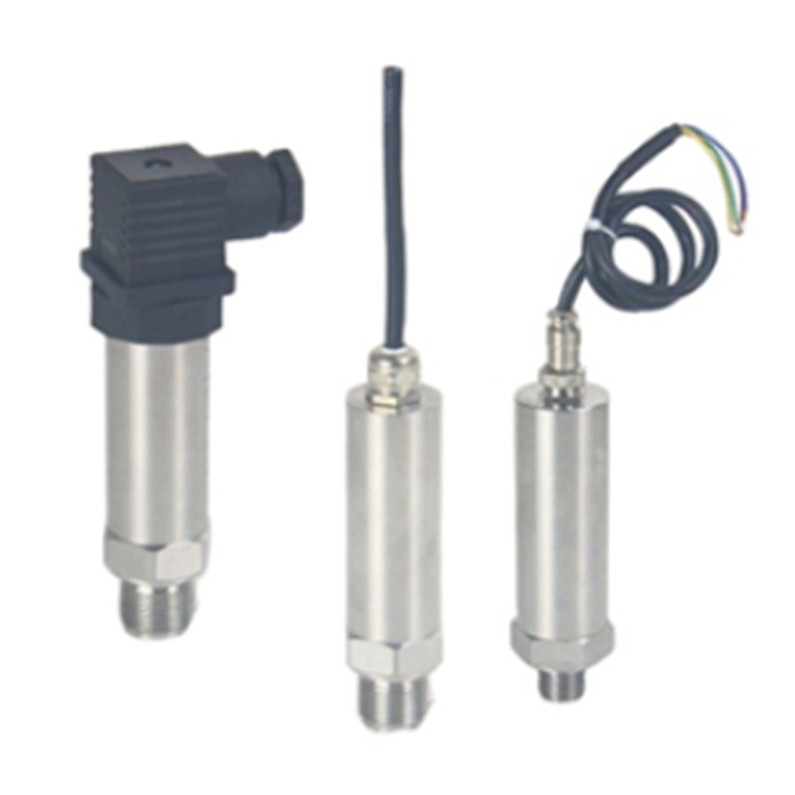

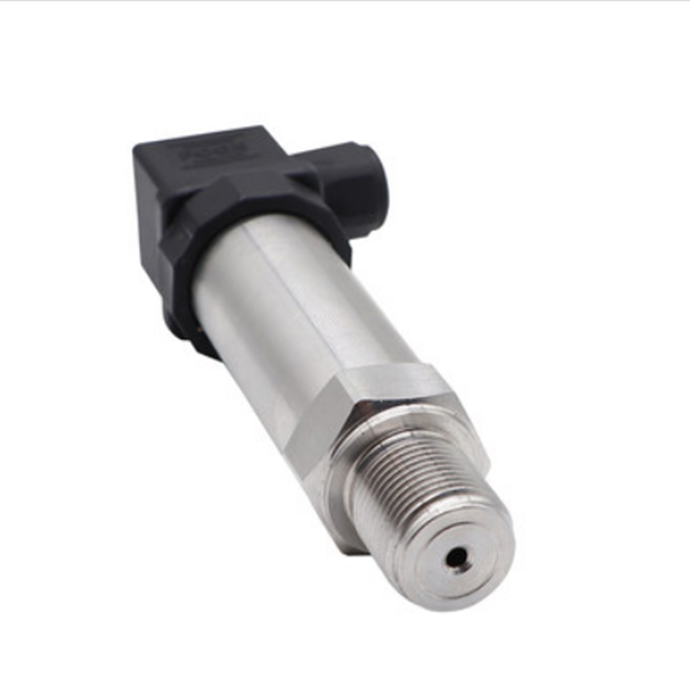

Product description 4-20ma absolute pressure intelligent water pressure transmitter sensor
| Measure Range | -100kPa~0.....10kPa...100MPa |
| Pressure Type | gauge (G), absolute (A), sealed gauge (S) |
| Overpressure | 150%FS |
| Accuracy | 0.2%FS, 0.5%FS |
| Output signal | 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire) |
| Supply | 12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc |
| Temp.coefficient of zero | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Temp.coefficient of span | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Compensated temperature range | -10~+70°C |
| Operating temperature range | -40~+125°C |
| Storage temperature range | -40~+125°C |
| Insulating resistance | ≥100MΩ@100Vdc |
| Load resistance | R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output) |
| Electrical interface | DIN43650, option 1.5m cable connetion |
| Pressure interface | G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request) |
| Material of pressure membrane | 316L stainless steel |
| Material of housing | 1Cr18Ni9Ti stainless steel |
| Response time(10%~90%) | ≤10ms |
| Shock/impact | 10gRMS,(20~2000)Hz/100g,11ms |
| Protection | IP65 |

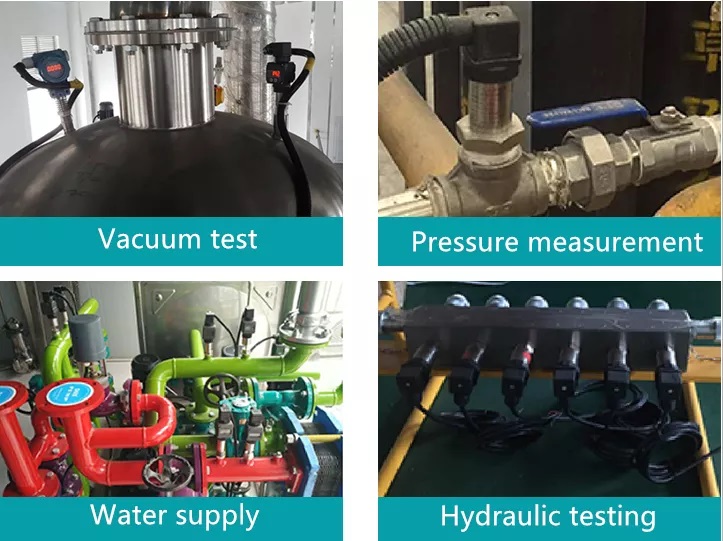

Absolute gauge smart pressure transmitter is widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, pipes and many other industries.
Selection Guide 4-20ma absolute gauge smart water pressure transmitter sensor
| Model YD31 | |||||||
| Pressure Range (0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa | |||||||
| Pressure type G Gauge D Differential A Absolute | |||||||
Output signal K 0-10Vdc V 1-10Vdc | |||||||
Power Supply A1 10~36VDC | |||||||
Electrical Interface B2 Directly cable connection B3 Pin aviation connector | |||||||
Display D1 No display D2 LED display | |||||||
Pressure Interface C3 M20x1.5M C4 G1/2M C5 G1/4M Cx other customized | |||||||
|
