| Categories | Tuning Fork Density Meter |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | / |
| Certification: | / |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $950 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 per week |
| Delivery Time: | 10 works day |
| Packaging Details: | standard |
| Measurement range: | 0~3 g/cm³optional |
| Output: | 4-20 mA signal( four wires) |
| Accuracy: | 0.3% ( actual range) or 0.001 g/cm³ ( choose the max) |
| Resolution: | 0.0001 g/cm³ |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description Fork Density Meter Product Manual
Fork density meter is principle of vibrating density meter with high precision, high applicability via introducing foreign advanced frequency tracking technology. Product design adopts plug-in mounting, widely used in medium density measurement in pipelines, open tank containers and closed tank containers.
Fork density meter sensor is composed of two piezoelectric crystals, one piezoelectric crystal is used for generating vibration, the other piezoelectric crystal is used for measuring vibration, fork sensor built-in temperature sensor, provides temperature compensation.for piezoelectric crystal vibration.

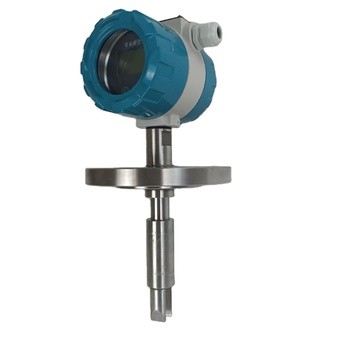

Detailed Images Fork Density Meter Product Manual
Specification Fork Density Meter Product Manual
Measurement range | 0~3 g/cm³optional |
Output | 4-20 mA signal( four wires) |
Accuracy | 0.3% ( actual range) or 0.001 g/cm³ ( choose the max) |
Resolution | 0.0001 g/cm³ |
Max working pressure | 20MPa |
Fork body material | Stainless 316, Hastelloy C22, manganese alloy 400 |
Fork body coating | coating (perfect for hydrophobicity and non-sticking of impurities in liquids) |
Classic installation applicable conditions Fork Density Meter Product Manual
1. The diameter of main pipe is not less than DN100
2. Straight insert pipe inner diameter is more than 50mm
3. Buried depth is 300mm
4. The direction of liquid flow is through fork
5. Flow rate is less than 3m/s
6. Viscosity range: ≤100cP
|
