| Categories | Handheld Barcode Scanner |
|---|---|
| Brand Name: | RAKINDA |
| Model Number: | S2-2 |
| Certification: | CE, FCC, RoHS |
| Place of Origin: | Shenzhen, Guangdong, China |
| MOQ: | 1 pcs |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 100PCS/Week |
| Delivery Time: | Within 5 working days after receiving the balance |
| Packaging Details: | Normal craft paper and foam |
| Resolution: | 1280 Pixels(H) x 1024 Pixels(V) |
| Reading accuracy: | 1D : ≥3 mil ; 2D : ≥5 mil |
| Physical dimension: | 181x 102 x 77 mm |
| Weight: | 150g (cable not included) |
| Degree of protection: | IP65 |

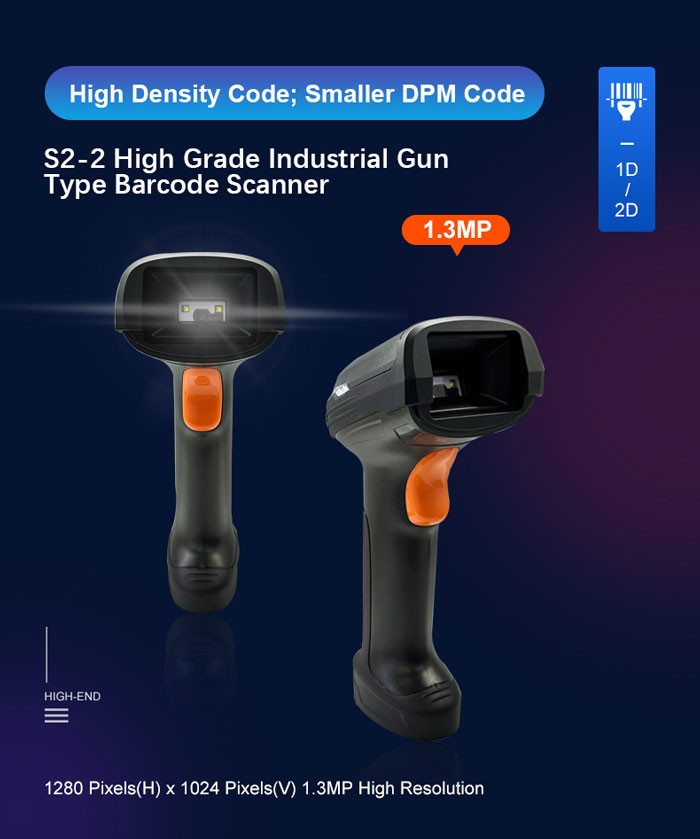

RAKINDA S2-2 Industrial DPM 2D Barcode Scanner to Scan Engraved PDF417 Code on Stainless Steel Surface USB Cable

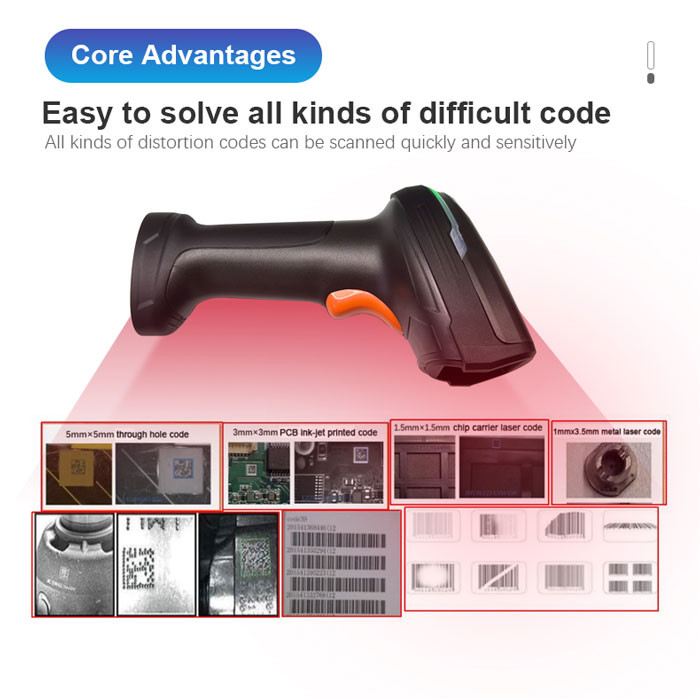

Designed for higher density or smaller DPM codes, it can adapt to a more complex object surface environment, and can also well identify various DPM with unsatisfactory engraving quality. S2-2 loads the most powerful industrial decoding algorithm, with deep AI algorithm learning to ensure that all kinds of DPM barcodes can be smoothly read.
Product Parameters
| Parameters | ||||
| Scanning performance | Resolution | 1280 Pixels(H) x 1024 Pixels(V) | ||
| Illumination | White light | |||
| Focus | S2-1 Green strip； S2-2 Red strip | |||
| Reading mode | Key scanning, Automatic induction scanning | |||
| Decode Capabilities | 1D | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A , Composite Code-B , Composite Code-C | ||
| 2D | Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417,Aztec, Maxicode | |||
| Reading accuracy | 1D : ≥3 mil ; 2D : ≥5 mil | |||
| Typical Depth of Field | Model | S2-1 | S2-2 | |
| Code 39 (3mil) | 55mm~150mm | 40mm~70mm | ||
| Code 39 (5mil) | 45mm~250mm | 30mm~100mm | ||
| Data Matrix (5mil) | 40mm~60mm | 40mm~70mm | ||
| 100%UPCA (13mil) | 40mm~500mm | 30mm~100mm | ||
| Field of view | Level 41° (H),Plumb 35° (V); | |||
| Print contrast | ≥20%(UPC/EAN 100% , PCS 90%) | |||

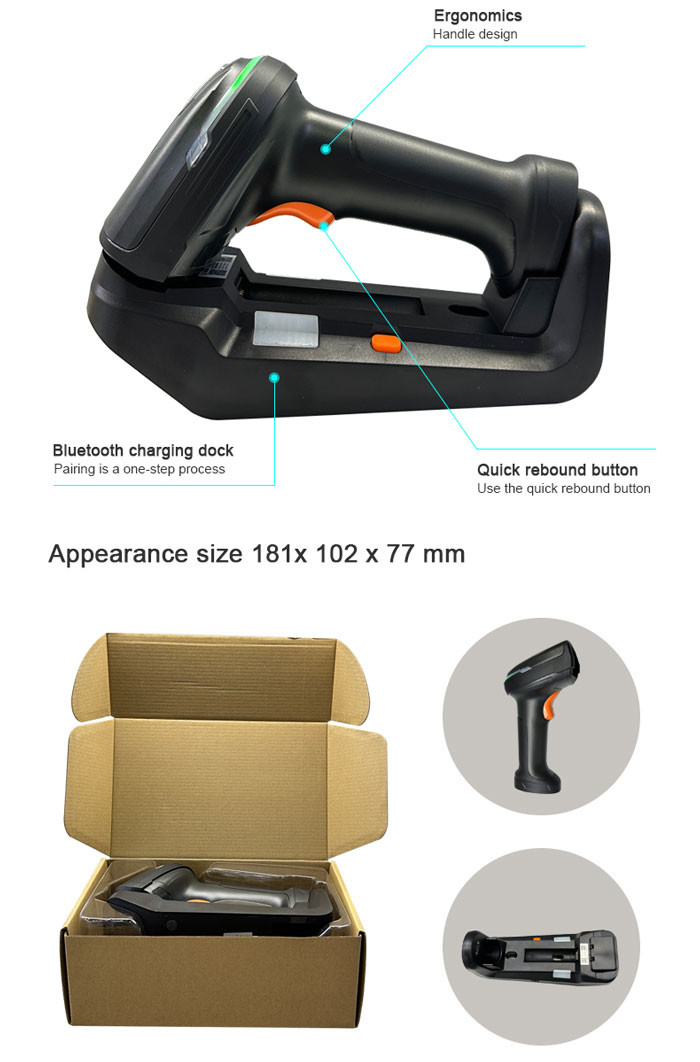

| Dimension | Physical dimension | 181x 102 x 77 mm | ||
| Electrical parameters | Weight | 150g (cable not included) | ||
| Communication interface | USB ,RS-232,Virtual COM Port | |||
| Data cable length | Straighten 2 meters | |||
| Prompt way | Buzzer,LED Indicator light, Vibration motor | |||
| Operating Voltage | DC 5V±5% | |||
| Working current | 300 mA ±5%(Typical value), 400 mA ±5%(Maximum value) | |||
| Stand-by current | 100 mA ±5% | |||
| Environmental parameters | Operating temperature | -20℃~+50℃ | ||
| Storage temperature | -40℃~+70℃ | |||
| Relative humidity | 5%~95%(no condensation) | |||
| Static Protection | ±12 kV(Air discharge),±8 kV (Direct discharge) | |||
| Drop height | 1.8m | |||
| Degree of protection | IP65 | |||
| Regulatory | FCC Part15 Class B,CE,EMC Class B | |||
|
