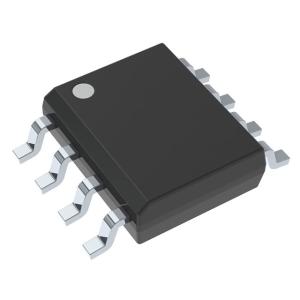

OPA2277UA Electronic IC Chips High Precision OPERATIONAL AMPLIFIERS

Categories Integrated Circuit Chips
Model Number: OPA2277UA
Certification: new & original
Place of Origin: original factory
MOQ: 20pcs
Price: Negotiate
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 9000pcs
Delivery Time: 1 day
Packaging Details: Please contact me for details
Description: General Purpose Amplifier 2 Circuit 8-SOIC
Supply Voltage: 36V
Input Voltage: (V–) –0.7V to (V+) +0.7V
Operating Temperature: - 55°C to +125°C
Storage Temperature: - 55°C to +125°C
Junction Temperature: 150°C
Lead Temperature (soldering, 10s): 300°C
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OPA2277UA Electronic IC Chips High Precision OPERATIONAL AMPLIFIERS


OPA277 OPA2277 OPA4277

High Precision OPERATIONAL AMPLIFIERS


FEATURES

● ULTRA LOW OFFSET VOLTAGE: 10µV

● ULTRA LOW DRIFT: ±0.1µV/°C

● HIGH OPEN-LOOP GAIN: 134dB

● HIGH COMMON-MODE REJECTION: 140dB

● HIGH POWER SUPPLY REJECTION: 130dB

● LOW BIAS CURRENT: 1nA max

● WIDE SUPPLY RANGE: ±2V to ±18V

● LOW QUIESCENT CURRENT: 800µA/amplifier

● SINGLE, DUAL, AND QUAD VERSIONS

● REPLACES OP-07, OP-77, OP-177


APPLICATIONS

● TRANSDUCER AMPLIFIER

● BRIDGE AMPLIFIER

● TEMPERATURE MEASUREMENTS

● STRAIN GAGE AMPLIFIER

● PRECISION INTEGRATOR

● BATTERY POWERED INSTRUMENTS

● TEST EQUIPMENT


DESCRIPTION

The OPA277 series precision op amps replace the industry standard OP-177. They offer improved noise, wider output voltage swing, and are twice as fast with half the quiescent current. Features include ultra low offset voltage and drift, low bias current, high common-mode rejection, and high power supply rejection. Single, dual, and quad versions have identical specifications for maximum design flexibility.


OPA277 series op amps operate from ±2V to ±18V supplies with excellent performance. Unlike most op amps which are specified at only one supply voltage, the OPA277 series is specified for real-world applications; a single limit applies over the ±5V to ±15V supply range. High performance is maintained as the amplifiers swing to their specified limits. Because the initial offset voltage (±20µV max) is so low, user adjustment is usually not required. However, the single version (OPA277) provides external trim pins for special applications.


OPA277 op amps are easy to use and free from phase inversion and overload problems found in some other op amps. They are stable in unity gain and provide excellent dynamic behavior over a wide range of load conditions. Dual and quad versions feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.


Single (OPA277) and dual (OPA2277) versions are available in DIP-8, SO-8, and DFN-8 (4mm x 4mm) packages. The quad (OPA4277) comes in DIP-14 and SO-14 surface-mount packages. All are fully specified from –40°C to +85°C and operate from –55°C to +125°C.


ABSOLUTE MAXIMUM RATINGS(1)

Supply Voltage .................................................................................... 36V

Input Voltage ..................................................... (V–) –0.7V to (V+) +0.7V

Output Short-Circuit(2) .............................................................. Continuous

Operating Temperature .................................................. –55°C to +125°C

Storage Temperature ..................................................... –55°C to +125°C

Junction Temperature ...................................................................... 150°C

Lead Temperature (soldering, 10s) ................................................. 300°C

ESD Rating (Human Body Model) .................................................. 2000V

(Machine Model) ........................................................... 100V


NOTE:

(1) Stresses above these rating may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability.

(2) Short-circuit to ground, one amplifier per package.
