High Accuracy Tilt Inclination MODBUS Sensor 0.0004 Zero Temp Coefficient

High Accuracy MODBUS Tilt Inclination Sensor 0.0004 Zero Temp. coefficient

▶ FEATURES

★ Single / dual axis inclination measurement

★ Measure Range :±1～±90° optional

★ Wide voltage input: 9～36V

★ Wide temperature working: -40～+85℃

★ IP67 protection grade

★ Highly anti-vibration performance >2000g

★ Resolution: 0.001°

★ Water-proof air-plug

★ Output mode RS232/RS485/RS422/TTLare optional

▶ APPLICATION

★ Engineering vehicles automatic leveling

★ Bridge & dam detection

★ Laser equipment position

★ Medical facilities angle control

★ Underground drill posture navigation

★ Railway gauging rule , gauge equipment leveling

★ Precise machine tool level control

★ Geological equipment inclined monitoring

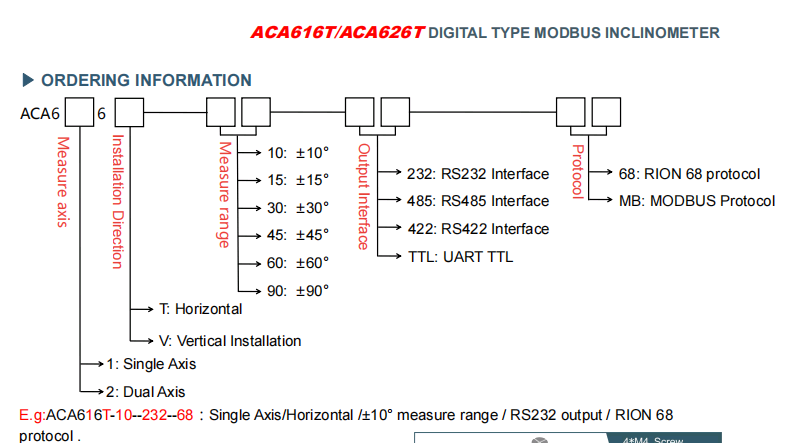

ACA616T/ACA626T	CONDITIONS	PARAMETERS				UNIT
Measure range		±10	±30	±60	±90	°
Measure axis		X/XY	X/XY	X/XY	X/XY	AXIS
Resolution		0.001	0.001	0.001	0.001	°
Measure accuracy		0.003	0.01	0.02	0.03	°
Long term stability		0.01	0.02	0.03	0.04	°
Zero Temp. coefficient	-40~+85℃	±0.0004	±0.0004	±0.0004	±0.0004	°/℃
Sensitivity temp-coeffi	-40~+85℃	≤50	≤50	≤50	≤100	ppm/℃
Power on time		0.5	0.5	0.5	0.5	S
Response frequency		20	20	20	20	Hz
Output rate	5Hz,15Hz,35Hz,50Hz can be setting
output signal	RS232/RS485/RS422/TTL
Communication protocol	Refine 68 protocol / MODBUS protocol
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector

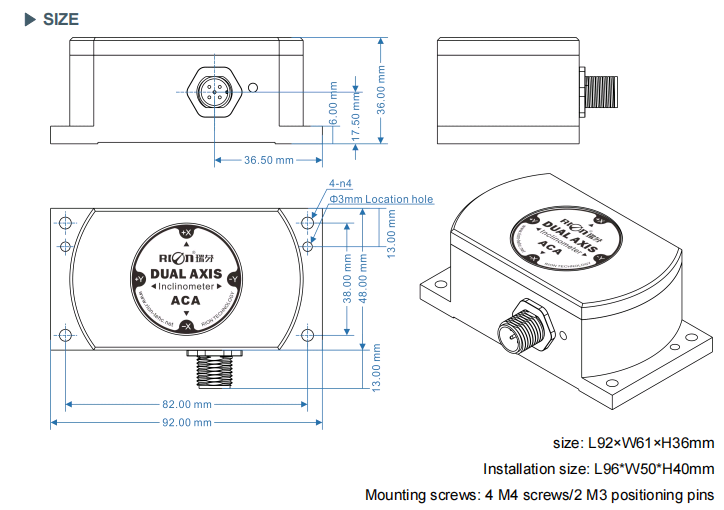

Weight	≤220g(without cable)

Shenzhen Rion Technology Co., Limited(RION for short) is a high-tech company specialized in design and manufacturing MEMS inclinometer, 3D compass. RION has excellent developing team both in software and hardware. In hardware, RION has the ability of manufacture and test advanced inertial navigation and integrated navigation system by equipment such as marble test platform, high-low temperature chamber, super low temperature chamber, single/triple axis turntable, several high precise automatic indexing table, impact-vibration table, 3 axis non-magnetic calibration bench, special vehicle carried dynamic test device and so on. In software, our engineers are composed mainly by professional postgraduates, doctors. we develop the inclinometer, 3D anti-magnet compass etc in China. RION’s business covers the newest technology, tech-equipment and aerospace equipment, new energy, IOT, energy saving and so on. RION’s products are the core parts of automation, intelligence, informationization, digitalization with wide application in engineering machinery, intelligent robot, oil drilling, coal mining, technology equipment, marine surveys, high precise mapping, new energy and so on.

RION is also honored by ISO9001 , 11 software copyright, many products national expertise report, several appearance patent, 2 patent of invention, 7 self-developed core technology.

RION is a Chinese brand with vigor and passion, forging itself to fully self-developed enterprise. Expecting promising future, RION is growing rapidly, providing the best solution in position, attitude and inertial navigation. RION rooted in China, covering the globe, and devote itself to pursuit ever more precise value in position, attitude.
