| Categories | Concrete Mixing Equipment |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Delivery Time: | Within 35 days |
| Packaging Details: | In nude |
| Condition: | New |
| Color: | Optional |
| Weight: | 25000kg |
| Type:: | Self-loading Concrete Cement Mixer |
Diagram of concrete cement mixer truck brand new cement mixer truck
Iveco 5CBM Concrete Mixer Truck Parameters
| Type | Concrete Mixer Truck | |
| Traction Type | 6x4 | |
| Cabin | Model: VEL1253 | |
| lengthen flat roof cabin , one sleeper ,air condition | ||
| LxWxH(mm) | 8875,9125x2500x3950 | |
| Vehicle Main Dimensions | Wheel base(mm) | 3800+1400 |
| Front overhang(mm) | 1435 | |
| Rear overhang(mm) | 2240 | |
| Front/Rear truck(mm) | 2006/1850 | |
| Approach/Departure | 25/15 | |
| Frame section(mm) | 940-865/317(8+8) | |
| Weight | Kerb mass | 13120kg |
| Tatal mass | 25000kg | |
| Max.Drinving Speed(km/h) | 80 | |
| Engine | Brand | WEICHAI |
| Model | C9350C4 | |
| Type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging &inter cooling | |
| Horse Power | 350 HP | |
| Displacment | 8.709L | |
| Max.output | 257kw | |
| Max.torque | 1350N.m@1200-1600rpm | |
| Emission Standard | EURIV | |
| Axle | driving axle ration | 4.80 |
| Rear | 16t ,double reduction | |
| Gearbox | 12JSD160T | |
| Steering | ZF technology | |
| Mixing Volume | 5m³ | |
| Tire | 12.00R20 | |
| Fuel tank capacity(L) | 300(al-alloy) | |
Advantage Of concrete mixer truck
1.Low energy consumption and environmental protection.
2.The hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
Capacity Of concrete mixer truck
The concrete mixer truck includes many models such as 1.5m3,2m3, 3m3 , 5m3 ,
8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any semi tailor made or mixer truck
special chassis as supporting part are available to choose

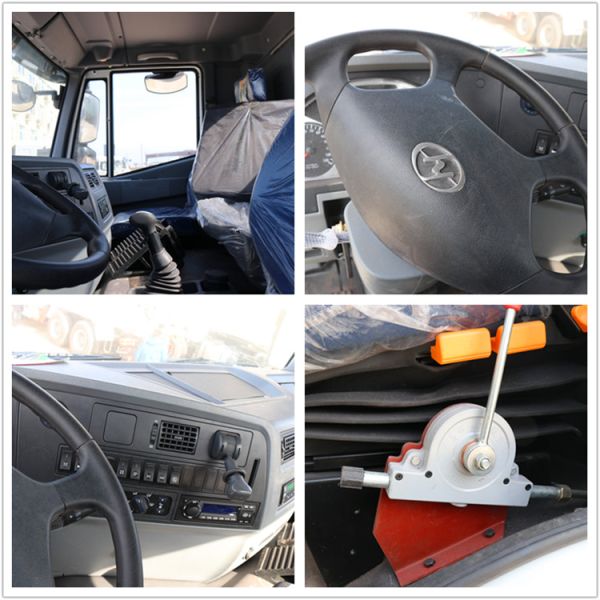

Concrete mixer truck details
|
