1Gbps SFP SMF Optical Transceiver 1310nm 20km LC SFP Transceiver Modules

Description

This SFP transceiver is a high performance, cost effective modules supporting data-rate of 1.25Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

• 1310nm FP laser and PIN photo detector
• Meet SFP MSA and SFF-8472 with LC receptacle
• Digital diagnostic monitoring
• 10KM transmission with SMF
• Hot-pluggable
• Metal enclosure for lower EMI
• +3.3V Single power supply
• Qualified to meet the intent of Bellcore reliability practices
• LVPECL logic interface simplifies interface to external circuitry
• LVTTL logic level RX LOS 1.11 With pull de-latch
• With 9/125 µm single mode fiber (SMF)
• Operate data rate:1.25Gb/s;
• Operate temperature Standard :0 to +70°C,Extended : -20 to +85°C,industrial : -40 to +85°C
• Complies with RoHS directive

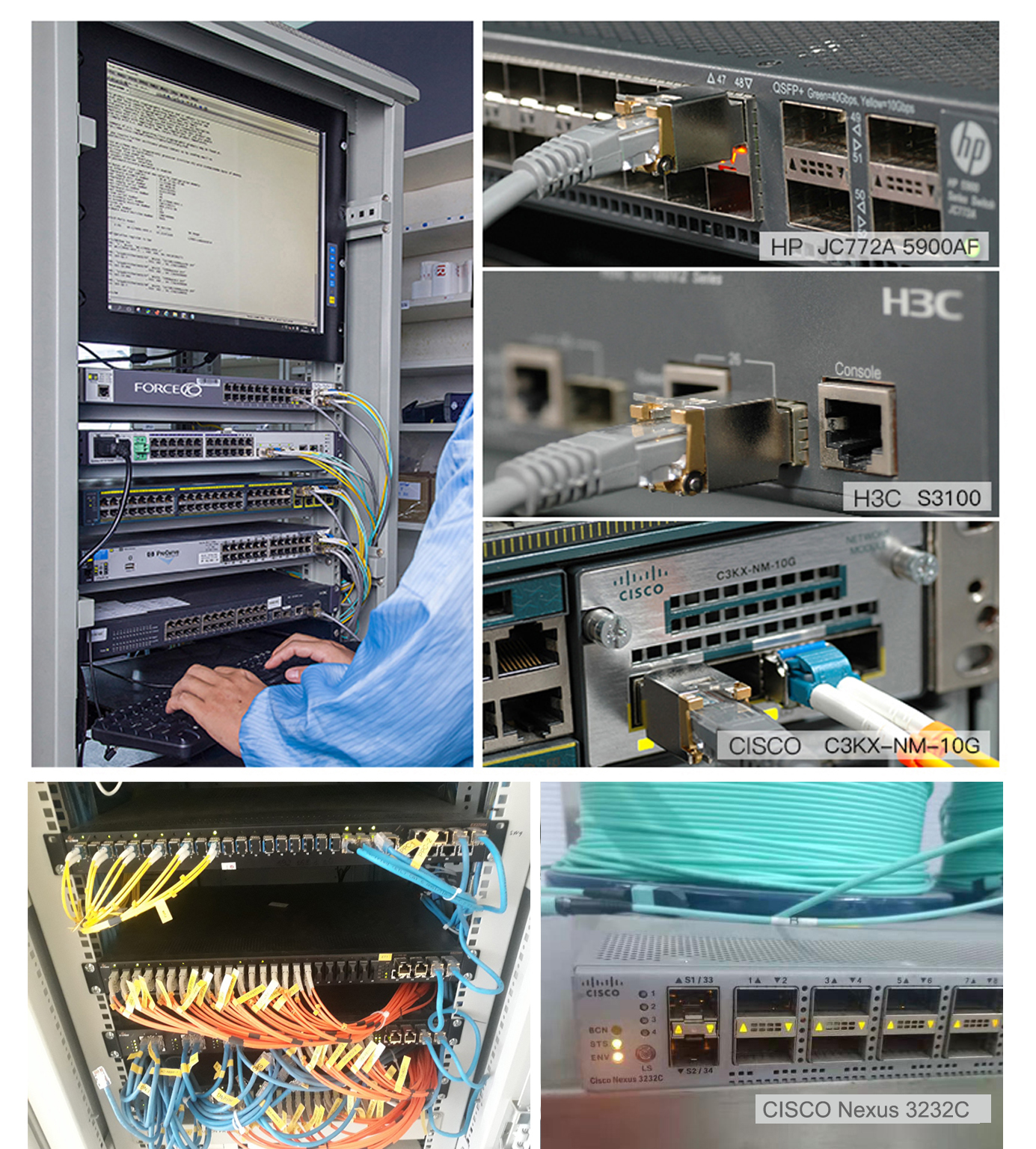

Applications

• Gigabit Ethernet Switches and Routers
• Fiber Channel Switch infrastructure
• XDSL Applications
• Metro Edge Switching

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

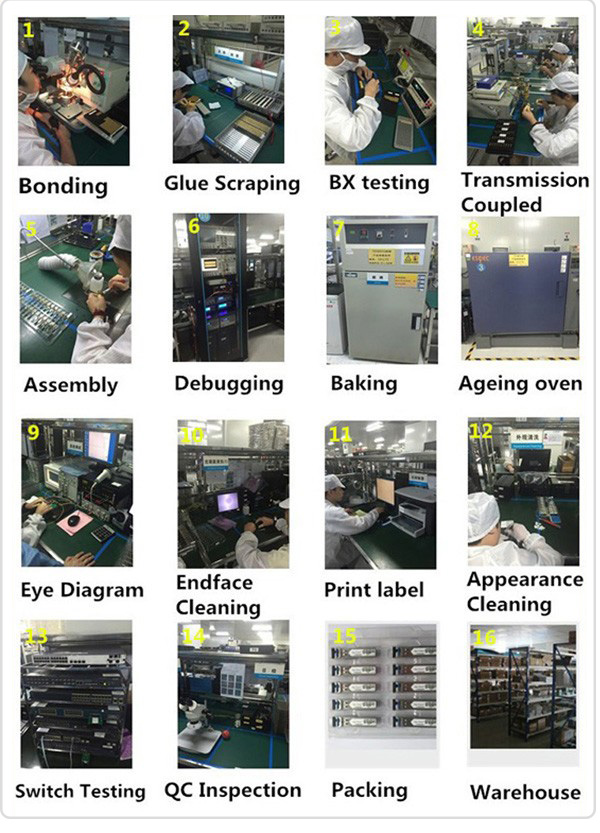

Production Process

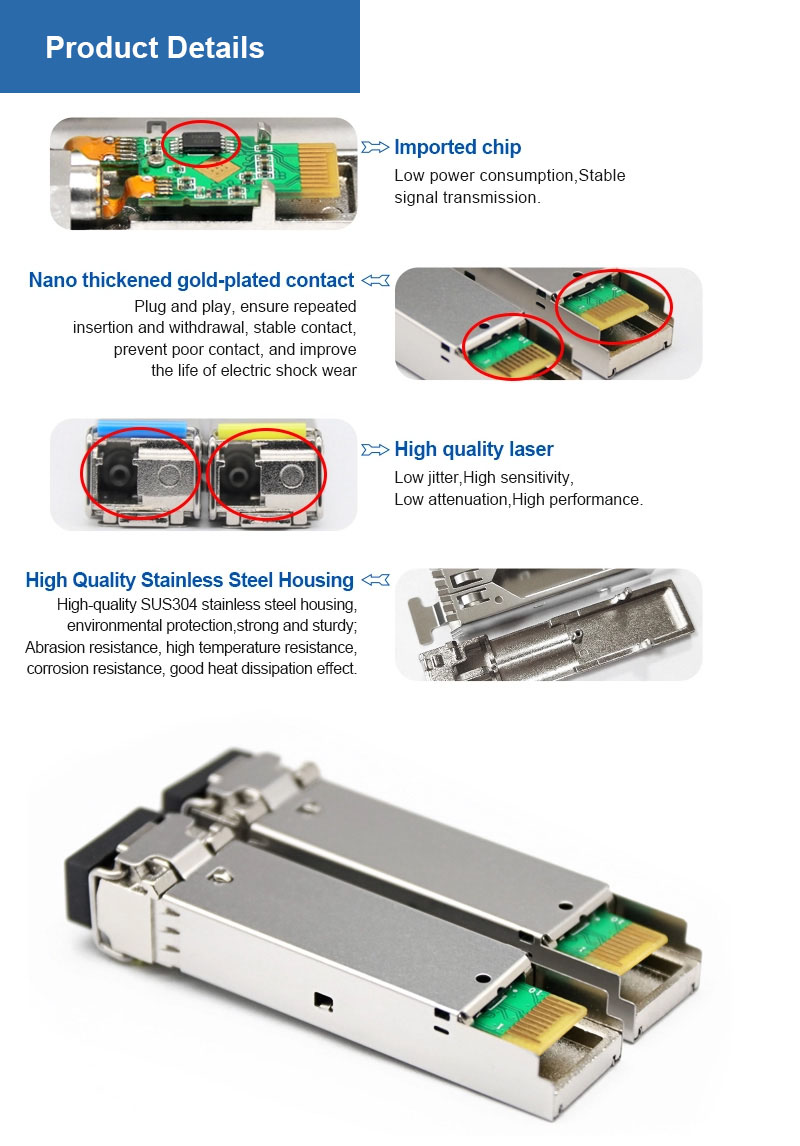

Product Details

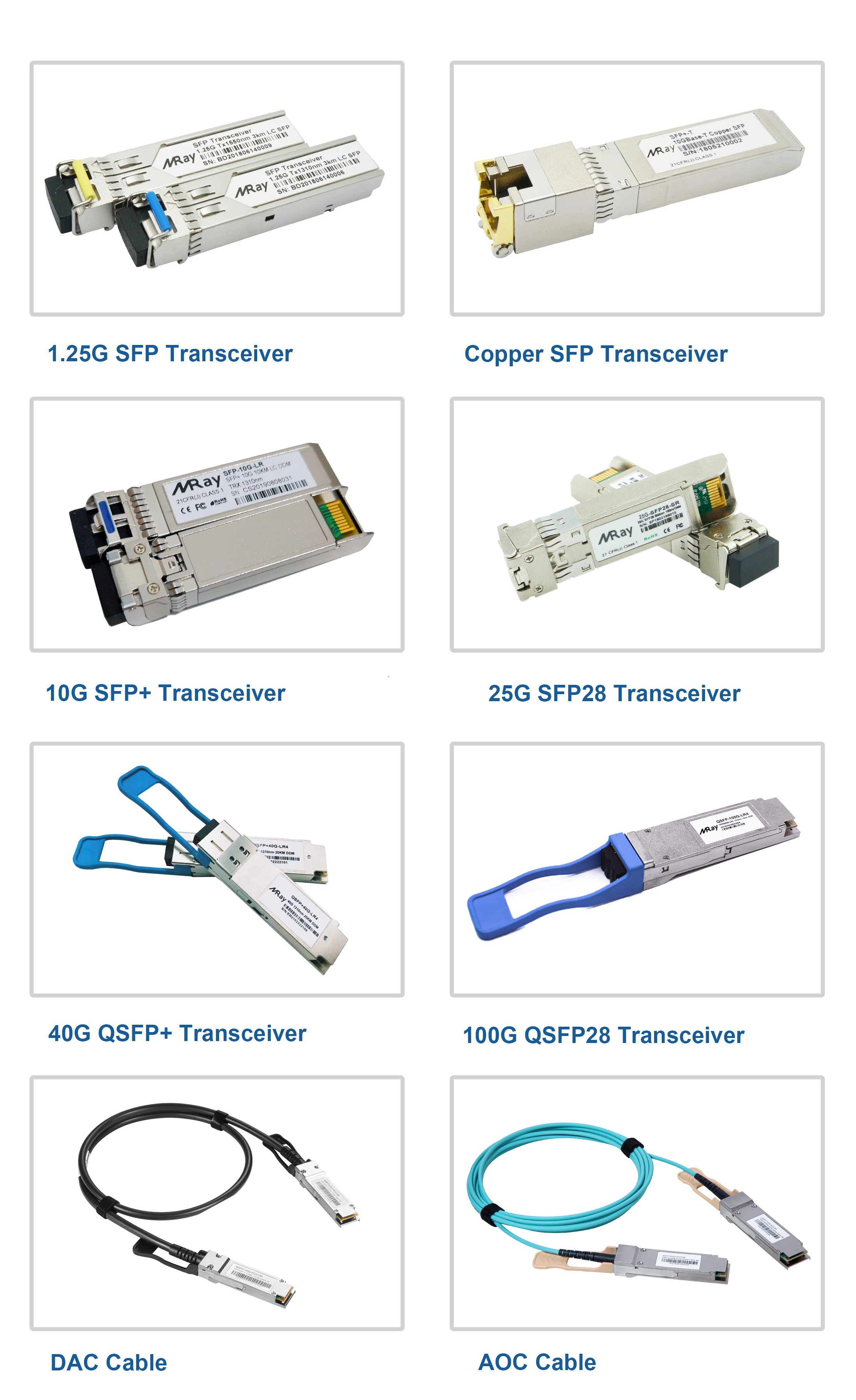

Shenzhen Miray Communication Technology Co., Ltd., established in 2009 with the headquarter in Shenzhen, China, is a professional optical fiber transmission equipment manufacturer which included in R&D, manufacture, sales and service. Our company devotes to provide high-speed data transmission solutions for data centers, cloud computing, transmission and other fields. The active device product line of Miray mainly includes 1G SFP optical module, 10G SFP+ optical module, 10G XFP optical module, 25G SFP28 optical module, 40G QSFP optical module, 100G QSFP28 optical module, high-speed copper cable (DAC) components, high-speed Active Optical Cable (AOC) components.

Miray always regards technological innovation as the core competitiveness of the company, we have established a high-speed optical module R&D center, equipped with a professional modern industrial plant of over 2000 square meters, passed the ISO9001 quality system certification, and has a complete set of test aging equipment and perfect production technology and strict inspection process, and invested in a full set of advanced automated inspection equipment, greatly improved the inspection efficiency and ensured product quality.

Based on the goal of quickly responding to customers’ requirements, and product innovation and quality assurance as the foundation, Miray has gathered a strong and professional technical R&D team. Over the years, Miray has closely followed the development of communication technology of the times, pays close attention to industry trends, and continuously launched new products for mainstream applications in the industry. Miray insists on providing customers not only products but also services. All these enable us to create maximum profits for customers to realize a win-win development.

Our mission is committing to providing first-class fiber network communication products and services and becoming the best partner in the field of optical communication.
