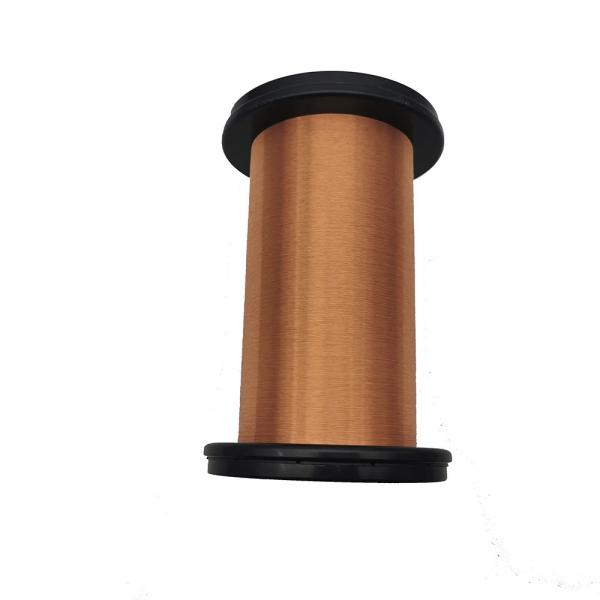

Class B 0.04 - 0.4mm Ultra Fine Enameled Copper Wire FIW Wire

Categories FIW Wire
Brand Name: Ruiyuan
Model Number: 0.04 - 0.4mm
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Place of Origin: China
MOQ: 20 Kilogram/Kilograms
Price: Negotiation
Payment Terms: Negotiation
Delivery Time: 2-15 days
Packaging Details: plastic spools (PT2-PT200), wooden case
Supply Ability: 200 Ton/Tons per Month
Product name: FIW Wire
Conductor material: Copper
Conductor type: Solid
Size: 0.04-0.4mm
Insualtion material: enamel
Port: Tianjin, China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Class B 0.04 - 0.4mm Ultra Fine Enameled Copper Wire FIW Wire

0.04 - 0.4mm FIW WIRE ULTRA FINE ENAMELED COPPER WIRE



Fully insulated (FIW) zero-defect enamelled round copper wire ,class 180,is wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56.The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc. The wire is the best substitute material for TIW(Triple Insulated Wire).


FEATURES AND BENEFITS

  • High thermal class 180;(only 105-130 for TIW);

  • High break down voltage,>15KV;

  • High insulation resistance,6000Vrms,1min;

  • Solderable, 390℃,2s;(no need to peel insulation);

  • High cut-through temperature, 250℃,2s no cut through, Air Reflow(260℃), no crack;

  • Very good winding performance, suitable for high speed winding machine.

  • Small size available, minimum dia 0.040mm, no extruded wire in such size is available;

APPLICATION

- Transformer for measuring instrument
- For communication : High frequency coil for transformer, Coil for power source transformer
- For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
- Coil-micro-motor, electric fan, transformer & etc.


PECIFICATION

bare wire diaToleranceresistance (Ω,20℃)Over all dia (mm)
(mm)(mm)MinMaxFIW6FIW8FIW10
minmaxminmaxminmax
0.040±0.00212.2315.200.0800.0890.1000.109--
0.050±0.0027.9819.5280.0950.1050.1170.127
0.060±0.0025.6146.5260.1130.1250.1390.151--
0.070±0.0034.0504.8900.1230.1350.1490.1610.1750.187
0.080±0.0033.1333.7030.1370.1500.1650.1780.1930.206
0.090±0.0032.4952.9000.1490.1620.1770.1900.2050.218
0.100±0.0032.0342.3330.1650.1800.1970.2120.2290.244
0.120±0.0031.4261.6040.1950.2120.2310.2480.2670.284
0.160±0.0030.81220.89060.2500.2710.2940.3150.3380.359
0.180±0.0030.64440.70070.2780.3010.3260.3490.3740.397
0.200±0.0030.52370.56570.3030.3270.3530.3770.4030.427
0.250±0.0040.33450.36280.3730.4020.4330.4620.4930.522
0.300±0.0040.23350.25060.4320.4620.4940.524--
0.350±0.0040.17220.18340.4860.5160.5480.578--
0.400±0.0050.13160.14070.5410.5710.6030.633--

Weight vs length

Bare wire diaFIW weight per Km(KG/km)FIW length per Kg (km/KG)
(mm)FIW6FIW7FIW8FIW9FIW10FIW6FIW7FIW8FIW9FIW10
0.0700.0460.0480.0530.0570.06121.8020.8019.0017.5016.50
0.0800.0570.0630.0660.0710.07717.4016.0015.0014.0013.00
0.0900.0710.0770.0810.0860.09114.2013.0012.4011.7011.00
0.1000.0890.0940.1010.1070.11311.3010.609.909.408.80
0.1200.1270.1330.1420.1510.1607.907.507.006.606.30
0.1600.220.2320.2440.2570.2714.564.314.103.903.70
0.2000.3370.3530.3700.3880.4052.972.842.712.582.48
0.2500.5240.5470.5720.5990.6271.911.831.751.671.60
0.3000.7380.7630.7940.824-1.361.311.261.22-
0.3500.9801.0201.0471.086-1.020.980.960.92-
0.4001.2681.3011.336--0.790.770.75--
0.4501.5811.6171.655--0.640.620.61--
0.5001.9682.023---0.510.50--
