| Categories | Rectangular Copper Wire |
|---|---|
| Brand Name: | Ruiyuan |
| Model Number: | 2.0*0.1mm |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Place of Origin: | China |
| MOQ: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Delivery Time: | 2-15 days |
| Packaging Details: | Carton |
| Product Name: | Rectangular enameled copper wire |
| Thermal rating: | 220 |
| Insulation Material: | AIW |
| Width: | 2.0mm |
| Thickness: | 1.0mm |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

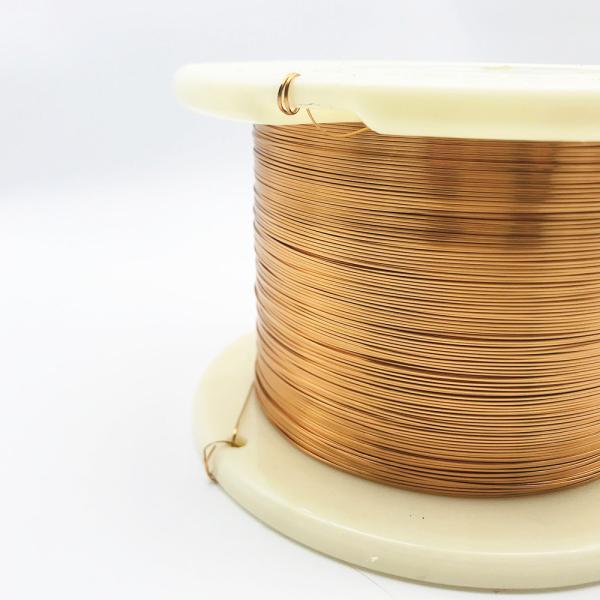

Amide imide 2.0*0.1mm 220 Enameled Rectangular Copper Wire Flat Magnet Winding Wire For Motor
We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.
| Characteristics | Standard | Test Result | |
| Appearance | Smooth Equality | Smooth Equality | |
| Conductor Diameter | Width | 2±0.060 | 1.982 |
| Thickness | 1±0.060 | 0.981 | |
| Thickness Insulation | Width | 0.02 | 0.055 |
| Thickness | 0.03 | 0.064 | |
| Overall Diameter | Width | 2.1 | 2.037 |
| Thickness | 1.05 | 1.045 | |
| Pinhole | ≤3hole/m | 0 | |
| Elongation | ≥30 % | 39 | |
| Flexibility and Adherence | No crack | No crack | |
| Conductor Resistance (Ω/km at 20℃) | ≤10.27 | 9.53 | |
| Breakdown Voltage | ≥0.7KV | 2.3KV | |
| Heat shock | No Crack | No Crack | |
| Conclution | Pass | ||
|
